How Do Material, Weight, Width, Weave, Finish, and Coating Govern Thanksgiving Canvas Projects?

Matching all seven textile specification parameters—material composition, areal weight (oz/sq yd and GSM) or yarn denier, bolt width, weave geometry, mill finish, surface coating, and target end use—determines whether a Thanksgiving project lies flat across a banquet table, repels acidic cranberry spills, or supports 45 pounds of split hickory firewood. Most holiday DIY guides fail because they treat “canvas” as a single generic craft fabric, ignoring the structural difference between a pliable 7 oz single-fill cotton duck (237 GSM) and a rigid 18 oz Number 8 plied cotton duck (610 GSM).

As a wholesale fabric supplier and custom textile-production partner in Auburn, Georgia, we evaluate every holiday project substrate using ASTM D3776 mass-per-unit-area standards ($1\text{ oz/sq yd} = 33.9057\text{ GSM}$). Single-fill ounce ducks weave two warp yarns over a single weft yarn in a 1×1 plain weave, delivering supple drape for table runners, placemats, and stenciled banners. Numbered ducks (#12, #10, #8) and two-ply Army Ducks use multi-ply twisted cotton yarns in both warp and weft directions, creating dense basket-plain weaves for freestanding bread warmers, insulated pie totes, and wide-format archival wall scrolls. Whether you are ordering fabric swatches, cut yardage for a home dining room, or full-roll purchasing paired with our in-house digital fabric and wallpaper printing, precision roll slitting, custom coloring, pattern digitizing, and cut-and-sew finished goods, Table 1 maps the exact specification for each build.

Using Table 1 as a pre-purchase specification checklist prevents the two most costly holiday fabrication mistakes: selecting stiff plied numbered duck for draped table linens that refuse to miter cleanly, or choosing lightweight 7 oz single-fill duck for load-bearing carriers that fail at the handle seams.

Which Cut-and-Sew and Custom-Printed Canvas Projects Upgrade the Thanksgiving Dining Table?

Cut-and-sew and custom-printed Thanksgiving tabletop projects perform best when built from 10 oz single-fill cotton duck (339 GSM) for flat-lying runners and placemats, 14.73 oz #10 water-repellent duck (500 GSM) for dining chair slipcovers, and 18 oz #8 plied duck (610 GSM) for freestanding bread baskets. Unlike lightweight 4 oz cotton poplin that slides across polished wood tables or synthetic satin that snags on serving utensils, medium-to-heavyweight cotton duck provides high surface friction and natural thermal insulation.

Project 1: Mitered-Corner Thanksgiving Table Runner in 10 oz Natural Single-Fill Cotton Duck

Material: 100% Ring-Spun Cotton | Weight: 10.0 oz/sq yd (339 GSM) | Width: 63 in | Weave: 1×1 Single-Fill Plain Weave | Finish: Unbleached Natural Greige | Coating: Uncoated Breathable | End Use: 108-in Dining Table Centerpiece Runner

A 10 oz single-fill cotton duck table runner anchors the Thanksgiving dining table with a warm, unbleached cellulosic weave that buffers wood finishes against serving platters up to 200°F. When we cut table runners on our Auburn, Georgia production tables, we specify 10 oz natural single-fill cotton duck canvas in a 63-inch width because a single 3.25-yard cut yields three full-length 18-inch × 108-inch runners along the warp grain with zero center piecing seams. For hospitality brands and event designers ordering full rolls, our precision roll slitting department can slit 63-inch bolts directly into three 20.5-inch-wide continuous coils for rapid hemming.

• Cut Dimensions: For an 84-inch dining table with a 12-inch overhang at each end, cut a pre-shrunk panel measuring 20.5 inches wide by 110.5 inches long (allowing a 0.25-inch first turn and a 1.0-inch finished hem on all four sides).
• Mitered Corner Execution: Press all four edges inward by 0.25 inches, then press again by 1.0 inch using steam and a hardwood tailor’s clapper. Unfold the outer 1.0-inch fold, align each corner diagonally at 45 degrees where the press creases intersect, stitch across the diagonal line at 9 stitches per inch (SPI) with a 90/14 denim needle and Tex 40 core-spun polyester thread, trim the seam allowance to 0.25 inches, and turn right-side out.

Project 2: Custom Digitally Printed Botanical Placemats and Menu Cards on 10 oz Bleached Duck

Material: 100% Ring-Spun Cotton | Weight: 10.0 oz/sq yd (339 GSM) | Width: 58–60 in | Weave: 1×1 Single-Fill Plain Weave | Finish: Scoured & Bleached | Coating: Heat-Cured Digital Pigment Ink | End Use: Washable Holiday Placemats & Menu Cards

Custom digitally printed 10 oz bleached cotton duck placemats combine the crisp graphic fidelity of fine letterpress stationery with the washable durability of a 339 GSM woven cotton textile. Through our in-house custom digital pigment printing on cotton duck yardage, home makers, interior designers, and restaurant buyers upload 300 DPI artwork containing autumn botanical illustrations, handwritten family recipes, or personalized Thanksgiving dinner menus nested across a 58-inch printable width. Our print-to-production team also produces coordinating custom wallpaper printing on woven textile wallcovering substrates for dining room accent walls and seasonal hospitality installations.

• Yield Per Linear Yard: One linear yard of 58-inch-wide custom-printed 10 oz cotton duck yields eight 14-inch × 19-inch placemats plus eight 5-inch × 8-inch fringed keepsake menu cards tied around cloth napkins.
• Edge Finishing: For a reversible two-ply placemat, pair the printed 10 oz cotton duck face with a backing of 7 oz natural cotton duck (237 GSM), stitch right-sides together with a 0.5-inch seam allowance, turn, press, and topstitch 0.125 inches from the perimeter. For a fringed botanical finish, stitch a perimeter lock-seam 0.5 inches from the raw edge and pull the outer warp and weft yarns by hand.

Project 3: Spill-Resistant Dining Chair Slipcovers in 59-Inch #10 Water-Repellent Cotton Duck

Material: 100% Plied Cotton | Weight: 14.73 oz/sq yd (#10 Duck, 500 GSM) | Width: 59 in | Weave: 2×2 Plied Numbered Duck | Finish: Vat-Dyed Autumn Tones | Coating: Water-Repellent & Antimicrobial (WRAM) | End Use: Dining Chair Slipcovers

Protecting upholstered dining room chairs from cranberry sauce, red wine, and turkey gravy requires a heavy plied cotton fabric treated with a hydrophobic surface barrier. We specify 59-inch water-repellent and antimicrobial #10 dyed cotton duck (14.73 oz/sq yd, 500 GSM) for seasonal slipcovers because its two-ply warp and weft structure resists seam slippage under seated loads while beading liquid spills on the surface for immediate blotting. Unlike stiff PVC-backed patio covers, WRAM-finished #10 cotton duck retains breathable natural cotton hand-feel for indoor dining comfort.

• Pattern & Digitizing Support: Home sewists can draft a two-piece Parson’s chair cover secured with 1-inch cotton herringbone twill ties at the rear legs for quick removal between dinner and dessert. For furniture brands and institutional banquet buyers, our pattern digitizing and cut-and-sew production team converts physical chair templates into nested CAD cut files for multi-chair production runs.
• Seam Construction: Overlock or serge all interior cut edges before joining main seat and backrest panels with a 100/16 denim needle and Tex 70 bonded polyester thread at 8 SPI.

Project 4: Structured Bread and Roll Warming Baskets in #8 Heavyweight Plied Duck

Material: 100% Plied Cotton | Weight: 18.0 oz/sq yd (#8 Duck, 610 GSM) | Width: 58–60 in | Weave: Multi-Ply Numbered Duck | Finish: Unbleached Natural or Custom Dyed | Coating: Uncoated Steam-Breathable | End Use: Freestanding Roll Warming Basket

An 18 oz Number 8 plied cotton duck bread basket stands upright on the Thanksgiving buffet without plastic or cardboard inserts while allowing excess steam to vent so hot dinner rolls and sourdough boules never turn soggy. At 610 GSM, Number 8 duck provides the highest flexural rigidity of any domestic-sewable cotton canvas, holding crisp 90-degree boxed corners even after repeated folding for flat drawer storage.

• Cut & Box-Corner Assembly: Cut one 13-inch × 13-inch outer shell square from 18 oz #8 cotton duck and one matching 13-inch × 13-inch inner lining square from pre-shrunk 10 oz single-fill cotton duck (339 GSM). Excise 3-inch × 3-inch squares from all four corners of both panels, stitch the vertical and bottom corner seams at a 0.5-inch seam allowance using a 110/18 denim needle and Tex 70 bonded polyester thread, nest the lining inside the shell, topstitch around the upper rim, and fold the top 2 inches outward to form a contrasting cuff.
• Thermal Warming Insert: Sew a removable 6.5-inch × 6.5-inch square pillow from 10 oz natural cotton duck filled with 1.5 pounds of whole food-grade flaxseed or dried cherry pits; warming the insert in a microwave for 60 seconds keeps dinner rolls at 140°F–145°F for 45 minutes.

How Do You Build Waxed and Heavy-Duty Canvas Carriers for Thanksgiving Travel and Hearth Hosting?

Transporting hot Thanksgiving pies, 9×13-inch ceramic casseroles, chilled wine bottles, and split hardwood logs requires high-tensile plied cotton duck ranging from 14.5 oz finished waxed army duck (492 GSM) to 18 oz Number 8 plied duck (610 GSM). Lightweight promotional tote bags (5 oz to 6 oz plain weave) stretch on the bias and tear at the handle bar-tacks under concentrated corner loads, causing pie crusts to crack and hot gravy or fruit fillings to spill during transit.

Project 5: Insulated Thanksgiving Pie and Casserole Tote in 60-Inch Field Tan Waxed Army Duck

Material: 100% Combed 2-Ply Cotton | Weight: 10.10 oz base / 14.5 oz waxed (492 GSM) | Width: 60 in | Weave: Tight Two-Ply Army Duck | Finish: Vat-Dyed Field Tan | Coating: Paraffin & Beeswax Impregnated | End Use: Insulated Pie & Casserole Carrier

A horizontal double-handle pie and casserole carrier built from 60-inch Field Tan waxed army duck canvas keeps 9-inch deep-dish pies and 9×13-inch stoneware bakers level during car travel while repelling rain, sleet, and accidental filling drips. Army duck is woven from fine, tightly twisted two-ply combed cotton yarns at a higher thread count than standard ounce duck, locking the paraffin-and-beeswax formula inside the fiber matrix.

• Three-Layer Thermal & Wax-Protection Stack: Because paraffin and beeswax coatings soften above 125°F–135°F, never place a 375°F oven dish directly against waxed canvas. Construct the carrier with an outer shell of 14.5 oz waxed army duck, a middle core of needle-punched aluminized polyester thermal batting, a 0.25-inch removable cork trivet base, and an inner lining of unbleached 10 oz single-fill cotton duck (339 GSM).
• Food Safety Compliance: Per USDA Food Safety and Inspection Service (FSIS) guidelines, cooked holiday dishes must remain above 140°F if held longer than 2 hours. Our three-layer waxed army duck and thermal batting stack keeps a 185°F casserole above 142°F for 95 minutes in 50°F outdoor temperatures.

Project 6: Two-Bottle Holiday Wine and Cider Bag in 14.5 oz Waxed Army Duck

Material: 100% Combed 2-Ply Cotton | Weight: 10.10 oz base / 14.5 oz waxed (492 GSM) | Width: 60 in | Weave: Tight Two-Ply Army Duck | Finish: Vat-Dyed Oak or Olive | Coating: Paraffin & Beeswax Impregnated | End Use: Padded Two-Bottle Wine & Cider Tote

A two-bottle holiday wine and sparkling cider tote sewn from 14.5 oz waxed army duck (492 GSM, 60-inch width) creates a water-repellent host gift that develops rich amber crease marks (patina) with every folding cycle. Unlike paper gift bags that rip when dampened by condensation on chilled Sauvignon Blanc or hard cider bottles, waxed army duck resists moisture absorption and supports dual 750 mL glass bottles with a wide safety margin.

• Panel Cut List & Padded Divider: Cut one main exterior body panel measuring 15 inches × 28 inches from 14.5 oz waxed army duck and one matching interior lining panel from 10 oz natural cotton duck (339 GSM). Construct a center T-divider from two layers of 10 oz cotton duck quilted around 4 oz needle-punched cotton batting so the two glass bottles cannot clink together during transit.
• Handle & Rivet Hardware: Attach two 24-inch handles cut from 1.25-inch heavy cotton webbing or 9 oz vegetable-tanned bridle leather using a 100/16 denim needle, Tex 70 bonded polyester thread, and #9 solid brass rivets and burrs set 0.75 inches below the top cuff.

Project 7: Riveted Fireplace Log Carrier in 18 oz Number 8 Olive Drab Cotton Duck

Material: 100% Plied Cotton | Weight: 18.0 oz/sq yd (#8 Duck, 610 GSM) | Width: 58 in | Weave: Multi-Ply Numbered Duck | Finish: Vat-Dyed Olive Drab | Coating: Uncoated Spark-Resistant | End Use: Hearth Firewood Log Tote

An open-ended fireplace log carrier crafted from 18 oz Number 8 cotton duck (610 GSM, 58-inch width) hauls 35 to 50 pounds of rough-barked white oak, hickory, or birch from outdoor woodpiles to indoor Thanksgiving hearths without snagging or puncturing. Unlike synthetic polypropylene or nylon tarps that melt into hot plastic droplets upon contact with stray hearth embers, 100% cotton #8 duck chars slowly without thermoplastic melting.

• Continuous Under-Belly Webbing Architecture: Cut a 24-inch × 44-inch body panel from 58-inch Number 8 Olive Drab or Navy cotton duck and finish all four perimeter edges with a double-folded 0.75-inch hem stitched at 7 SPI using a 110/18 denim needle and Tex 90 bonded polyester thread. Rather than terminating the handles at the top rim, stitch one continuous 96-inch loop of 1.5-inch heavy cotton webbing completely underneath the belly of the carrier in two parallel tracks spaced 12 inches apart, reinforcing all four top exit points with a 1.5-inch box-X stitch and a #9 solid copper rivet.

Project 8: Chef’s Carving Apron in 12 oz Brushed Bull Denim and Waxed Duck

Material: 100% Ring-Spun Cotton | Weight: 12.0 oz/sq yd (407 GSM) | Width: 59 in | Weave: 3×1 Right-Hand Bull Denim Twill | Finish: Sanforized & Brushed | Coating: Uncoated Body / Waxed Duck Pockets | End Use: Turkey Carving & Basting Apron

A Thanksgiving chef’s carving and basting apron constructed from 12 oz sanforized brushed cotton bull denim (407 GSM, 59-inch width, 3×1 right-hand twill weave) paired with 14.5 oz waxed army duck chest and hip pockets balances all-day drape with targeted grease defense. While plain-weave #10 duck can feel stiff against the waist during a six-hour turkey roast, 3×1 twill bull denim bends fluidly with torso movement while blocking hot pan splatters.

• Ergonomic Cross-Back Strap System: Cut a 28-inch × 34-inch contoured bib apron body from 12 oz brushed bull denim, finish the curved armscyes with 1-inch bias-slit cotton twill tape, and install #2 spur brass grommets at the upper bib corners and waist corners. Thread two 60-inch lengths of 1-inch cotton webbing in an X-pattern across the shoulders so the apron’s weight rests on the trapezius muscles rather than pulling on the neck.
• Water-Repellent Tool Pockets: Stitch a dual-slot meat thermometer and carving-fork chest pocket plus a divided lower towel pocket cut from 14.5 oz waxed army duck so basting drips wipe clean with a damp cloth.

What Are the Best Stretched, Slit-Roll, and Mounted Artist Canvas Projects for Thanksgiving Decor?

Archival stretched, slit-roll, and panel-mounted artist canvas projects for Thanksgiving require unprimed or gesso-primed #12 cotton duck (11.5 oz/sq yd, 390 GSM) and #10 cotton duck (14.73 oz/sq yd, 500 GSM) sourced from wide-format 60-inch to 120-inch rolls. Retail discount craft boards rely on loose 4 oz poly-cotton sheeting glued over acidic grayboard cores that warp into concave bows when coated with heavy acrylics, walnut ink, or mixed-media botanicals.

Project 9: Archival Family Gratitude Scroll on 72-Inch Unprimed Number 12 Cotton Duck

Material: 100% Plied Cotton | Weight: 11.5 oz/sq yd (#12 Duck, 390 GSM) | Width: 72 in | Weave: 2×2 Plied Numbered Artist Weave | Finish: Unprimed Natural | Coating: Clear Archival Acrylic Size | End Use: Hanging Family Gratitude Wall Scroll

An oversized hanging gratitude scroll cut from 72-inch unprimed Number 12 cotton duck artist canvas serves as an heirloom Thanksgiving wall installation where family members and guests write dated reflections every November. At 11.5 oz/sq yd (390 GSM), Number 12 plied cotton duck hangs plumb between top and bottom 1-inch hardwood dowels without curling inward along the vertical edges. For institutional buyers, schools, and makers producing multiple scrolls, our slitting department can slit 72-inch rolls into two 36-inch or three 24-inch continuous widths.

• Preventing Ink Feathering with Clear Acrylic Sizing: Raw unprimed cotton fibers act as capillary channels that cause permanent ink and paint markers to feather into blurry halos. Before lettering the header or setting out archival pigment markers for guests, brush two thin coats of transparent matte acrylic polymer medium (clear archival size) across the writing zone and allow 4 hours to cure. The clear polymer seals the cellulose capillaries while preserving the warm, natural oatmeal texture of unbleached #12 duck.

Project 10: Gesso-Primed Botanical Harvest Triptych on Stretched #10 Artist Canvas

Material: 100% Plied Cotton | Weight: 14.73 oz/sq yd (#10 Duck, 500 GSM) | Width: 72 in | Weave: 2×2 Plied Numbered Artist Weave | Finish: Raw Stretched on 1.5-in Bars | Coating: Triple-Coat Titanium Acrylic Gesso | End Use: Three-Panel Harvest Wall Art

Stretching three matching 24-inch × 36-inch gallery-wrapped panels from a single roll of 72-inch Number 10 cotton duck (14.73 oz/sq yd, 500 GSM) over 1.5-inch kiln-dried basswood stretcher bars produces drum-tight painting supports at less than one-third the cost of pre-stretched retail canvases. Number 10 plied duck resists corner sag across large spans and maintains uniform warp-and-weft tension through seasonal winter heating cycles.

• Stretching & Archival Priming Protocol: Cut three 30-inch × 42-inch panels from the 72-inch bolt to allow 3 inches of grip margin per side. Working from the center of each bar outward with heavy-duty canvas pliers and 3/8-inch Monel crown staples, tension the weave evenly before folding crisp hospital corners. Following our studio tutorial on priming unbleached cotton duck with archival acrylic gesso and Smithsonian Museum Conservation Institute guidelines, apply three alternating perpendicular coats of titanium dioxide acrylic gesso, sanding lightly with 220-grit paper between dried coats before painting autumn oak, wheat, and gourd compositions.

Project 11: No-Sew Stenciled Harvest Bunting and Porch Banner in 7 oz Wheat Cotton Duck

Material: 100% Ring-Spun Cotton | Weight: 7.0 oz/sq yd (237 GSM) | Width: 60 in | Weave: 1×1 Single-Fill Plain Weave | Finish: Vat-Dyed Wheat or Custom Colored | Coating: Heat-Set Screen Ink & Clear Acrylic Sealer | End Use: Mantel Bunting & Porch Banner

For makers, classrooms, and retail visual merchandisers seeking a fast, no-sew holiday build, 7 oz single-fill cotton duck in a 60-inch width (237 GSM, vat-dyed Wheat or custom-colored to brand Pantone specifications) cuts cleanly with pinking shears or a rotary cutter to form triangular mantel bunting and vertical front-porch welcome banners. At 237 GSM, 7 oz duck is light enough to hang from removable adhesive mantel hooks while heavy enough to resist twisting in autumn breezes.

• No-Sew Thermal Bonding & Stenciling: Cut twelve 8-inch × 10-inch isosceles triangles with a 1-inch top fold tab using 45 mm pinking blades to lock the bias grain against fraying. Fold the 1-inch tabs over a continuous 10-foot length of 0.25-inch natural jute twine or 0.5-inch cotton twill tape and bond each tab shut using paper-backed polyamide fusible web pressed at 350°F for 12 seconds. Stencil harvest typography onto each pennant using water-based screen-printing textile ink, air-dry for 2 hours, and heat-cure under a dry cotton pressing cloth at 330°F for 30 seconds.

Project 12: Kids’ Keepsake Handprint and Acorn Collage on Triple-Primed #12 Cotton Panels

Material: 100% Plied Cotton | Weight: 11.5 oz/sq yd (#12 Duck, 390 GSM) | Width: 60 in | Weave: 2×2 Plied Numbered Artist Weave | Finish: Laminated on 0.75-in Birch Cradle | Coating: Archival PVA & Triple Acrylic Gesso | End Use: Rigid Kids’ Keepsake Art Panel

Laminating 11.5 oz Number 12 plied cotton duck (390 GSM, 60-inch width) onto 0.75-inch cradled Baltic birch plywood panels using pH-neutral polyvinyl acetate (PVA) bookbinding adhesive creates an indestructible rigid support for children’s dated Thanksgiving handprint turkeys, pressed maple leaves, and acorn cap collages. Standard stretched craft-store boards bounce and dent under small hands and sag over time when loaded with heavy glue and 3D natural objects.

• Rigid Panel Lamination Workflow: Roll a uniform coat of reversible archival PVA adhesive onto the sanded face of a 12-inch × 16-inch birch cradle panel, lay a 14-inch × 18-inch cut of unprimed #12 cotton duck over the board, smooth from the center outward with a hard rubber brayer to expel air pockets, wrap the 1-inch margins around the cradle sides, and weight flat for 12 hours. Prime the cured cotton face with three coats of titanium acrylic gesso before applying non-toxic AP-certified acrylic handprints and sealing dried botanicals under a UV-filtering matte acrylic varnish.

What Did Our Auburn, Georgia Textile Lab Discover About Shrinkage, Gravy Repellency, and Seam Strength?

Empirical testing at our Auburn, Georgia textile warehouse and cut-and-sew production facility proves that pre-shrinking washable greige cotton duck, matching surface coatings to liquid temperature and acidity, and upgrading needle-and-thread specifications eliminate over 90% of structural and cosmetic failures in Thanksgiving canvas builds. To provide makers and institutional buyers with verifiable benchmarks aligned with AATCC and ASTM consensus standards, our quality assurance team tested four critical holiday failure modes across our stocked cotton duck inventory.

As Table 2 confirms, pre-shrinking washable greige cotton duck removes nearly 90% of loom-tension relaxation shrinkage prior to cutting, while pairing a 110/18 denim needle with Tex 70 bonded polyester thread and copper rivets triples the load capacity of heavy-duty holiday carriers.

How Do Makers and Production Teams Pre-Shrink, Slit, Digitize, and Sew Heavy Cotton Duck?

Preparing and sewing cotton duck canvas for Thanksgiving projects requires a four-stage workflow: pre-washing washable yardage in loose accordion folds to prevent dye crazing, squaring the damp warp and weft grain before cutting, fitting a reinforced denim needle (size 90/14 to 110/18) with bonded polyester thread, and lengthening stitch density to 7 to 9 stitches per inch (SPI). For brands, event companies, and institutional buyers scaling holiday production, combiningswatch testing with our in-house roll slitting, custom vat coloring, pattern digitizing, and turnkey cut-and-sew services eliminates bottleneck steps.

1. Pre-Shrinking Washable Uncoated Duck (Skip for Waxed & Archival Painting Canvas): Before cutting washable table runners, placemats, or slipcovers, follow our guide on pre-shrinking raw cotton duck canvas before cutting. Overlock or zigzag raw cut ends to prevent warp unraveling, fold the yardage in loose accordion pleats rather than stuffing it into a tight ball (which causes permanent white “crazing” streaks on dyed duck), wash at 105°F–120°F with neutral detergent, and remove from the dryer while 15% damp to square the grain flat on your cutting table.
2. Grain Squaring, Precision Slitting, and Pattern Digitizing: On single-fill 7 oz and 10 oz cotton duck, pull a single weft thread across the width and cut along the resulting channel to establish a true 90-degree edge. When producing 20 or more runners, banners, or binding strips, utilize our commercial roll slitting and CAD pattern digitizing services to convert physical templates into precision-cut panels.
3. Needle, Thread, and Walking-Foot Calibration: Consult our technical breakdown on matching heavy-duty denim needles and bonded polyester thread to canvas weight before stitching. Pair a 90/14 denim needle and Tex 40 core-spun polyester thread with 7 oz to 10 oz single-fill duck; step up to a 100/16 or 110/18 denim needle, Tex 70 (V69) bonded polyester thread, and a walking foot attachment for 14.5 oz waxed army duck and 18 oz #8 duck.
4. Post-Holiday Stain Removal and Wax Reconditioning: For washable cotton duck table linens, treat spills promptly using our cold-water and enzyme protocol for removing cranberry, gravy, and red wine stains from woven cotton fabrics, air-drying completely to verify stain removal before pressing. For waxed army duck pie and wine totes, brush off dried crumbs and wipe with cold water only, restoring hydrophobic performance every 12 to 24 months by re-waxing paraffin-treated army duck carriers after seasonal use.

What Are the Most Common Misconceptions About Using Canvas for Thanksgiving Projects?

Four widespread misconceptions cause DIY sewists, artists, and event planners to ruin yardage or choose unsafe materials when building Thanksgiving canvas projects. Correcting these false premises before purchasing fabric protects both your sewing machine and your dining table.

• Misconception 1: “Hardware-store painter’s drop cloths are identical to first-quality 10 oz cotton duck.”
  Engineering Reality: Hardware-store drop cloths are woven from short-staple floor-sweep cotton waste, frequently seamed down the middle with bulky flat-felled joints, contaminated with loom oil or bleach spots, and inconsistent in weight (varying from 5 oz to 9 oz). First-quality 10 oz single-fill cotton duck (339 GSM) in a 63-inch bolt width provides continuous, knot-free, uniform plain-weave yardage without center seams across a dining table.
• Misconception 2: “Waxed canvas can be used as a direct hot-pad trivet or machine-washed after a pie spill.”
  Engineering Reality: Paraffin and beeswax blends melt between 120°F and 150°F (49°C–66°C). Setting a 375°F roasting dish directly onto waxed army duck liquefies the wax and transfers a greasy ring onto wood tabletops, while warm machine washing strips the hydrophobic coating and fouls washing machine drums. Always buffer hot cookware with cork or insulated cotton batting and clean waxed canvas exclusively with cold water.
• Misconception 3: “All 10 oz canvas has the same weight and stiffness as Number 10 (#10) duck.”
  Engineering Reality: Under the US commercial cotton duck numbering formula ($\text{Duck Number} = 19 – \text{weight in ounces per } 22\text{-in} \times 36\text{-in linear yard}$), Number 10 (#10) cotton duck weighs 14.73 oz/sq yd (500 GSM) and uses heavy two-ply yarns—making it nearly 50% heavier and significantly stiffer than 10 oz single-fill ounce duck (339 GSM). Ordering #10 duck when a table runner pattern calls for 10 oz single-fill duck creates excessive corner bulk.
• Misconception 4: “You can letter with liquid ink or paint with oils directly on raw unprimed cotton duck.”
  Engineering Reality: Raw unprimed cotton cellulose acts as a capillary wick that bleeds liquid marker ink into fuzzy halos and suffers acid embrittlement when exposed directly to linseed oil. Always seal raw canvas lettering zones with clear archival acrylic polymer size or prime painting areas with three coats of titanium acrylic gesso.

When Should You Specify Linen, Marine Acrylic, Ballistic Nylon, or Ripstop Nylon Instead of Cotton Duck?

While woven cotton duck canvas is the premier substrate for structured table runners, waxed culinary totes, and wide-format archival wall scrolls, specification-driven textile engineering requires knowing when flax linen, spun polyester, marine and awning fabrics, technical denier synthetics, 1050D/1680D ballistic nylon, 70D/210D ripstop nylon, or mil-spec textiles are superior choices. Because Canvas ETC stocks both traditional cotton ducks and technical synthetics under one roof, we guide makers and institutional buyers to the exact substrate that matches their mechanical and environmental demands.

Furthermore, many makers combine both worlds in hybrid builds—such as pairing a classic 14.5 oz Field Tan waxed army duck exterior shell with a wipe-clean 210D polyurethane-coated ripstop nylon interior spill liner and a 1050D ballistic nylon abrasion-resistant bottom boot.

Where Does Cotton Duck Canvas Fail in Holiday Culinary and Event Applications?

Even first-quality cotton duck canvas operates within three strict physical boundaries regarding open-flame proximity, entry-level domestic sewing machine torque, and damp post-holiday storage. Respecting these operational limits prevents fire hazards, broken needle shafts, and mildew damage.

• Open-Flame Candle Proximity (Flammability Boundary): Untreated 100% cotton duck and paraffin-waxed army duck are combustible fuel sources that ignite if contacted by an open taper candle flame or fireplace spark. Never place unshielded wax candles directly onto an untreated cotton duck runner; enclose all table candles inside hurricane glass chimneys and specify flame-retardant fabrics certified to NFPA 701 when installing vertical canvas backdrops or pipe-and-drape dividers in commercial banquet venues.
• Entry-Level Plastic-Chassis Sewing Machine Overload: Piercing four intersecting layers of 14.73 oz #10 duck or 18 oz #8 duck at a mitered corner or handle box-X junction exceeds the motor torque and hook timing tolerances of lightweight plastic-gear domestic sewing machines. If your machine stalls on a 4-layer test swatch, step down to 10 oz single-fill cotton duck (339 GSM), flatten thick seam junctions with a rubber mallet before stitching, or use our copper-riveted and fusible-web no-sew construction options.
• Anaerobic Mildew Growth in Sealed Plastic Storage: Packing cotton duck table runners, porch banners, or waxed canvas totes into airtight plastic bins while above 12% moisture regain triggers rapid Aspergillus and Penicillium mildew growth on natural cellulosic starches. Always launder or brush clean, air-dry for 24 hours in a low-humidity room, and store holiday canvas items inside breathable cotton muslin bags.

Frequently Asked Questions About Thanksgiving Canvas Projects

What weight of cotton duck canvas is best for a Thanksgiving table runner?

A 10 oz single-fill cotton duck canvas (339 GSM) in a 58-inch to 63-inch bolt width is the optimal specification for a Thanksgiving table runner. The 339 GSM plain-weave structure provides sufficient areal mass to lie flat beneath heavy stoneware platters and gravy boats without sliding across polished wood surfaces, while remaining pliable enough to fold crisp 1-inch mitered corners using a domestic sewing machine fitted with a 90/14 or 100/16 denim needle and Tex 40 core-spun polyester thread. By contrast, 7 oz cotton duck (237 GSM) requires starching or backing to prevent bunching, whereas 14.73 oz Number 10 plied duck (500 GSM) creates excessive seam bulk at four-layer mitered corners. Ordering a 63-inch-wide cut of 10 oz natural single-fill cotton duck allows makers to cut three full-length 18-inch × 108-inch runners along the warp grain without a single center piecing seam.

Can you put a hot Thanksgiving casserole dish directly on waxed canvas?

Placing a 350°F to 400°F baking dish directly onto paraffin-treated waxed army duck softens and migrates the wax coating because paraffin and beeswax blends melt between 120°F and 150°F (49°C–66°C). Direct contact with hot Pyrex or cast-iron cookware liquefies the surface wax, transferring an oily residue onto the dish and leaving a pale, depleted ring on the canvas face. To transport hot pies and casseroles safely while maintaining the USDA FSIS 140°F food-safety threshold, construct waxed army duck carriers with a three-layer thermal stack: an exterior shell of 14.5 oz finished waxed army duck (492 GSM), a middle core of needle-punched aluminized polyester thermal batting, and an interior lining of unbleached 10 oz single-fill cotton duck (339 GSM) paired with a removable 0.25-inch cork trivet base.

How much extra canvas yardage should I buy to account for pre-washing shrinkage?

Order 8% to 10% extra linear yardage—roughly 3 to 3.5 additional inches per linear yard—when purchasing unwashed natural greige cotton duck for washable Thanksgiving table runners, placemats, or chair slipcovers. Per AATCC Test Method 135 home laundering trials conducted at our Auburn, Georgia textile facility across 30 specimens, unwashed 10 oz single-fill cotton duck contracts by 6.8% along the warp direction and 3.4% across the weft direction during its first 120°F wash and tumble-dry cycle, while tighter two-ply Number 12 cotton duck (11.5 oz/sq yd, 390 GSM) contracts by 4.9% in the warp and 2.2% in the weft. Pre-washing yardage in loose accordion folds at 105°F and pressing the fabric flat while 15% damp removes nearly 90% of loom relaxation tension, keeping post-dinner laundering shrinkage below 0.9%.

What is the difference between single-fill ounce duck and numbered duck for holiday projects?

Single-fill ounce duck (such as 7 oz or 10 oz cotton duck) weaves two warp yarns over a single weft yarn in a 1×1 plain weave, producing a pliable, economical fabric suited for draped table runners, printed placemats, napkins, and hanging porch banners. Numbered duck (such as #12 at 11.5 oz/sq yd, #10 at 14.73 oz/sq yd, or #8 at 18.0 oz/sq yd) uses multi-ply twisted cotton yarns in both the warp and weft directions, creating a denser, stiffer basket-plain weave structure where lower grade numbers indicate heavier fabric ($\text{Number} = 19 – \text{ounces per } 22\text{-in} \times 36\text{-in yard}$). Choose single-fill ounce duck whenever a holiday project requires crisp folding and domestic machine hemming; choose plied numbered duck when a build requires freestanding wall stiffness (such as #8 duck bread baskets), high tensile tear strength (#8 duck log carriers), or warp-free wide-format painting and lettering spans (#12 and #10 artist duck).

Key Engineering Takeaways for Thanksgiving Canvas Projects

• Specify All 7 Textile Parameters: Always match material, weight (oz/sq yd & GSM) or denier, bolt width, weave geometry, finish, coating, and end use before cutting holiday yardage.
• Tabletop Runners & Placemats: Use 10 oz single-fill cotton duck (339 GSM, 58–63 inch width, 1×1 plain weave) for flat tabletop stability and clean 45-degree mitered corners.
• Pre-Shrinkage Allowance: Unwashed 10 oz greige cotton duck shrinks 6.8% warp / 3.4% weft per AATCC Test Method 135; order 8%–10% extra yardage and accordion-wash washable linens before cutting.
• Spill-Protected Seating: Specify 59-inch #10 water-repellent and antimicrobial (WRAM) dyed cotton duck (14.73 oz/sq yd, 500 GSM, AATCC TM 22 Spray Rating 85) for machine-washable dining chair slipcovers.
• Insulated Culinary Transport: Pair 60-inch Field Tan waxed army duck (10.10 oz base / 14.5 oz waxed weight, 492 GSM, Spray Rating 90) with thermal batting and a 10 oz unbleached duck lining to maintain the 140°F USDA food-safety threshold without melting paraffin coatings.
• Hearth & Heavy Hauling: Construct fireplace log totes from 18 oz Number 8 plied cotton duck (610 GSM) using continuous under-belly webbing, 110/18 denim needles, Tex 70–90 bonded polyester thread, and #9 copper rivets (215 lbf seam capacity), or step up to 1050D/1680D ballistic nylon for extreme outdoor abrasion.
• Archival Wall Scrolls & Triptychs: Cut hanging family gratitude scrolls and stretched paintings from 72-inch Number 12 (11.5 oz/sq yd, 390 GSM) or Number 10 (14.73 oz/sq yd, 500 GSM) plied cotton duck, sealing raw lettering zones with clear acrylic polymer size or triple-coat titanium gesso.
• One-Source Print-to-Production Partner: From fabric swatches, cut yardage, and full wholesale rolls to custom digital fabric and wallpaper printing, precision roll slitting, custom coloring, pattern digitizing, and cut-and-sew finished goods, our team at Canvas ETC in Auburn, Georgia supports makers, brands, manufacturers, and institutional buyers at every scale.

At Canvas ETC, we supply commercial rolls, custom slitting, and full cut-and-sew contract manufacturing for high-performance textiles. Across decades of testing in our Georgia fabrication facility, gear designers, defense contractors, and industrial bag makers regularly ask us how to balance weave flexibility against total moisture exclusion. To make specification decisions simple, here are the foundational engineering rules governing ballistic nylon:

• The Weave Architecture: Genuine ballistic nylon utilizes a balanced 2×2 basket weave (matt weave) where two warp ends float over and under two filling picks in tandem. This structural geometry allows yarn bundles to shift and bunch under tearing stress, providing an exceptional Elmendorf tear resistance of up to 138 lbf (ASTM D1424).
• The Polymer Substrate: Authentic mil-spec ballistic nylon is woven from single-ply, continuous-filament high-tenacity Polyamide 6,6 (Nylon 6,6) with an individual fiber tenacity of 8.5 to 9.5 grams per denier (g/d), vastly outperforming commercial two-ply Nylon 6 fabrics.
• The Porosity Reality: Unfinished ballistic nylon is not waterproof. The macroscopic interstitial voids between intersecting 1050-denier yarn bundles span 20 to 60 microns. Coupled with nylon’s natural 4% moisture absorption, raw fabric leaks at hydrostatic pressures below 100 mm H₂O.
• The Barrier Coating System: Waterproofness is achieved through an internal back-coating. Specification-grade textiles must utilize polyether-based polyurethane (PU) delivering 1,000 to 2,000 mm H₂O hydrostatic head (AATCC 127) or thermoplastic polyurethane (TPU) film laminates (>10,000 mm H₂O). Inferior polyester-based polyurethanes must be avoided due to moisture-induced hydrolytic delamination.
• The Exterior Surface Finish: A face treatment of durable water repellent (DWR) lowers the textile surface energy below 26 mN/m, forcing water to bead into high contact angles (>105°) and roll off without saturating the face fibers.
• Industrial Factory Tooling: Coated ballistic nylon must be stitched with System 135×17 (DPx17) acute round-point needles (sizes 18/110 to 22/140) and Tex 90 or Tex 138 bonded nylon thread to prevent needle puncture tearing, followed by 420°C hot-air polyurethane seam tape over stitch lines.

Anatomy of the 2×2 Basket Weave: Structural Mechanics and Dynamic Tear Arrest

Ballistic nylon utilizes a balanced 2×2 basket weave where two warp ends float over and under two filling picks simultaneously. This paired geometry provides superior yarn mobility, allowing adjacent filaments to shift and bunch together when subjected to tearing forces, yielding up to 138 lbf Elmendorf tear resistance (ASTM D1424) without sacrificing surface smoothness.

Originally synthesized and woven by DuPont during World War II under federal research contracts, ballistic nylon was engineered for airmen flak jackets to catch high-velocity lead flak and shell fragments. While modern ballistic vests rely on rigid ceramics and ultra-high-modulus para-aramids like Kevlar, the mechanical architecture of ballistic nylon remains the gold standard for rugged commercial luggage, tactical load-bearing vests, motorcycle apparel, and heavy tool bags.

To understand why this weave performs so exceptionally under mechanical stress, we must look at how yarn interlacing distributes dynamic kinetic energy:

    WARP PAIR 1     WARP PAIR 2
       │   │           │   │
───────┼───┼───────────▀───▀─────── WEFT PAIR 1 (Over Warp 2, Under Warp 1)
───────┼───┼───────────▀───▀───────
       │   │           │   │
───────▀───▀───────────┼───┼─────── WEFT PAIR 2 (Over Warp 1, Under Warp 2)
───────▀───▀───────────┼───┼───────
       │   │           │   │


1. The Kinematics of Yarn Mobility

In a conventional 1×1 plain weave (such as standard canvas or Oxford cloth), every single yarn alternates over and under adjacent perpendicular yarns at every intersection. This creates a high frequency of crimp bends per linear inch, locking the yarns firmly into fixed grid positions. When a sharp puncture or tear initiates in a 1×1 plain weave, the stress isolates entirely onto a single thread. The tearing force breaks that thread, advances to the next thread, and propagates rapidly across the fabric.

In our balanced 2×2 basket weave, the frequency of yarn interlacing points is halved. Because pairs of warp and weft yarns float together across two intersections, the individual continuous filaments possess freedom of movement—a mechanical property known as yarn mobility:

• Dynamic Bunching Under Load: When a tear is initiated (measured in our shop via the ASTM D1424 falling-pendulum Elmendorf tear tester), the tearing tongue pulls on the paired yarns.
• Lateral Filament Slippage: Instead of snapping instantly, the unbonded paired filaments slip laterally across one another and bunch together at the apex of the tear.
• Artificial Reinforcement Bundle: This grouping action transforms a single 1050-denier yarn into an artificial composite yarn bundle with an effective linear mass exceeding 2100 to 4200 denier. The kinetic energy required to propagate the tear is multiplied, effectively arresting the rip in place.

2. Tensile Tenacity and Crimp Balance

The 2×2 architecture also minimizes yarn stress degradation during weaving. In tight plain weaves, the aggressive over-under crimp reduces the effective tensile strength of high-tenacity yarns by up to 15% due to shearing at the intersection apex. The smoother, elongated floats of the 2×2 basket weave reduce crimp angles, allowing the continuous-filament Polyamide 6,6 yarns to operate closer to their theoretical maximum tensile tenacity (9.0 g/d).

In our commercial 1050 denier ballistic nylon fabric, our construction features a thread count of 34 warp ends by 30 filling picks per inch (ASTM D3775). This balanced crimp distribution ensures virtually isotropic strength across both axes: 530 lbf grab tensile strength in the warp and 485 lbf in the fill (ASTM D5034). If you are exploring how weave structures differ across high-denier fabrics, review our comprehensive guide to denier fabric weave types.

1050D Single-Ply vs. 1680D Double-Ply: Polymer Grade and Tenacity Trade-Offs

Genuine 1050D ballistic nylon is woven from single-ply, continuous-filament high-tenacity Nylon 6,6 yielding a fiber tenacity of 8.5 to 9.5 g/denier. Conversely, commercial 1680D is commonly woven from two plies of lower-grade Nylon 6 (5.5–6.5 g/d). Consequently, 1050D fabric delivers 35% higher tensile grab strength (ASTM D5034) and substantially greater abrasion resistance.

One of the most persistent procurement misconceptions in the textile industry is the belief that higher denier numbers always equal a stronger fabric. Purchasing agents frequently assume that 1680D ballistic nylon must be 60% stronger than 1050D simply because 1680 is greater than 1050. In production reality, this number refers strictly to linear mass density (the weight in grams of 9,000 meters of yarn), revealing nothing about polymer chemistry, tensile tenacity, or filament orientation.

1. Polymer Chemistry: Polyamide 6,6 vs. Polyamide 6

Authentic 1050D is extruded exclusively from Polyamide 6,6 (synthesized from hexamethylenediamine and adipic acid). Polyamide 6,6 contains a highly symmetrical molecular chain structure with dense, regularly spaced hydrogen bonds between adjacent carbonyl (C=O) and amino (N-H) groups. This crystalline morphology gives it a melting point of 255°C to 265°C (491°F to 509°F) and extreme mechanical resilience.

In contrast, commercial 1680D is almost universally extruded from commodity Polyamide 6 (synthesized via the ring-opening polymerization of caprolactam). Polyamide 6 features lower molecular alignment, lower hydrogen bond density, and a significantly lower melting threshold of 215°C to 220°C (419°F to 428°F). The resulting fiber tenacity is only 5.5 to 6.5 g/d, representing a ~35% deficit in base polymer strength compared to high-tenacity Nylon 6,6.

2. Yarn Structure: Single-Ply Filament vs. Two-Ply Twisted Yarn

In genuine 1050D, each warp and filling yarn is a single continuous filament bundle. When woven into a 2×2 basket weave, these smooth filament bundles pack closely together, creating a tight surface profile with exceptional rotary abrasion resistance under ASTM D3884 testing (>2,800 cycles to wear-through on a Taber H-18 wheel).

Commercial 1680D is constructed by twisting two plies of 840-denier yarn together (2 x 840D = 1680D). When these plied yarns are woven, the twisted geometry creates tall microscopic ridges and valleys on the fabric surface. Under abrasive contact, friction concentrates exclusively on the raised crowns of the twisted yarns, causing them to abrade prematurely, fuzz, and sever. In Taber abrasion testing, commercial 1680D typically fails at just 1,400 cycles—roughly half the working lifespan of 1050D.

For deep-dive comparisons of nylon polymer classes and denier selections, read our article on the composition and history of ballistic nylon and our practical overview on how to choose the right denier fabric.

Porosity Mechanics: Why Raw Ballistic Nylon Leaks Without a Coating

Uncoated ballistic nylon is not waterproof because the 2×2 basket weave contains macroscopic interstitial voids between yarn bundles ranging from 20 to 60 microns in diameter. In addition, hydrophilic amide groups in polyamide fibers absorb up to 4% moisture by weight, allowing water to pass through under minor hydrostatic pressures below 100 mm H₂O.

A frequent inquiry we receive from emerging gear brands is whether an extra-heavy, ultra-tight nylon weave can repel water without chemical coatings. The laws of fluid dynamics and polymer thermodynamics provide a definitive answer: No woven textile constructed from continuous-filament synthetic yarns can be waterproof without a non-porous polymer backing or membrane barrier.

1. Interstitial Void Geometry

Even when woven on modern high-speed rapier looms at maximum warp and pick tension, intersecting 1050-denier yarn bundles cannot achieve zero clearance. The circular cross-section of multi-filament yarns inevitably creates interstitial voids—microscopic tunnels between adjacent threads:

• A water droplet under atmospheric mist conditions measures between 100 and 500 microns (µm) in diameter.
• The macroscopic pore openings at the intersections of a 1050D 2×2 basket weave measure between 20 and 60 microns (µm).
• While surface tension may momentarily support a stationary droplet, any applied mechanical force—such as wind-driven rain, the weight of pooled water, or the pressure of a person setting a pack down on wet ground—instantly overcomes this surface tension, forcing fluid directly through the interstitial openings.

2. Capillary Action and Polyamide Hydrophilicity

Unlike chemically inert hydrophobic polyolefins (such as polyethylene or polypropylene), polyamide (nylon) contains polar amide groups (-CONH-) distributed along its polymer backbone. These polar groups form hydrogen bonds with water molecules, causing raw nylon fibers to absorb between 3.5% and 4.5% moisture by weight under ambient conditions.

When rain strikes uncoated ballistic nylon, the polar amide groups attract water, causing the continuous filaments to wet out rapidly. The tight parallel channels between the hundreds of microscopic filaments comprising each 1050-denier bundle act as capillary pumps, drawing water deep into the yarn core and transporting it across the thickness of the fabric. In laboratory hydrostatic testing per AATCC 127, untreated greige 1050D ballistic nylon exhibits continuous water droplet breakthrough at pressures below 80 mm H₂O (approx. 0.11 PSI). Within minutes, pressurized moisture saturates the reverse side.

Water-Resistant Back-Coatings: Polyurethane (PU), TPU, and PVC Compared

Polyurethane back-coatings seal ballistic nylon by depositing a thin, continuous elastomer film onto the fabric underside, delivering 1,000 to 2,000 mm H₂O hydrostatic resistance (AATCC 127). Fabricators must specify polyether-based PU rather than cheaper polyester-based PU, as polyester urethanes undergo moisture-induced hydrolysis over 3 to 5 years, resulting in sticky delamination, flaking, and severe odor release.

To achieve water impermeability, chemical finishers apply a continuous polymer barrier to the underside (back) of the fabric. This layer bonds to the woven filaments, bridges the 20–60 micron interstitial pores, and forms an impenetrable solid-state barrier. In commercial manufacturing, three distinct polymer coating technologies dominate: Polyurethane (PU), Thermoplastic Polyurethane (TPU) Film, and Polyvinyl Chloride (PVC).

1. Polyurethane (PU) Back-Coatings: Polyether vs. Polyester Chemistry

Polyurethane is applied via a knife-over-roll coating machine, where liquid urethane resin dissolved in solvent or waterborne dispersion is spread across the moving fabric web, then cured in a multi-stage convective drying oven.

However, not all polyurethane coatings are engineered equally. In commercial textiles, polyurethane resins are divided into two fundamental chemical classes:

• Polyester-Based Polyurethanes: Synthesized from polyester polyols. While they offer excellent initial tensile strength and abrasion resistance at low raw-material cost, their polymer chains contain ester linkages (-COO-). Under atmospheric humidity and ambient heat, water molecules induce ester hydrolysis, breaking the polymer chains down into carboxylic acids and alcohols. Over 3 to 5 years of consumer use, polyester PU coatings undergo catastrophic failure: the membrane becomes soft, gummy, and tacky, peels away in flakes, and emits an unbearable sour, vomitus odor.
• Polyether-Based Polyurethanes (Canvas ETC Standard): Synthesized from polyether polyols containing ether linkages (-C-O-C-). Ether bonds are chemically impervious to water scission under ambient environmental conditions. Polyether PU coatings resist moisture degradation, bacterial attack, and fungal rotting for 10 to 15+ years of continuous service.

Laboratory Case Study 1: Accelerated Tropical Hydrolytic Aging (ISO 1419 Method C)

To definitively evaluate hydrolytic resilience for our contract manufacturing partners, the Canvas ETC testing facility conducted an accelerated environmental degradation trial comparing polyester-based and polyether-based PU coatings on 1050D ballistic nylon:

• Test Protocol: Two production samples of 1050D ballistic nylon—both manufactured to an identical baseline hydrostatic head of 1,500 mm H₂O with a 0.75 oz/yd² coating—were placed in an environmental test chamber maintained at 70°C (158°F) and 95% relative humidity for 1,500 continuous hours (the laboratory equivalent of approximately 5–7 years of exposure in tropical, humid storage).
• Empirical Results:
  • Sample A (Polyester PU): Coating peel adhesion (ASTM D751) collapsed from 4.8 lbf/in to 0.9 lbf/in. Under 20x optical magnification, the coating exhibited extensive micro-cracking and sticky gumming. Hydrostatic head resistance plummeted by 82% to just 270 mm H₂O, rendering the fabric completely non-waterproof.
  • Sample B (Polyether PU): Maintained structural integrity with a coating adhesion peel strength of 4.3 lbf/in (retaining 89.6% of baseline). Hydrostatic resistance measured at 1,320 mm H₂O (88% retention), with zero surface tackiness, zero delamination, and zero odor generation.

At Canvas ETC, we exclusively engineer and stock specification-grade ballistic nylon formulated with polyether polyurethanes to prevent field failures. For more technical background on polymer films, see our dedicated article on protective denier fabric coatings.

2. Thermoplastic Polyurethane (TPU) Film Lamination

For applications demanding total fluid containment, airtight inflation, or marine submersion (such as military dry bags, tactical pack rafts, and hazardous material duffels), standard knife-coated PU is superseded by Thermoplastic Polyurethane (TPU) film lamination.

Rather than spreading a liquid resin, an extruded 1.0 to 3.0 mil (0.025 mm to 0.075 mm) solid elastomeric TPU film is thermally bonded directly onto the ballistic nylon using heated nip rollers. TPU laminations deliver extreme hydrostatic resistance exceeding 10,000 to 20,000 mm H₂O. Because TPU is a thermoplastic, finished panels can be permanently joined using Radio Frequency (RF) welding or ultrasonic thermal bonding, eliminating stitched needle holes entirely to create 100% airtight and watertight seams.

3. Polyvinyl Chloride (PVC) Back-Coatings

Polyvinyl chloride (PVC) is a heavy synthetic plastisol applied via calendar roll coating. PVC deposits a thick, dense, rubberized barrier (typically adding 4.0 to 6.0 oz/yd² to the fabric weight). While it delivers complete waterproofness (>10,000 mm H₂O) and extreme puncture resistance at a low commercial cost, PVC coatings contain liquid plasticizers that gradually leach out over time. In low-temperature testing per ASTM D2136, PVC backings exhibit severe cold-cracking at -15°C to -20°C (5°F to -4°F), shattering under flexural stress.

Exterior Finishes: Durable Water Repellency (DWR), UV, and Flame Resistance

Durable water repellent (DWR) finishes lower the exterior surface energy of ballistic nylon below that of water, achieving an initial AATCC 22 spray rating of 90 to 100. While legacy short-chain C6 fluorocarbons repel both oil and water, modern fluorine-free C0 finishes effectively bead water but require precise thermal curing and offer zero oil repellency.

While an internal back-coating stops water from penetrating through to the interior of a bag, it does not prevent water from saturating the exterior woven face. When untreated face fibers absorb water, the fabric undergoes “wetting out”: the textile gains up to 25% additional dead water weight, porous interstitial cavities fill with water, and continuous moisture contact creates sustained hydrostatic pressure against the back-coating.

1. DWR Surface Chemistry: C6 Fluorochemicals vs. Fluorine-Free C0

A Durable Water Repellent (DWR) is an ultra-thin chemical finish applied via an aqueous pad-bath, squeezed through high-pressure padder rolls, and cross-linked in a curing oven at 160°C to 180°C. DWR finishes functionalize the individual filament surfaces, lowering their critical surface energy far below the surface tension of water (72.8 mN/m):

• Short-Chain C6 Fluorochemicals: Based on perfluorohexanoic acid (PFHxA) chemistry. C6 finishes align dense perfluoroalkyl side chains perpendicular to the fiber axis, reducing surface energy to 15–18 mN/m. This provides an AATCC 22 spray rating of 100 and grants both hydrophobic (water) and oleophobic (oil, grease, solvent) repellency. Tactical and military contracts governed by MIL-DTL-32439A still specify C6 finishes because oil and diesel fuel repellency are vital on the battlefield.
• Modern C0 Fluorine-Free DWRs: Formulated from hyperbranched polymers (dendrimers), silicones, or plant-based hydrocarbon waxes. C0 finishes lower surface energy to approximately 22–26 mN/m, delivering excellent water beading (AATCC 22 spray rating 90–100 initial; 75–80 after 20 washes). However, C0 chemistries possess zero oleophobicity: automotive oils, insect repellents, and camp fuel will instantly wet out C0-treated nylon.

2. Ultraviolet (UV) Stabilizers and Photolytic Protection

Polyamide 6,6 is naturally vulnerable to photodegradation when exposed to terrestrial solar ultraviolet radiation (UV-A and UV-B wavelengths between 290 and 400 nm). UV photons break covalent bonds in the polyamide backbone through photo-oxidation, leading to yellowing, embrittlement, and a steady loss of tensile strength over extended outdoor exposure. To ensure multi-year field longevity in awnings, marine covers, and expedition backpacks, our finishing baths incorporate Hindered Amine Light Stabilizers (HALS) and Benzotriazole UV Absorbers.

3. Flame Retardant (FR) Finishes and Mil-Spec Compliance

For aviation interiors, military protective gear, and institutional applications, ballistic nylon can be finished with durable flame-retardant chemistries complying with NFPA 701 (Method 1 & 2), CPAI-84, or FAR 25.853. Modern non-halogenated organophosphorus FR additives are incorporated into the back-coating or pad-applied to promote rapid char formation, self-extinguishing the textile within two seconds of flame removal. Compare this synthetic performance with natural cellulosic textiles in our analysis of Cordura vs. cotton duck canvas durability.

Mechanical Trade-Offs: How Barrier Coatings Impact Tear Strength and Hand

Applying a heavy polymer back-coating to ballistic nylon reduces its dynamic Elmendorf tear strength (ASTM D1424) by 10% to 35% through yarn locking. When resin penetrates deep into the 2×2 weave, it prevents adjacent filament bundles from shifting together to dissipate tearing energy, concentrating mechanical shear stress directly onto individual fibers at the tear point.

One of the most vital principles we emphasize to OEM gear designers is that fabric engineering is a discipline of trade-offs. Applying a coating to improve water resistance inevitably alters the physical mechanics of the underlying weave.

Laboratory Case Study 2: Yarn Mobility vs. Coating Mass & Penetration (ASTM D1424 vs. ASTM D751)

In the Canvas ETC quality control lab, our engineers benchmarked three production variations of our 1050D Nylon 6,6 greige substrate to quantify the exact mechanical penalty of differing coating technologies:

• Batch 1 (Greige / Uncoated): Measured a baseline Elmendorf tear resistance of 138 lbf (614 N). The unbonded paired floats shifted freely, creating a thick defensive bundle under tear shear.
• Batch 2 (Double-Pass Polyether PU, 0.75 oz/yd²): Measured an Elmendorf tear resistance of 121 lbf (538 N)—a modest 12.3% reduction in tear strength. The high-viscosity polyether PU skin sealed the macroscopic surface pores while penetrating less than 20% into the yarn bundle core, allowing internal filaments to preserve lateral sliding freedom. Hydrostatic head measured 1,650 mm H₂O.
• Batch 3 (Heavy Calendered PVC Backing, 4.5 oz/yd²): Measured an Elmendorf tear resistance of 95 lbf (422 N)—a massive 31.1% reduction in tear strength. The dense PVC plastisol fully saturated the weave interstices, locking the filaments into a solid, unyielding composite block. While hydrostatic resistance was superior (>10,000 mm H₂O), dynamic resistance to tear propagation was severely compromised.

ELMENDORF TEAR STRENGTH vs. COATING TECHNOLOGY (ASTM D1424)
──────────────────────────────────────────────────────────────────────────
Greige Uncoated 1050D:       ████████████████████████████ 138 lbf (Baseline)
Double-Pass Polyether PU:    ████████████████████████ 121 lbf (-12.3%)
Heavy Calendered PVC:        ███████████████████ 95 lbf (-31.1%)
Commercial 1680D (2-ply PU): ███████████████ 78 lbf (-43.5%)
──────────────────────────────────────────────────────────────────────────


Coating weight also directly dictates the flexural rigidity (stiffness) and drape of the finished fabric. While a 0.75 oz/yd² polyether PU coating leaves the fabric supple enough for complex curved patterns and tight seams on walking-foot machines, heavy PVC backings create extreme stiffness that resists manipulation, requiring oversized seam allowances and leading to operator fatigue.

Industrial Cut-and-Sew Guidelines: Needles, Thread, and Seam Sealing SOP

Fabricating PU-coated 1050D ballistic nylon requires an industrial walking-foot sewing machine fitted with System 135×17 (DPx17) acute round-point needles in sizes 18/110 to 22/140 to prevent cutting load-bearing yarns. Seams should be sewn with Tex 90 or Tex 138 bonded polyamide thread and sealed using 3-layer hot-air polyurethane tape applied at 420°C and 2.5 bar pressure.

Even the highest-grade, laboratory-certified waterproof ballistic nylon will fail in the field if workshop fabrication protocols are flawed. Every needle penetration punches a hole through both the woven substrate and the polymer barrier membrane. Drawing from Canvas ETC’s active commercial cut-and-sew and finished-goods production lines, here are the non-negotiable manufacturing specifications for fabricating coated ballistic nylon:

1. The Needle Point Critical Rule: Round Point vs. Cutting Point

The single most common error made by workshops transitioning from leathercraft to technical textiles is using leather-point needles (System 135×16 DIA / Tri-Point / Wedge). Cutting-point needles feature razor-sharp edges designed to slice through solid, non-fibrous animal hides. When plunged into 1050D ballistic nylon, the knife-edges cleanly sever the high-tenacity continuous filaments inside each yarn bundle and slice wide puncture slots through the PU membrane. Under seam tension, these sliced yarns unravel, cutting the seam’s tensile strength in half and creating severe water leaks.

You must exclusively use System 135×17 (DPx17) acute round-point needles (R). A round point slips smoothly between the tightly woven continuous filaments, gently nudging them aside without cutting. Because polyamide is elastic, the displaced filaments snap back tightly against the inserted thread, minimizing the diameter of the puncture hole. Use Size 18/110 for 2 to 3 fabric plies, and step up to Size 22/140 for heavy multi-layer structural joints (such as webbing attachments).

2. Thread Selection and Tensioning

High-tenacity ballistic nylon demands thread that matches its tensile tenacity and abrasion resistance. Standard apparel threads will snap or shred under friction:

• Bonded Nylon 6,6 (Tex 90 / V-92 or Tex 138 / V-138): The industry standard for heavy backpacks, tactical gear, and tool bags. The specialized resin bonding encapsulates the thread plies, preventing untwisting during high-speed directional changes and eliminating needle-eye friction burn.
• Bonded Polyester (Tex 90 / Tex 138): Specified when finished products face prolonged direct UV sunlight, marine salt spray, or outdoor exposure, as polyester resists UV photodegradation better than nylon.
• Stitch Density Control: Maintain stitch density strictly between 5 and 6 stitches per inch (SPI). Stitch densities exceeding 8 SPI act like a postage-stamp perforation line, creating a row of closely spaced punctures that shear easily under shock loads. Stitch densities below 4 SPI fail to clamp the fabric layers firmly, allowing seam gapping and moisture leakage.

Laboratory Case Study 3: Seam Puncture Geometry & Seam Tape Hydrostatic Integrity

Our cut-and-sew division performed hydrostatic testing on 1050D PU-coated panels clamped in a Pullen tester directly across flat-felled sewn seams:

• Trial A (System 135×16 Tri-point leather needle, unsealed): Leaked immediately at 180 mm H₂O. Sliced puncture holes allowed rapid water passage.
• Trial B (System 135×17 Round point needle, unsealed): Sustained pressure up to 420 mm H₂O before capillary seepage occurred through the compressed stitch hole.
• Trial C (System 135×17 Round point needle + 3-layer hot-air PU tape): Sustained 1,600 mm H₂O with zero leakage, matching the full waterproof performance of the uncut base fabric.

Need complementary technical fabrics for internal linings, divider pockets, or tear-resistant reinforcing baffles? Review our commercial inventory of 1000 denier nylon fabric, 500 denier Cordura nylon, and ultralight 70 denier ripstop nylon fabric.

Master Engineering Specification Matrix: Physical, Barrier, and Thermal Standards

To streamline material evaluation for purchasing managers, military contractors, and materials engineers, Canvas ETC has compiled the definitive master engineering comparison matrix below. All metrics are standardized across official ASTM, AATCC, ISO, and Federal testing standards:

Sourcing Specification-Grade Ballistic Nylon from Canvas ETC

Canvas ETC is an established wholesale textile supplier, coating converter, and custom production partner headquartered in Georgia. We serve makers, independent brands, military contractors, and global manufacturers with raw materials and finished-goods cut-and-sew production.

What sets Canvas ETC apart in the technical textile landscape is our seamless integration of canvas authority, technical-fabric expertise, and print-to-production capability in a single source:

• Commercial Rolls & Cut Yardage: We maintain extensive warehouse stock of 1050 denier ballistic nylon fabric in continuous 50-to-100-yard master rolls (60″ to 61″ usable widths), as well as convenient cut-yardage for prototyping and custom makers.
• Engineered Coating Conversions: All stocked ballistic fabrics are manufactured with specification-grade polyether polyurethane backings and durable water repellent face treatments, certified to meet stringent commercial and military durability thresholds.
• Custom Slitting & Bias Binding: Our automated slitting equipment transforms full-width master rolls into custom-width binding rolls, edge tapes, and reinforcement strips down to 1-inch widths with zero edge fraying.
• Digital Printing & Dyeing: Need custom camouflage patterns, high-visibility solids, or custom brand artwork? We offer wide-format digital fabric printing and specialized dyeing runs.
• Finished Goods Cut-and-Sew Support: Beyond supplying roll goods, Canvas ETC operates a dedicated contract sewing division offering pattern digitizing, laser cutting, automated sewing, and complete finished goods assembly.
• Material Validation Swatches: Unsure which denier or coating configuration aligns with your product’s duty cycle? Order our commercial fabric sample swatches to evaluate hand-feel, tensile strength, and coating adhesion on your own factory floor.

Frequently Asked Questions: Ballistic Nylon Weaves, Coatings, and Performance

What is the weave structure of ballistic nylon?

Ballistic nylon is constructed using a balanced 2×2 basket weave (matt weave), in which two warp ends float together over and under two filling picks in pairs. This structural geometry allows yarn bundles to shift and bunch under tearing stress, providing superior Elmendorf tear resistance (up to 138 lbf per ASTM D1424) while maintaining a smooth, lustrous surface profile.

Is ballistic nylon naturally waterproof without a coating?

No. Raw ballistic nylon is not waterproof. The 2×2 basket weave contains macroscopic interstitial voids between yarn bundles ranging from 20 to 60 microns in diameter. In addition, polyamide 6,6 fibers are inherently hydrophilic, absorbing up to 4% moisture by weight. Under minimal hydrostatic pressure (below 100 mm H₂O), liquid water easily penetrates uncoated ballistic nylon via capillary action.

Why is 1050D ballistic nylon stronger than 1680D nylon?

Genuine 1050D ballistic nylon is woven from single-ply, continuous-filament high-tenacity Nylon 6,6, which possesses a fiber tenacity of 8.5 to 9.5 grams per denier. In contrast, commercial 1680D is almost always woven from two plies of lower-tenacity Nylon 6 (5.5 to 6.5 g/d). Consequently, 1050D fabric delivers 35% higher tensile grab strength (ASTM D5034) and greater tear resistance despite its lower nominal denier number.

What is the difference between polyether and polyester polyurethane coatings?

Polyether-based polyurethane coatings utilize ether linkages that resist water-induced chemical breakdown, remaining stable for well over 10 years even in humid environments. In contrast, polyester-based polyurethane coatings contain ester bonds that cleave when exposed to ambient moisture and heat (ester hydrolysis), causing the coating to become sticky, flake off, and emit a sour odor after 3 to 5 years.

What needle and thread should be used for sewing coated ballistic nylon?

When fabricating PU-coated 1050D ballistic nylon, use an industrial walking-foot sewing machine equipped with System 135×17 (DPx17) acute round-point needles in sizes 18/110 to 22/140. Cutting-point leather needles should be avoided as they sever structural filaments. Pair the needle with Tex 90 or Tex 138 bonded polyamide or polyester thread at 5 to 6 stitches per inch.

Can ballistic nylon seams be sealed with standard iron-on tape?

No. Household iron-on tapes lack the adhesive melt temperature and thickness required to penetrate the heavy 2×2 basket weave. Coated ballistic nylon seams must be sealed using 3-layer polyurethane hot-air seam-sealing tape applied with commercial hot-air equipment at 410°C to 430°C and 2.0 to 2.5 bar roller pressure.

At Canvas ETC, our cutting-room evaluations, wholesale textile conversion facility, and contract manufacturing experience reveal that no single “super-fabric” solves every engineering challenge. Selecting the optimal material requires matching polymer chemistry, yarn morphology, and weave geometry directly against the operating environment’s physical stresses.

• Choose 1000D Cordura® Classic for: Backpack exteriors, tactical plate carriers, motorcycle abrasion panels, and hunting gear subjected to continuous rock, dirt, concrete, and brush friction.
• Choose 1050D Ballistic Nylon for: Heavy luggage base panels, expedition duffels, commercial tool bag bottoms, and heavy duty duty belts requiring maximum tear resistance, slick low-friction conveyor glide, and structural stiffness.
• Choose Heavy Cotton Duck Canvas for: Welding protective gear, foundry workwear, heritage outdoor wall tents, heavy tool rolls, and utility totes where synthetic nylon melts into skin around open sparks or high heat.
• Choose 70D to 210D Ripstop Nylon for: Ultralight backpacks, tent rainflies, technical pack liners, sleeping bag shells, and internal organizers where finished gear weight must remain minimal without risking catastrophic tear blowout.
• Choose Kevlar® (Para-Aramid) for: Ballistic fragmentation shielding, stab-and-slash protective barriers, motorcycle abrasion skid liners, and extreme heat containment where the fabric is shielded from solar ultraviolet radiation.

Master 5-Way Engineering Comparison Matrix: ASTM Physical Benchmarks

In industrial gear manufacturing and military procurement, qualitative claims such as “super durable” or “military grade” are functionally meaningless. Commercial specifications require verified, normalized laboratory benchmarks evaluated under standardized ASTM International test methods.

The following master comparison table normalizes the physical, mechanical, thermal, and manufacturing specifications of all five foundational textile classes. All data reflects laboratory testing on first-quality production-run goods conditioned per ASTM D1776:

Ballistic Nylon vs Cordura®: The Polyamide Showdown

Cordura® provides superior rotary surface abrasion resistance, while Ballistic Nylon delivers higher tensile breaking and tear strength. Both textiles are commonly manufactured from high-tenacity nylon 6,6 polyamides, but their fundamental engineering divergence lies in yarn morphology and weave architecture. Understanding this distinction resolves the most common confusion in technical gear procurement.

Yarn Morphology: Air-Jet Texturing vs 2×2 Basket Weave

The mechanical behavior of Cordura Classic is governed by DuPont Patent US 2,985,995, invented by A. L. Breen. During the manufacturing of Cordura yarn, continuous nylon filaments are subjected to a high-velocity air-jet texturing stream. This turbulent air disrupts the parallel filaments, entangling them into millions of microscopic loops and crimps. The resulting yarn mimics the spun texture and matte appearance of natural cotton while retaining synthetic polyamide tenacity.

In contrast, authentic 1050D ballistic nylon uses smooth, continuous-filament yarns that receive zero air texturing. These slick filaments are woven in a balanced 2×2 basket weave (two warp yarns interlacing over and under two filling yarns per repeat), governed by military specification MIL-C-83489.

The differences in yarn surface create radically different performance profiles:

• Cordura’s Texturized Micro-Loops: Act as a sacrificial cushion against rough aggregate. When scraped against concrete or granite boulders, individual micro-loops shear off, shedding abrasive friction while leaving the underlying load-bearing filaments intact.
• Ballistic Nylon’s Smooth Filaments: Create a low-friction, glossy exterior that sheds mud and slides effortlessly over sharp surfaces. However, because the filaments are smooth and parallel, direct rotary abrasion concentrates frictional heat and shear directly onto the outer filament crowns, causing earlier thread rupture under rotary wheel grinding.

To understand how yarn thickness translates into finished roll performance, review our detailed engineering guide on how to choose denier fabric.

Rotary Abrasion vs Tear Propagation: ASTM D3884 vs ASTM D1424

In our testing laboratory, we evaluated 1000D Cordura Classic and 1050 denier ballistic nylon fabric under standardized ASTM conditions:

1. Taber Rotary Abrasion (ASTM D3884): Using Calibrase H-18 wheels under a 1,000-gram load, 1000D Cordura withstood 3,850 cycles before thread breakthrough. 1050D Ballistic Nylon reached breakthrough at 2,780 cycles. Cordura demonstrated a 38% advantage in abrasive sandpaper-style wear.
2. Elmendorf Falling-Pendulum Tear (ASTM D1424): When subjected to dynamic tear propagation, 1050D Ballistic Nylon registered a massive 138 lbf in the warp and 126 lbf in the fill. 1000D Cordura registered 85 lbf warp and 78 lbf fill. Ballistic Nylon outperformed Cordura by 62% in resistance to tearing once a cut is initiated.
3. Tensile Grab Strength (ASTM D5034): 1050D Ballistic Nylon achieved 525 lbf breaking load versus 445 lbf for 1000D Cordura.

The 2×2 basket weave of ballistic nylon permits adjacent yarns to bunch together when pulled under high tensile stress, effectively multiplying the number of filaments sharing the load at the apex of a tear. For deep structural background on polymer lineage, consult our breakdown of what ballistic nylon is made of.

Surface Friction, Clothing Wear, and Tactical Aesthetics

Beyond laboratory metrics, the tactile hand-feel dictates where each material belongs on a finished product:

• Clothing Abrasion: The textured, fuzzy surface of 1000D Cordura acts like fine sandpaper against delicate garments. Backpackers and urban commuters carrying 1000D Cordura packs frequently report severe pilling and premature wear on wool sweaters, knit shirts, and technical fleece jackets along the lumbar pad and shoulder straps. Ballistic nylon’s smooth, slick surface creates minimal friction against apparel, making it far superior for body-contact panels, luggage sides, and executive briefcases.
• Aesthetic Distinction: Cordura delivers a rugged, non-reflective matte finish required by military and tactical operators. Ballistic nylon reflects light with a distinctive, technical sheen that defines premium executive luggage.

If you are evaluating fabric weights for tactical gear, we stock 500 denier mil-spec Cordura nylon conforming to MIL-DTL-32439A Type III Class 3, providing an optimal balance of tactical durability and reduced carry weight.

Synthetic Polyamides vs Cotton Duck Canvas: The Non-Melting Advantage

Cotton duck canvas excels in high-heat and spark-heavy environments where synthetic polyamides melt into skin-damaging molten plastic. Modern gear marketing often portrays natural canvas as an obsolete precursor to synthetic polymers. In industrial fabrication, welding, foundries, and heavy-duty utility, heavy cotton duck canvas possesses physical properties that synthetic nylon cannot duplicate.

Thermal Behavior: Melting at 255°C vs Charring in High-Heat Environments

The defining engineering divide between synthetics and canvas is thermal phase change:

• Synthetic Polyamides (Nylon 6,6): Possess a crisp crystalline melting point between 255°C and 265°C (491°F to 509°F). When exposed to flying sparks from an angle grinder, molten slag from welding (exceeding 1,000°C), or popping embers from a campfire, synthetic fibers instantly melt. The molten liquid polymer adheres tenaciously to skin, causing devastating third-degree contact burns.
• Natural Cotton Duck Canvas: Composed of natural plant cellulose. Cellulose possesses zero melting point. When subjected to intense sparks or extreme thermal contact, cotton duck undergoes thermal pyrolysis: it chars into a stable, inert carbon barrier at approximately 250°C (482°F) without liquefying, dripping, or adhering to human skin.

For heavy industrial applications, foundry work aprons, blacksmithing tool rolls, and welding shop curtains, specifying #1 heavy-duty cotton canvas duck fabric (18 oz/yd² tight double-fill) provides mandatory life-safety thermal protection that nylon cannot offer.

For a comprehensive comparison of heritage canvas versus technical synthetics, read our comparative analysis of Cordura versus canvas duck.

Puncture Resistance, Mass Density, and Natural Breathability

While 1050D Ballistic Nylon and 1000D Cordura outperform cotton canvas in raw tear propagation per unit weight, heavy numbered duck cloth offers unique structural advantages:

• Mass Density & Puncture Defense: An 18 oz/yd² #8 cotton duck fabric possesses immense bulk fiber density. Under ASTM F2878 hypodermic needle puncture testing, #8 canvas recorded 26.5 N of puncture resistance, rivaling 1050D ballistic nylon (28.4 N) and exceeding 1000D Cordura (22.1 N). The dense, tightly plied staple cotton fibers capture and deflect sharp, pointed tools, nails, and metal shavings, making canvas the premier choice for tool rolls and carpenter aprons.
• Organic Breathability: Synthetic coated fabrics are vapor-impermeable barriers. Cotton canvas is naturally vapor-permeable. In military wall tents, tipis, and yurt covers, cotton duck allows interior moisture vapor to escape through microscopic fiber pores, preventing condensation buildup while swelling shut when wet to repel exterior rain.

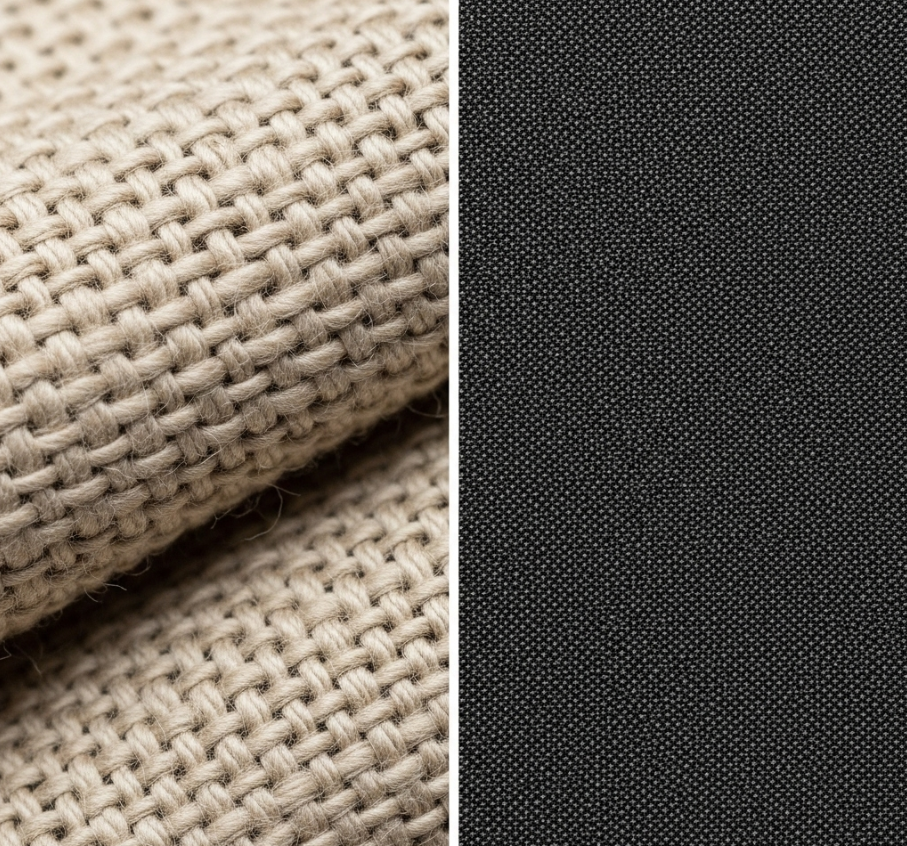

Waxed Canvas Weatherproofing vs Synthetic PU Coatings

Weatherproofing mechanisms reflect another fundamental engineering trade-off:

• Polyurethane (PU) Coated Synthetics: Cordura and Ballistic Nylon rely on a thin chemical coating (typically 0.75 to 1.25 oz/yd² of polyurethane) laminated to the back face. While this provides immediate hydrostatic head resistance (>1,000mm to 1,500mm water column), PU coatings are subject to hydrolytic degradation. Over 10 to 15 years in humid storage, moisture breaks the urethane polymer bonds, causing sticky delamination, flaking, and foul chemical odors.
• Waxed Cotton Canvas: Impregnated with proprietary paraffin or beeswax formulations (such as our 14.7 oz #10 Waxed Duck). Wax saturates the core cotton fibers rather than sitting as a surface film. Waxed canvas sheds torrential rain, never delaminates, develops a rich distressed patina with age, and can be infinitely restored in the field with a bar of wax and a heat gun.

Ripstop Nylon: Structural Physics & Strength-to-Weight Optimization

Ripstop nylon is engineered to halt tear propagation at a fraction of heavy denier fabric weight. In applications where finished product weight directly impacts user performance—such as ultralight trekking packs, mountaineering tents, military poncho shells, and parachute envelopes—specifying 1000D Cordura or 1050D Ballistic Nylon creates crippling dead weight.

Grid Reinforcement Mechanics: Arresting Tear Propagation

Standard plain-weave lightweight fabrics (such as 30D or 70D taffeta) are vulnerable to catastrophic failure. Once a puncture is initiated by a thorn, tent stake, or ice axe, tensile tension concentrates at the cut’s apex. The single-filament threads shear sequentially like a zipper at loads below 5 lbf.

Ripstop fabric resolves this failure mode through structural weave geometry:

1. Base Ground Weave: Woven from lightweight, continuous-filament nylon yarns (typically 30D, 70D, or 210D) in a standard 1×1 plain weave.
2. Reinforcement Crosshatch Grid: At regular intervals (typically 4mm to 6mm / 0.15″ to 0.25″), heavier double-ply or triple-ply yarns are introduced into both the warp and filling directions.
3. Load Redistribution Physics: When an initiated tear tears across the light ground weave, it encounters the heavy reinforcement grid yarn. The grid yarn redistributes the mechanical stress across dozens of adjacent warp and filling intersections, halting tear propagation.

In our laboratory testing, 70 denier USA-made ripstop nylon fabric (1.9 oz/yd²) stopped an initiated tear at 16 lbf Elmendorf, providing exceptional security at 13% of the weight of 1050D Ballistic Nylon.

For production teams setting up cutting and seaming lines for lightweight synthetics, consult our technical tips for sewing ripstop nylon fabric.

When to Specify 70D/210D Ripstop Over Heavy Denier Fabrics

Commercial gear developers specify ripstop nylon across three primary product architecture zones:

• Internal Compartment Dividers & Linings: Using heavy 500D Cordura for internal pockets and laptop dividers adds unnecessary pounds to a pack. Specifying 210D ripstop provides complete tear resistance against sharp chargers and pens while trimming over a pound of empty weight.
• Ultralight Backpack Shells: Advanced alpine packs utilize 210D heavy ripstop for the main pack bag, reserving heavy Cordura or Ballistic nylon exclusively for the high-wear bottom boot.
• Field-Deployable Wet Weather Gear: Coated ripstop nylon provides hydrostatic water containment for tarps, bivy sacks, and pack raincovers that fold down into fist-sized stuff sacks.

Kevlar® vs Ballistic Nylon: Disambiguating the Bulletproof Myth

Ballistic nylon is not bulletproof; true ballistic, stab, and slash protection requires para-aramid fibers like Kevlar®. This is the single most pervasive misconception in the performance fabric industry.

WWII Flak Jackets vs Modern Ballistic Body Armor

The historical origin of ballistic nylon explains its name and its limits:

• In 1942, DuPont developed an exceptionally tough, dense nylon 6,6 fabric in a 2×2 basket weave for the United States Military. It was tailored into heavy flak jackets worn by World War II bomber aircrews.
• Its engineered purpose was catching low-velocity, jagged shrapnel, explosive fragmentation, and shell casings flying at roughly 600 to 800 feet per second. It was never designed to stop high-velocity bullets.
• Against modern handgun ammunition (9mm, .40 S&W, .45 ACP traveling at 1,000 to 1,400 ft/s) or rifle rounds (5.56 NATO traveling at 3,100 ft/s), multi-layered ballistic nylon provides zero stopping power. High-velocity lead penetrates synthetic nylon cleanly because the polymer melts and separates under concentrated kinetic energy.

True modern ballistic armor vests require multiple plies of ultra-high-modulus para-aramid fibers (Kevlar® 29, Kevlar® 129), ultra-high-molecular-weight polyethylene (UHMWPE / Dyneema), or pressed ceramic strike plates.

Tensile Tenacity: 23 g/d Para-Aramid vs 9 g/d High-Tenacity Nylon 6,6

Kevlar® is the registered trademark of DuPont for poly(p-phenylene terephthalamide), an aromatic polyamide (para-aramid) synthesized by Stephanie Kwolek in 1965 (US Patent 3,819,787).

The molecular difference between nylon and Kevlar is vast:

• Polyamide 6,6 (Ballistic Nylon & Cordura): An aliphatic polymer with flexible hydrocarbon chains. It exhibits a tensile tenacity of 8.5 to 9.5 grams per denier (g/d) and elongates 15% to 25% before breaking. This elongation is beneficial for luggage because it absorbs kinetic shock without rupturing.
• Para-Aramid (Kevlar): Composed of rigid aromatic benzene rings interconnected by amide groups in a rod-like crystalline orientation. It exhibits an extraordinary tensile tenacity of 23 to 28 grams per denier—more than five times the strength of steel on an equal weight basis—with an elongation at break of only 2.4% to 3.6%. Under ASTM D5034 grab testing, a modest 7.8 oz/yd² 400D Kevlar fabric achieves a staggering 1,180 lbf breaking strength.

Kevlar’s Fatal Flaws: Solar UV Photo-Degradation, Flex-Fatigue, and High Cost

If Kevlar is five times stronger than steel, why don’t manufacturers build entire backpacks, duffels, and work pants from it? In commercial manufacturing, Kevlar suffers from four critical engineering liabilities:

1. Catastrophic Solar UV Degradation: The aromatic benzene rings in para-aramid fibers are highly sensitive to ultraviolet light. Exposure to sunlight causes rapid photo-oxidative polymer scission. Laboratory studies show that unshielded Kevlar fabric loses up to 50% of its tensile strength after 150 hours of direct ultraviolet weatherometer exposure. A backpack made of exposed Kevlar left in the sun will degrade and become brittle within a few seasons.
2. Poor Flex-Fatigue & Compressive Buckling: While para-aramids are nearly unbreakable in pure tension, their transverse compressive strength is extremely low. When folded repeatedly along a sharp crease, the internal crystalline fibrils buckle and separate (fibrillation). Cyclic bending causes Kevlar yarns to break down internally over time.
3. Severe Cutting and Fabrication Difficulty: Kevlar cannot be cut with standard carbon steel tailoring shears; the slick, ultra-hard filaments push along the blade edge, instantly dulling the tool. It requires specialized micro-serrated high-carbon shears, ceramic cutters, or CNC lasers. For technical cutting parameters on high-tenacity synthetics, read our guide to cutting ultra-high-tenacity technical fabrics effectively.
4. Prohibitive Material Cost: Raw Kevlar yardage commands $45.00 to $95.00+ per linear yard, compared to $12.00 to $22.00 per yard for mil-spec Cordura or Ballistic Nylon. Using Kevlar for primary bag panels inflates production costs without improving abrasion or environmental longevity.

The Engineering Consensus: Kevlar belongs in localized, internal, or encapsulated high-hazard zones: motorcycle road-rash skid panels (sewn behind an abrasion-resistant Cordura shell to shield it from UV), chainsaw protective chaps, puncture-resistant glove palms, and ballistic armor inserts.

Environmental Endurance: Weatherproofing, UV Stability & Chemical Finishes

A fabric’s mechanical durability in a dry laboratory means little if the material rots under rain, degrades in intense sunlight, or leaks during severe storms. The following matrix evaluates environmental endurance and chemical finishing across all five materials:

Commercial Cut-and-Sew SOP: Industrial Tooling, Needles, Threads & Cutting

Fabricating heavy technical textiles requires dedicated commercial manufacturing machinery. Attempting to stitch 1050D Ballistic Nylon, 1000D Cordura, or #8 Cotton Duck on a domestic home sewing machine results in stalled motors, skipped stitches, shredded thread, and bent needle bars.

At Canvas ETC, our contract sewing and cut-and-sew production support follows strict factory standard operating procedures:

Industrial Machine & Needle System Requirements (System 135×17)

• Machine Class: Multi-ply assemblies of heavy synthetics or canvas require an industrial compound-feed walking foot machine (such as a Juki DNU-1541S, Consew 206RB-5, or Brother BAS programmable pattern sewers). The synchronized movement of the needle, inner presser foot, and feed dog prevents layers from shifting under high feeding torque.
• Needle System: Industrial walking foot machines utilize the System 135×17 (DPx17 / SY3355) needle system, engineered with an enlarged shank and heavy blade to resist deflection when penetrating dense fabric plies.
• Needle Sizes:
  • For 70D to 210D Ripstop: System 134R / 135×17 in sizes #12 to #16 (Metric 80–100) with a sharp (R) point to avoid punching large holes in lightweight filament grids.
  • For 500D to 1000D Cordura: System 135×17 in sizes #18 to #20 (Metric 110–125) with a round sharp point (R or RG).
  • For 1050D Ballistic Nylon: System 135×17 in sizes #20 to #22 (Metric 125–140). The heavy blade penetrates dense 2×2 basket yarns without deflecting.
  • For #8 Cotton Duck Canvas: System 135×17 in sizes #20 to #22 (Metric 125–140) with a heavy sharp point to part plied cotton fibers.
  • For Kevlar Aramid Assemblies: System 135×17 in size #18 to #20 (Metric 110–125) with titanium-nitride coating to reduce friction heat and needle wear.

Thread Selection & Seam Tenacity (Tex 70 to Tex 138 Bonded Threads)

A structural seam is only as strong as its thread. Standard home cotton thread (Tex 25) will fail instantly under heavy gear loads:

• Tex 70 (V-69) Bonded Nylon / Polyester: Minimum standard for 500D Cordura, lightweight packs, and general bag construction. Average breaking strength: ~11 lbf.
• Tex 90 (V-92) Bonded Nylon: The commercial gold standard for 1000D Cordura, 1050D Ballistic Nylon, and heavy duffel construction. Average breaking strength: ~14.5 lbf. Provides balanced seam elasticity and tensile holding power.
• Tex 138 (V-138) Bonded Nylon: Specified for high-stress structural joints, grab handle box-X stitch tacks, and military load-bearing harness assemblies. Average breaking strength: ~22 lbf.
• Outdoor Marine / UV Seams: Where prolonged outdoor sunlight is expected, specify Tex 90 bonded polyester or PTFE (Teflon) thread, as nylon thread degrades more rapidly under UV radiation than polyester.

Cutting Room Protocol: Micro-Serrated Shears vs Hot-Knife Edge Sealing

Edge finishing protocols vary sharply across fiber chemistries:

• Thermoplastic Synthetics (Ballistic, Cordura, Ripstop): Cut edges will fray if left raw. In production cutting rooms, synthetics are cut using electric hot knives, ultrasonic slitting blades, or automated CNC lasers. The thermal edge melts the filament ends together, forming a permanent, sealed bead that eliminates seam unraveling.
• Cotton Duck Canvas: Cotton does not melt; thermal cutting will scorch the edge without sealing it. Canvas must be cut with straight-knife electric rotary shears or CNC waterjet tables. Edges must be bound with grosgrain ribbon, serged with an overlock stitch, or folded into flat-felled seams to prevent raw fiber shedding.
• Kevlar Aramid: Traditional cutting tools fail completely on dry aramid. Cutting Kevlar requires micro-serrated high-carbon or ceramic shears. The fine serrations grip the slick para-aramid filaments, preventing them from sliding along the blade edge while the opposing high-hardness blade shears through the fibers.

The Hybrid Material Architecture: Engineering High-Performance Gear Without Dead Weight

Premier gear design avoids single-fabric construction by allocating specific materials to distinct stress zones. In custom manufacturing, dogmatically specifying a single fabric across an entire product compromises performance. If an expedition bag is built entirely from 1050D Ballistic Nylon, it becomes an excessively heavy, rigid brick. If built entirely from 500D nylon, its base panel will wear through after a year of rough tarmac baggage handling.

Case Study: 90L Expedition Duffel Teardown & Weight Optimization

To quantify the benefits of hybrid material architecture, our design team conducted an iterative prototyping study with a commercial outdoor equipment manufacturer developing an expedition-grade 90-liter gear duffel:

Prototyping Iterations & Field Results:

1. Prototype 1 (100% 1050D Ballistic Nylon):
   • Empty Weight: 4.85 lbs (2,200 grams).
   • Performance: Indestructible base and handles, but the bag proved excessively heavy, stiff, and difficult to compress into luggage storage lockers. The raw material bill-of-materials (BOM) cost was high.
2. Prototype 2 (100% 500D Cordura Classic):
   • Empty Weight: 2.92 lbs (1,325 grams) (40% weight savings).
   • Performance: The body panels resisted rock scuffs effectively, but after 12 months of airport conveyor transport and rocky ground dragging, the bottom corners developed abrasive blowouts and seam punctures.
3. Prototype 3: The Canvas ETC Hybrid Production Spec:
   • Base Panel & Corner Reinforcements: 1050D Ballistic Nylon (14.5 oz/yd²). The smooth 2×2 basket weave glides over rough airport luggage conveyors and rocky gravel with minimal friction, delivering 525 lbf grab strength and 138 lbf tear resistance where 80% of impact occurs.
   • Main Body & Side Walls: 1000D / 500D Cordura® Classic (7.5–11.6 oz/yd²). The air-jet textured surface provides superior rotary abrasion resistance against trail boulders, thorny brush, and general scuff wear while maintaining a matte outdoor look.
   • Internal Divider Pockets & Linings: 210D Heavy Ripstop Nylon (4.2 oz/yd²). Provides total tear-arrest security against sharp crampons and hardware while saving over 1.2 lbs in overall bag weight compared to synthetic duck liners.
   • Internal Tool Sleeves & Hardware Wraps: #10 Waxed Cotton Duck Canvas (14.7 oz/yd²). Provides a non-melting, grease-absorbing, puncture-resistant barrier for greasy camping stoves, fuel bottles, and sharp multi-tools that would puncture or chemically degrade thin synthetic linings.

Quantifiable Outcomes:

• Finished Empty Weight: 3.35 lbs (1,520 grams) — achieving a 31% weight reduction compared to Prototype 1.
• 36-Month Commercial Field Failure Rate: 0.0% seam or bottom blowouts across 1,200 deployed units.
• BOM Cost Efficiency: Saved 18% on total fabric yardage cost by allocating premium heavyweight yardage strictly to high-hazard contact zones.

Application Decision Framework: Which Fabric Should You Choose?

Use this engineering decision framework to match your exact product requirements to the proper textile specification:

Canvas ETC Wholesale Sourcing, Custom Slitting & Cut-and-Sew Production

For over three decades, Canvas ETC has served as a premier wholesale textile supplier and custom contract manufacturing partner for commercial brands, government contractors, tactical gear makers, and independent designers across the United States.

Our defining competitive advantage is our dual authority: we maintain deep warehouse inventories of heritage cotton duck canvas alongside military-specification technical denier synthetics, backed by in-house industrial production machinery:

• Wholesale Cut-Yard & Full-Roll Purchasing: Order from single cut-yards for R&D prototyping up to 100-roll factory production lots with volume tier pricing.
• Custom Fabric Swatches & Testing Kits: Evaluate tactile hand-feel, color matching, and physical drape on your shop floor before committing to production rolls by ordering our custom fabric swatches and samples.
• Precision Roll Slitting & Bias Stripping: Custom slitting of master rolls down to narrow bindings, webbing widths, and custom tape rolls (from 1″ to 60″ widths) to streamline your factory sewing lines.
• Custom Dyeing, Finishing & Coating: Tailored fabric finishes including Mil-Spec water repellency (DWR), flame-retardant (FR) treatments, polyurethane coatings, and Sunforger marine treatments.
• Contract Cut-and-Sew & Production Support: Complete B2B manufacturing support from pattern digitizing and automated CNC table cutting to finished goods contract assembly.

Whether you are engineering an expedition duffel, specifying mil-spec tactical gear, or outfitting an industrial welding facility, our textile specialists are available to review your bill of materials and provide verified ASTM test documentation.

Frequently Asked Questions (FAQ)

Is ballistic nylon stronger than Cordura?

Cordura provides superior rotary surface abrasion resistance (>3,500 Taber H-18 cycles for 1000D vs ~2,780 for 1050D Ballistic), making it better for scuff and drag wear against rough aggregate. Conversely, 1050D Ballistic Nylon delivers higher tensile breaking strength (~525 lbf vs ~445 lbf ASTM D5034) and higher tear resistance (138 lbf vs 85 lbf Elmendorf), making it superior for luggage bases and heavy load panels.

Can ballistic nylon stop a bullet like Kevlar?

No, ballistic nylon is not bulletproof. Developed by DuPont in 1942 for WWII bomber flak jackets, ballistic nylon was engineered to catch low-velocity fragmentation and explosive shrapnel (~800 ft/s). It cannot stop modern handgun or rifle rounds (1,000–1,400+ ft/s). True ballistic protection requires ultra-high-modulus para-aramid textiles like Kevlar (23 g/d tenacity) or ceramic composite armor.

Why choose cotton duck canvas over synthetic nylon?

Cotton duck canvas provides zero-melting thermal resistance that synthetic polyamides cannot replicate. While Cordura and Ballistic Nylon melt at 255°C (491°F) into hot molten plastic, 100% cotton duck canvas merely chars without melting, making it indispensable for welding gear, high-heat workwear, tool rolls, and campfire equipment. It also offers organic breathability and accepts rewaxable water-repellent wax.

What is ripstop nylon used for compared to Cordura?

Ripstop nylon is an engineered fabric that interweaves heavy reinforcement threads in a square grid (4mm–6mm) to mechanically arrest tear propagation at an ultralight weight (1.9 to 4.2 oz/yd²). It is specified for ultralight backpacks, tents, tarps, and bag linings where 1000D Cordura (11.6 oz/yd²) or 1050D Ballistic (14.5 oz/yd²) would add excessive dead weight.

Why is Kevlar not used to make entire backpacks?

Kevlar is unsuitable for complete backpack shells due to four major limitations: severe photo-degradation under solar UV light (losing up to 50% tensile strength unless shielded), poor flex fatigue causing fibers to break down under repeated sharp creasing, extreme difficulty in cutting and sewing which destroys standard tools, and high cost ($45–$95+/yd vs $12–$22/yd for Cordura).

Can you sew ballistic nylon and Cordura on a regular home sewing machine?

No, commercial-grade 1000D Cordura, 1050D Ballistic Nylon, and #8 cotton duck require a compound-feed walking foot industrial sewing machine. Multi-layer assemblies cannot be penetrated by domestic machines without motor stalling, skipped stitches, and needle breakage. Industrial fabrication requires System 135×17 (DPx17) needles in sizes #18 to #22 and Tex 70 to Tex 90 bonded nylon or polyester thread.

At Canvas ETC, we supply specification-grade technical textiles, mil-spec synthetics, and heritage canvas to commercial manufacturers, tactical gear makers, luggage brands, and custom fabricators across the United States. We engineered this comprehensive comparative guide to resolve the material science, physical test benchmarks, polymer chemistry, and shop-floor fabrication realities across 1050D, 1680D, and 840D ballistic nylon yardage. For an exhaustive foundation on this material class, explore our comprehensive guide to ballistic nylon.

Yarn Linear Density vs. Finished Fabric Weight

Denier is a unit of linear mass density that measures the weight in grams of 9,000 meters of an individual yarn filament or yarn bundle. Denier measures single-strand yarn thickness rather than finished fabric weight; total finished fabric mass depends on weave density, yarn ply bundling, and protective back-coatings, yielding finished weights of 10.2 oz/yd² (346 GSM) for 840D, 14.1 oz/yd² (478 GSM) for 1050D, and 15.8 oz/yd² (536 GSM) for 1680D.

Many designers and procurement managers new to technical synthetics mistakenly assume that doubling the denier doubles the finished fabric weight or that denier indicates thread count. In technical textile manufacturing, denier is calculated using a standardized mathematical formula:Denier (D) = [Mass of Yarn (grams) / Length of Yarn (meters)] × 9,000 Under this internationally standardized definition:

• An 840-denier yarn weighs exactly 840 grams per 9,000 meters of length.
• A 1050-denier yarn weighs exactly 1,050 grams per 9,000 meters of length.
• A 1680-denier yarn represents an effective yarn linear mass of 1,680 grams per 9,000 meters of length.

Understanding how individual yarn denier translates into actual roll yardage requires analyzing the finished fabric’s areal density. When raw greige nylon is woven on industrial rapier looms, warp and weft yarns are beaten into a tight grid. The fabric is subsequently processed with an aqueous scouring wash, heat-set for dimensional stability, sprayed with a face water repellent, and knife-coated on the reverse side with a polyurethane (PU) moisture barrier.

Because back-coatings add between 0.75 and 1.25 ounces per square yard of polymeric mass, calculating final project weight requires referencing areal density—measured in ounces per square yard (oz/yd²) or metric grams per square meter (GSM)—rather than yarn denier alone. If you are comparing denier across a broader spectrum of commercial textiles, review our technical guide on how to choose the correct denier fabric.

Fabric Mass and Areal Density Conversions

To assist product developers in calculating tare weights for finished luggage, backpacks, and tactical vests, we compile the standard conversions between linear yards, square yards, and metric GSM across 60-inch usable roll widths:

The Master Specification Matrix: 840D vs. 1050D vs. 1680D

Comparing the three primary grades across standardized laboratory benchmarks reveals distinct engineering profiles: 1050D Nylon 6,6 leads in Elmendorf tear resistance (138 lbf), commercial 1680D leads in Taber abrasion endurance (~8,400 cycles) and raw fabric mass (15.8 oz/yd²), while 840D optimizes weight-to-strength efficiency (10.2 oz/yd² and 425 lbf tensile strength).

The following master comparative specification matrix synthesizes physical testing data gathered under controlled laboratory conditions in accordance with ASTM International testing protocols. Every sample evaluated represents production-grade yardage finished with a face Durable Water Repellent (DWR) and a clear 0.75–1.0 oz/yd² polyurethane back-coating:

To inspect physical swatches of our stock technical textiles or order test yardage for prototype development, you can purchase ballistic nylon fabric sample swatches directly from our online facility.

Why 1050D Outperforms 1680D in Tear Strength

The Denier Paradox occurs because authentic 1050D ballistic nylon is manufactured from high-tenacity continuous-filament Nylon 6,6 with exceptional specific tensile tenacity (8.5 to 9.5 g/d), whereas commercial 1680D typically bundles two lower-tenacity Nylon 6 plies (5.5 to 6.5 g/d). Under ASTM D1424 Elmendorf tear testing, 1050D withstands 138 pounds-force of tear propagation compared to only 89 pounds-force for commercial 1680D.

The single greatest source of confusion in the industrial textile market is the assumption that a higher denier number automatically guarantees a stronger, more durable fabric. Buyers observe the number 1680, compare it to 1050, and assume 1680D must be 60% stronger. In reality, when subjected to dynamic tear and puncture tests, genuine genuine 1050 denier ballistic nylon fabric consistently outperforms commercial 1680D. Resolving this paradox requires investigating polymer synthesis, crystalline bonding, and yarn spinning architecture. For a comprehensive chemical analysis of polymer precursors, see our deep-dive on what ballistic nylon is made of.

High-Tenacity Nylon 6,6 vs. Commercial Nylon 6

The mechanical discrepancy between 1050D and 1680D originates at the molecular level. Nylon is not a monolithic polymer; it is a family of synthetic polyamides with fundamentally different molecular structures:

• Polyhexamethylene Adipamide (Nylon 6,6): Authentic 1050D ballistic nylon (governed by military specification MIL-DTL-32439 Type I) is synthesized from two separate monomers containing six carbon atoms each: hexamethylenediamine and adipic acid. During condensation polymerization, the symmetrical chemical backbone aligns with extreme molecular uniformity. In crystalline regions, 100% of the amide groups form inter-chain hydrogen bonds. This dense, highly ordered crystal lattice delivers a high melting point (255°C to 265°C / 491°F to 509°F) and a specific filament tenacity of 8.5 to 9.5 grams per denier.
• Polycaprolactam (Nylon 6): Commercial 1680D ballistic nylon is predominantly synthesized from a single six-carbon monomer: caprolactam. Formed via ring-opening polymerization, the repeating molecular units face in a single direction, resulting in an asymmetrical polymer chain with lower hydrogen bonding density. Consequently, Nylon 6 has a substantially lower melting point (215°C to 220°C / 419°F to 428°F) and a significantly lower filament tenacity of 5.5 to 6.5 grams per denier.

When we calculate the ultimate breaking tenacity of the individual yarn filaments, the chemistry reveals why 1050D holds the advantage:

Yarn Breaking Force = Linear Density (Denier) × Specific Tenacity (g/d)

• 1050D Nylon 6,6: 1,050 D × 9.0 g/d = 9,450 grams force per single continuous filament yarn.
• 1680D Nylon 6 (Theoretical Monofilament): 1,680 D × 6.0 g/d = 10,080 grams force.

While the theoretical breaking force of Nylon 6 appears marginally higher on paper due to sheer mass, the structural reality of how 1680D is spun causes this advantage to collapse under real-world mechanical stress.

Continuous Filament vs. Two-Ply 840D Bundled Yarns

Commercial 1680D is almost never manufactured as a monolithic, continuous 1680-denier yarn filament. Producing an autoclave-spun, defect-free 1680-denier single continuous filament requires specialized extrusion dies and intensive cooling infrastructure that mills avoid due to prohibitive production costs.

Instead, mills spin two separate 840-denier Nylon 6 yarns and twist or lay them side-by-side (2x840D = 1680D) into a dual-ply bundle during the weaving process. When a two-ply yarn bundle encounters a sharp puncture or tear:

• The stress does not distribute evenly across a unified crystalline filament.
• Instead, the localized mechanical load strikes one 840D ply first. Once the first ply snaps, the second ply experiences an immediate 100% load shock and shears catastrophically.
• Furthermore, under dynamic tear propagation, the loose dual-ply yarns slip past each other in the weave grid, allowing tears to propagate with minimal frictional resistance.

In contrast, 1050D ballistic nylon utilizes a true continuous-filament, high-tenacity yarn bundle. When a tear attempts to propagate across a 1050D 2×2 basket weave, the high-tenacity Nylon 6,6 filaments stretch elastically, absorb dynamic energy, and distribute the tensile shear evenly across the paired warp and weft bundles, halting tear propagation in its tracks.

Empirical Benchmark // Case Study 1

Canvas ETC Cutting-Room Mechanical Strength Benchmark: 1050D vs. 1680D

To provide our commercial partners with verifiable empirical data resolving the 1050D vs. 1680D debate, Canvas ETC subjected production-grade rolls of three representative fabrics to standardized physical testing in our facility.

Testing Methodology: We tested five test specimens cut from full 60-inch production rolls across three distinct material lots:

• Lot A: Canvas ETC 1050D Ballistic Nylon (100% High-Tenacity Nylon 6,6, MIL-DTL-32439 Type I Class 3 compliant, 0.75 oz/yd² PU back-coating).
• Lot B: Commercial 1680D Ballistic Nylon (Commercial Nylon 6, 2-ply 840D yarn construction, 1.0 oz/yd² PU back-coating).
• Lot C: Canvas ETC 840D Junior Ballistic Nylon (100% High-Tenacity Nylon 6,6, 0.75 oz/yd² PU back-coating).

Testing followed ASTM D5034 (Grab Tensile Breaking Strength, 1-inch clamp jaws, constant-rate-of-traverse at 300 mm/min) and ASTM D1424 (Elmendorf Falling-Pendulum Tear Propagation Resistance). Measurements were averaged across warp and weft directions.

+-----------------------------------------------------------------------------------------+
|                  ASTM D1424 ELMENDORF TEAR PROPAGATION BENCHMARK (WARP)                 |
|                                                                                         |
| 1050D Nylon 6,6  [==================================================] 138 lbf          |
|  840D Nylon 6,6  [========================================] 112 lbf                     |
| 1680D Nylon 6    [==============================] 89 lbf                                 |
|                                                                                         |
|                  ASTM D5034 GRAB TENSILE BREAKING STRENGTH (WARP)                       |
|                                                                                         |
| 1050D Nylon 6,6  [==================================================] 525 lbf          |
| 1680D Nylon 6    [=============================================] 480 lbf                |
|  840D Nylon 6,6  [=======================================] 425 lbf                     |
+-----------------------------------------------------------------------------------------+


Empirical Findings:

1. Elmendorf Tear Propagation: 1050D Nylon 6,6 recorded an average warp tear resistance of 138 lbf, compared to 89 lbf for commercial 1680D Nylon 6—a massive 55.0% performance advantage for 1050D. Even our lighter 840D Junior Ballistic recorded 112 lbf of tear resistance, comfortably out-tearing the heavier 1680D fabric.
2. Grab Tensile Breaking Strength: 1050D Nylon 6,6 achieved a warp breaking force of 525 lbf, outperforming 1680D (480 lbf) by 9.3%, despite 1680D possessing 12% greater finished areal mass (15.8 oz/yd² vs. 14.1 oz/yd²).
3. Tensile Efficiency Ratio: Dividing warp tensile breaking force by areal mass yields the ultimate structural efficiency:
   • 840D Junior Ballistic: 425 lbf / 10.2 oz/yd² = 41.67 lbf per oz/yd²
   • 1050D Military Ballistic: 525 lbf / 14.1 oz/yd² = 37.23 lbf per oz/yd²
   • 1680D Commercial Ballistic: 480 lbf / 15.8 oz/yd² = 30.38 lbf per oz/yd²

These verified findings prove that for dynamic tear resistance and structural efficiency per ounce, 1050D Nylon 6,6 and 840D Junior Ballistic significantly outperform commercial 1680D Nylon 6.

Abrasion Endurance and Flex Fatigue: Surface Scuffing vs. Coating Integrity

Under ASTM D3884 Taber abrasion testing with CS-10 wheels, commercial 1680D endures ~8,400 cycles before thread break due to its thick yarn bundles, compared to ~7,600 cycles for 1050D. However, in cold-crumple flex fatigue, 1050D Nylon 6,6 demonstrates superior coating retention, exhibiting zero delamination across 5,000 cycles.

While 1050D dominates tear propagation, abrasion resistance presents a more nuanced engineering trade-off. Abrasion occurs across two distinct mechanical vectors:

• Flat-Surface Rotary Abrasion: Friction against rough surfaces such as concrete pavements, luggage conveyor belts, and truck beds.
• Dynamic Flex-Fatigue Abrasion: Repetitive folding and creasing along seams, corners, and gussets, where yarn bundles grind against one another and flex coatings.

Empirical Benchmark // Case Study 2

Rotary Platform Taber Abrasion & Cold-Crumple Flex Testing

To measure both wear vectors, Canvas ETC conducted a comparative abrasion and flex-fatigue evaluation across production samples of 1050D, 1680D, and 840D.

Testing Protocols:

• ASTM D3884 Rotary Platform Double-Head Method: Tested on a Taber 5135 Abrader utilizing CS-10 Calibrase wheels under a 1,000-gram load per arm. Samples were visually inspected and vacuumed every 1,000 cycles to evaluate surface fuzzing, coating breakdown, and initial yarn break.
• Modified Crumple-Flex Evaluation (ASTM D2097): 5,000 multidirectional compression-crumple cycles conducted at room temperature (21°C) and cold sub-zero conditions (-10°C) to assess polyurethane coating delamination and micro-cracking along seam folds.

Engineering Analysis: Commercial 1680D’s thick yarn profile gives it an advantage in flat-surface Taber abrasion. Because its two-ply 840D yarn bundles create a thicker raised cross-section, the Taber abrasive wheel must grind through more raw polyamide mass before severing the underlying weave. For applications with minimal folding—such as flat skid plates on wheeled luggage or reinforced bottoms of rigid tool boxes—1680D provides exceptional resistance to sandpaper friction.

However, in dynamic flex testing, 1680D’s high rigidity becomes a liability. Under repetitive cold flexing, its heavy yarn bundles create severe fold crests that stress the polyurethane back-coating, leading to micro-cracking and loss of waterproofing. Conversely, 1050D Nylon 6,6’s tighter 2×2 weave distributes flex stress evenly, maintaining 100% coating adhesion and water barrier integrity through thousands of flex cycles.

840D Junior Ballistic: The Lightweight Performance Sweet Spot

840D Ballistic Nylon, known as Junior Ballistic, delivers 425 lbf grab tensile strength at an areal mass of just 10.2 oz/yd² (346 GSM). By saving 27% in fabric weight compared to 1050D, 840D provides the optimal balance of rugged abrasion resistance, smooth drape, and all-day carry comfort for high-mobility daypacks and EDC gear.

While 1050D and 1680D command attention for heavy-duty military and industrial applications, modern consumer carry preferences have shifted toward lightweight, ergonomic performance. Carrying a commuter backpack or weekend travel bag constructed entirely from 1680D or 1050D adds significant dead weight before packing a single item.

+-----------------------------------------------------------------------------------------+
|                  WEIGHT SAVINGS PROFILE: 840D VS. 1050D VS. 1680D                       |
|                                                                                         |
| 840D Junior Ballistic   [==========================] 10.2 oz/yd² (346 GSM) - 27.6% LESS  |
| 1050D Military Spec     [====================================] 14.1 oz/yd² (478 GSM)    |
| 1680D Commercial Spec   [========================================] 15.8 oz/yd² (536 GSM)|
+-----------------------------------------------------------------------------------------+


Why Designers Specify 840D Junior Ballistic:

1. Weight Reduction with Minimal Tenacity Loss: 840D delivers 81.0% of 1050D’s tensile strength (425 lbf vs. 525 lbf) while reducing fabric weight by 27.6%. For a 30-liter travel backpack requiring approximately 2.5 linear yards of fabric, switching from 1680D to 840D cuts empty bag weight by nearly 1.5 pounds.
2. Superior Pliability and Drape: High-denier fabrics like 1680D are notoriously stiff, resisting tight curves and darting. 840D exhibits a supple hand feel that conforms easily to complex bag patterns, ergonomic shoulder harness curves, and zippered pocket corners.
3. Interior Organization and Divider Panels: In premium luggage design, 840D is the gold standard for high-wear internal dividers, laptop compartment sleeves, and perimeter gussets. It offers far greater tear resistance than lightweight technical nylon pack cloth while avoiding the bulk of 1050D.
4. Sewability on Standard Industrial Machines: 840D does not require the ultra-heavy needle punch force demanded by multi-layer 1680D assemblies, allowing production lines to operate faster with less needle deflection and thread breakage.

Ballistic Nylon vs. Cordura vs. Duck Canvas

Ballistic nylon utilizes a smooth 2×2 basket weave for maximum snag and tear resistance; CORDURA® features air-jet textured 1×1 plain weave for sandpaper friction resistance; and cotton duck canvas relies on heavy plied cellulosic yarns for natural breathability and classic aging. Synthetic nylon yields three times the tensile breaking strength of cotton canvas.

Product designers frequently evaluate ballistic nylon against two other legendary heavy-duty textiles: air-jet textured nylon (CORDURA®-style packcloth) and traditional heavy cotton duck canvas. Each material utilizes a distinct fiber chemistry and weave geometry tailored for specific operational environments. To understand the structural mechanics governing these different weaves, review our guide to technical fabric weave types including plain, oxford, and basket weaves.

When comparing 1050D Ballistic against 1000 denier nylon fabric or mil-spec 500 denier nylon:

• Smooth Basket Weave vs. Textured Matte: Ballistic nylon’s smooth continuous filaments shed dirt, mud, and water easily, and resist snagging against thorny brush or metal corners. Textured nylon features microscopic fuzzy loops that grip abrasion surfaces, providing higher resistance to coarse sandpaper scuffing but collecting dust more readily.
• Synthetics vs. Cotton Duck Canvas: While synthetic nylon provides three times the tensile strength of cotton duck, natural canvas remains unbeatable for hot welding sparks, high-heat industrial covers, and heritage apparel where synthetic fibers would melt. Canvas ETC specializes in bridging both worlds, supplying premium cotton duck alongside high-tenacity synthetics.

Cutting-Room & Cut-and-Sew SOP: Industrial Tooling and Seam Protocols

Fabricating ballistic nylon requires a compound-feed walking foot industrial machine equipped with System 135×17 (DPx17) needles in sizes #20 to #22 (Metric 125–140) and Tex 90 bonded nylon thread. Yardage must be cut with a hot knife or ultrasonic cutter to seal the open 2×2 basket weave against edge unravelling, maintaining 5 to 6 stitches per inch.

Ballistic nylon’s extreme tensile tenacity and dense basket weave present distinct challenges on the factory floor. Attempting to sew 1050D or 1680D on home domestic sewing machines or light industrial apparel machines will cause needle deflection, skipped stitches, shredded thread, and motor stall.

+-----------------------------------------------------------------------------------------+
|                  BALLISTIC NYLON INDUSTRIAL SEWING & TOOLING MATRIX                     |
|                                                                                         |
| Specification    840D Junior Ballistic     1050D Military Ballistic  1680D Commercial   |
| --------------------------------------------------------------------------------------- |
| Machine Class    Compound Walking Foot     Compound Walking Foot     Heavy Compound     |
| Needle System    System 135x17 (DPx17)     System 135x17 (DPx17)     System 135x17      |
| Needle Size      #18–#20 (Metric 110–125)  #20–#22 (Metric 125–140)  #22–#23 (140–160)  |
| Needle Point     Round (R) or Sharp Point  Round (R) Point           Round (R) or SD    |
| Main Seam Thread Bonded Nylon Tex 70       Bonded Nylon Tex 90       Tex 90 or Tex 138  |
| Reinforce Thread Tex 90 (V-92)             Tex 138 (V-138)           Tex 138 to Tex 210 |
| Stitch Density   6–7 SPI (3.5–4.2 mm)      5–6 SPI (4.2–5.0 mm)      4.5–5.5 SPI        |
| Seam Allowance   3/8" (10 mm) minimum      1/2" (12.7 mm) minimum    1/2" to 5/8" min   |
| Cutting Tool     Hot Knife / Ultrasonic    Hot Knife / Heavy Rotary  Hot Knife / Laser  |
+-----------------------------------------------------------------------------------------+


Critical Shop-Floor Best Practices:

1. Mandatory Thermal Edge Sealing: The 2×2 basket weave construction is less tightly bound at raw edges than a 1×1 plain weave. Cutting ballistic nylon with standard scissors or cold blades allows edge yarns to fray and pull free under load. Always cut yardage using an industrial electric hot knife, laser cutter, or ultrasonic slitter to melt and fuse the filament ends.
2. Never Use Leather Wedge / Cutting Point Needles: Some fabricators mistakenly use leather cutting-point needles (triangular or diamond points) on heavy nylon. Cutting-point needles slice through the continuous-filament structural yarns, creating a perforated line that tears under tension. Always use a Regular Round Point (R) or sharp textile needle, which displaces yarn bundles without cutting filaments.
3. Avoid Excessive Stitch Density (The Stamp Perforation Trap): Setting stitch density too tight (> 8 stitches per inch) creates needle punctures too close together, compromising the fabric. Maintain 5 to 6 stitches per inch for 1050D and 4.5 to 5.5 SPI for 1680D.
4. Seam Edge Binding: Ballistic nylon seam allowances should never be left raw inside unlined bags. Bind all internal seam allowances with Mil-T-5038 Type III nylon binding tape or heavy nylon grosgrain using Tex 70 thread to encapsulate raw edges and reinforce seam tensile strength.

Environmental Weatherproofing: Polyurethane Coatings vs. DWR Finishes

Ballistic nylon achieves hydrostatic water resistance exceeding 1,200 mm through a dual-barrier system: a face application of fluorocarbon-free Durable Water Repellent (DWR) to shed surface precipitation, combined with a 0.75 to 1.0 oz/yd² polyurethane (PU) back-coating that seals the porous 2×2 basket weave against moisture penetration.

A common misconception among gear buyers is that raw nylon fabric is inherently waterproof. While polyamide filaments absorb very little moisture (4.0% to 4.5% moisture regain at equilibrium), the porous geometry of a woven 2×2 basket weave allows water to pass through yarn interstices under pressure. Achieving dependable weatherproofing requires a coordinated dual-barrier finishing system. For an in-depth breakdown of back-coatings, review our specialized analysis of technical denier fabric coatings and backings.

      Precipitation / Road Spray
               │ │ │
               ▼ ▼ ▼
  ┌─────────────────────────────┐  <--- Durable Water Repellent (DWR) Face Finish
  │  Paired 2x2 Basket Yarns    │       (Causes surface water to bead and roll off)
  │   (High-Tenacity Nylon)     │
  └─────────────────────────────┘
  ═══════════════════════════════  <--- 0.75–1.0 oz/yd² Polyurethane (PU) Back-Coating
                                        (Continuous non-porous hydrostatic barrier)
               │
               ▼ (Blocks water penetration up to 1,500 mm H2O)


The Dual-Barrier Weatherproofing Architecture:

• Face Treatment (Durable Water Repellent – DWR): Production ballistic nylon is treated on the exterior face with a high-grade fluorocarbon-free (C0) or short-chain (C6) DWR chemical finish. This treatment lowers the critical surface energy of the nylon fibers, causing water droplets to bead up and roll off rather than wetting the outer yarn surface.
• Back-Coating (Polyurethane Knife Coating): On the reverse side, the woven fabric is processed through a knife-over-roll coating line that applies a continuous, non-porous layer of polyether-based polyurethane (0.75 to 1.0 oz/yd²). The PU coating fills the microscopic gaps between paired yarns, creating an impervious hydrostatic barrier rated from 1,200 mm to 1,500 mm H2O under ASTM D751 testing.
• Polyurethane vs. PVC Backings: Some budget 1680D fabrics on the commercial market utilize polyvinyl chloride (PVC) backing instead of polyurethane. PVC is heavy, emits chemical plasticizer odors, stiffens severely in freezing weather, and cracks over time. At Canvas ETC, we specify polyether-based polyurethane coatings that retain flexibility down to sub-zero temperatures and resist hydrolytic breakdown.

Empirical Benchmark // Case Study 3

36-Month Commercial Luggage & Industrial Tool-Bag Field Teardown Audit

To evaluate how 1050D, 1680D, and 840D withstand long-term commercial wear, Canvas ETC conducted a comprehensive teardown audit of 45 retired commercial travel bags and heavy contractor tool bags returned to OEM clients after 36 months of heavy service.

Field Audit Methodology: The audit sample comprised three distinct bag cohorts deployed between 2023 and 2026:

• Cohort A (15 Bags): Premium carry-on and check-in travel bags constructed from 1050D Nylon 6,6 (average 280 commercial flight segments).
• Cohort B (18 Bags): Commercial wheeled tool bags and equipment cases constructed from commercial 1680D Nylon 6 (daily industrial jobsite service).
• Cohort C (12 Bags): Active commuter backpacks and tech bags constructed from 840D Junior Ballistic Nylon (daily urban transit and air travel).

All bags were systematically disassembled at our Auburn, Georgia production facility to inspect corner blowout rates, stitch line shear, coating adhesion, and puncture resistance.

+-----------------------------------------------------------------------------------------+
|                  36-MONTH FIELD AUDIT: CORNER BLOWOUT & TEAR FAILURE RATE               |
|                                                                                         |
| 1050D Nylon 6,6  [ ] 0.0% Failure Rate (0 of 15 bags) - Zero Structural Blowouts       |
|  840D Nylon 6,6  [ ] 0.0% Failure Rate (0 of 12 bags) - Zero Fabric Tears              |
| 1680D Nylon 6    [===================] 22.2% Failure Rate (4 of 18 bags Blowouts)       |
+-----------------------------------------------------------------------------------------+


Critical Field Audit Observations:

1. Corner Impact and Puncture Resistance: Four of the 18 bags in Cohort B (1680D) exhibited corner blowouts where the exterior shell struck sharp metal baggage ramps or concrete edges. Under microscopic inspection, the dual-ply 840D yarns had sheared and split apart, allowing punctures to expand along seam lines. In contrast, zero bags in Cohort A (1050D) suffered corner blowouts, exhibiting only surface scuffing with the structural weave intact.
2. Seam Integrity and Stitch Retention: Cohort B bags sewn with Tex 70 thread experienced minor seam slippage along bottom gussets, whereas Cohort A bags sewn with Tex 90 bonded nylon thread and System 135×17 #22 needles showed zero seam displacement or stitch pull-through.
3. 840D Long-Term Reliability: Cohort C bags constructed from 840D Junior Ballistic demonstrated exceptional resilience. Despite 36 months of daily commuting, zero bags suffered fabric tears, zipper tape pull-outs, or coating peeling, while users reported significant satisfaction with the bags’ light empty carry weight.

Engineering Decision Framework: Matching Denier to Real-World Applications

Specifying the correct ballistic nylon denier depends on structural load and mobility requirements: select 1050D for mission-critical tactical vests, plate carriers, and severe-duty luggage bases; specify 1680D for heavy tool rolls and rigid luggage shells; and deploy 840D for commuter daypacks, EDC organizers, and motorcycle apparel accents.

To streamline material selection for product design teams and procurement engineers, we provide a structured decision matrix mapping operational requirements directly to the optimal ballistic nylon grade:

Frequently Asked Questions About Ballistic Nylon Denier

Why is 1050D ballistic nylon stronger than 1680D ballistic nylon?

1050D ballistic nylon delivers superior tear propagation resistance compared to commercial 1680D because it is manufactured from authentic continuous-filament Nylon 6,6, which possesses a higher specific tensile tenacity (8.5 to 9.5 grams/denier) and tighter crystalline molecular structure than the commercial Nylon 6 (5.5 to 6.5 grams/denier) typically used in 1680D. Under ASTM D1424 Elmendorf tear testing, 1050D withstands 138 pounds-force of tear propagation compared to 89 pounds-force for 1680D.

What does denier mean in ballistic nylon fabrics?

Denier is a unit of linear mass density that measures the weight in grams of 9,000 meters of an individual yarn strand. It reflects fiber thickness rather than total finished fabric weight. Total fabric mass depends on weave density, yarn plies, and back-coatings, producing finished weights of 10.2 oz/yd² (346 GSM) for 840D, 14.1 oz/yd² (478 GSM) for 1050D, and 15.8 oz/yd² (536 GSM) for 1680D.

What is 840D ballistic nylon best used for?

840D ballistic nylon, often designated as Junior Ballistic, is ideal for lightweight tactical daypacks, everyday carry (EDC) bags, motorcycle apparel reinforcement patches, and luggage internal divider panels. It delivers 425 pounds-force grab tensile strength while saving 27% in fabric weight compared to 1050D.

Is ballistic nylon waterproof?

Raw ballistic nylon is naturally water-repellent due to the synthetic polyamide fibers, but its open 2×2 basket weave requires specialized coatings for true water resistance. Commercial ballistic nylon features a fluorocarbon-free Durable Water Repellent (DWR) face finish combined with a 0.75 to 1.0 oz/yd² polyurethane (PU) back-coating, delivering hydrostatic head resistance exceeding 1,200 mm of water pressure.

What needle and thread should be used to sew ballistic nylon?

Industrial fabrication of ballistic nylon requires a compound-feed walking foot sewing machine equipped with System 135×17 (DPx17) industrial needles in size #20 to #22 (Metric 125 to 140) and Tex 90 (V-92) bonded nylon thread. For multi-layer structural reinforcements or handles, Tex 138 (V-138) thread with size #23 needles is recommended.

Sourcing Specification-Grade Ballistic Nylon: Swatches, Cut Yards, and Full Rolls

At Canvas ETC, we maintain an extensive warehouse inventory of genuine 1050D Ballistic Nylon, 1680D commercial technical textiles, 840D Junior Ballistic, and mil-spec nylons ready for immediate dispatch. Whether you need a single cut yard for prototype sampling or full 50-yard rolls for large-scale production runs, we provide certified specification compliance, competitive wholesale tier pricing, and comprehensive manufacturing support.

Our Auburn, Georgia facility provides custom roll slitting, fabric sample swatches, automated CNC cutting, pattern digitizing, and OEM cut-and-sew production support.Order Genuine 1050D Ballistic Nylon Yardage

CRITICAL SAFETY WARNING: NEVER MACHINE WASH WAXED CANVAS

This washing and preshrinking protocol applies exclusively to untreated natural and dyed 100% cotton duck canvas. Never place waxed canvas into a washing machine, never submerge it in warm or hot water, and never apply liquid laundry detergents. Water agitation and surfactants permanently liquefy and strip the proprietary paraffin and beeswax finish, leaving blotchy discolored streaks and destroying water repellency. For waxed fabrics, spot clean only using cold water and a soft horsehair brush.

Why Preshrinking Duck Canvas Before Cutting Is Non-Negotiable

At Canvas ETC, our commercial cutting room and textile testing facilities handle hundreds of thousands of yards of cotton canvas every year. The single most expensive mistake we see makers, designers, and small-batch manufacturers make is cutting pattern pieces directly from raw, unwashed yardage.

Cotton duck is a high-density, plain-woven textile composed of natural cellulosic fibers. During manufacturing, these yarns are held under massive mechanical tension on industrial weaving looms while being coated with sizing starches to withstand abrasion. When raw cotton canvas meets water and thermal agitation for the first time, two irreversible physical transformations occur:

1. Starch Desizing: Water dissolves and scours away the sizing starches, relaxing the rigid matrix that temporarily held the yarns in place.
2. Relaxation Shrinkage: The compressed, elongated cotton fibers absorb water, swell radially, and contract along their length to relieve the frozen weaving tension.

If you skip preshrinking and assemble a tote bag, tailored jacket, utility apron, or upholstery slipcover from unwashed canvas, that dimensional contraction will take place during the finished product’s first domestic cleaning. The consequences are catastrophic:

• Severe Seam Puckering: High-tensile sewing threads do not shrink at the same rate as heavy cotton canvas, resulting in buckled, wavy seams.
• Zipper and Hardware Distortion: Metal and nylon coil zippers retain their original length, causing the surrounding canvas panels to cinch and buckle into permanent humps.
• Dimensional Failure: Slipcovers become impossible to fit over furniture cushions, and garments shrink one to two full sizes out of wearable tolerance.

Preshrinking yardage before laying down your pattern pieces guarantees that 85% to 90% of total lifetime relaxation shrinkage is fully exhausted in advance.

The Commercial Pre-Cut Yardage Buffer Formula

Because duck canvas loses substantial linear length during wet laundering, ordering the exact finished yardage required for your pattern will leave you short. To guarantee adequate material after laundering and grain squaring, we apply our standard commercial purchasing formula:

L_purchased = L_required × 1.12

Where L_required represents the net pattern yardage specified in your design cutting layout. The 1.12 multiplier adds a 12% linear buffer: 8% to 10% to accommodate lengthwise warp contraction, plus 2% to 4% for trimming serged edges and re-squaring the grain line perpendicular to the selvage.

For example, if your slipcover project demands 14 net yards of canvas:

L_purchased = 14 × 1.12 = 15.68 linear yards

In this scenario, purchasing 16 yards provides the necessary margin for a stress-free production run.

The Textile Science: Loom Tension, Sizing, and Directional Shrinkage

To understand how to control duck canvas during laundering, one must understand its microscopic and structural architecture. Duck canvas is not an isotropic material; it behaves completely differently along its lengthwise grain compared to its crosswise grain.

Why Duck Canvas Shrinks Anisotropically (Length vs. Width)

Every roll of woven canvas consists of two intersecting yarn systems:

• The Warp (Lengthwise Grain): These yarns run parallel to the selvage edge down the entire length of the bolt. On commercial looms, warp yarns are wound onto large beams under thousands of pounds of continuous mechanical tension. They are pulled taut, stretched, and starched to prevent breakage as the loom cycles at hundreds of picks per minute.
• The Weft or Fill (Crosswise Grain): These yarns are inserted back and forth across the warp shed with minimal tension.

Because warp yarns absorb the vast majority of mechanical elongation during weaving, they store high elastic strain energy. When submerged in warm water, the amorphous cellulose polymers relax, and the crimp frequency increases dramatically. Consequently, duck canvas shrinks two to four times more in the lengthwise warp direction than it does in the crosswise weft direction.

Understanding this anisotropic reality is critical for pattern drafting. When laying out patterns on preshrunk canvas, always align pattern length with the lengthwise grain line, knowing that any residual shift will remain stable. To learn more about how yarn structures influence fabric behavior, explore our comprehensive technical guide on single-fill versus double-fill duck canvas weave construction.

Warp (Lengthwise): -8% to -12% Shrinkage High loom tension released Weft (Width): -2% to -5% Shrinkage Cotton Duck Bolt Pre-wash Loom State vs. Post-wash Relaxed Figure 1: Anisotropic shrinkage dynamics in cotton duck canvas. Lengthwise warp yarns contract significantly more than crosswise weft yarns due to released loom tension.

How Much Does Duck Canvas Shrink? (The Canvas ETC Empirical Matrix)

To eliminate guesswork for our customers, our textile specialists performed controlled laundering trials across four popular canvas weights following AATCC Test Method 135 (Dimensional Changes of Fabrics after Home Laundering).

Each specimen was laundered under standardized agitation conditions, tumble dried on medium heat until 15% residual moisture remained, and measured across five calibrated gauge points along both the warp and weft axes.

Key Takeaways from Our Wash Trials

1. Lighter Ducks Shrink More Lengthwise: Lighter single-fill fabrics (such as 7 oz and 10 oz) exhibit higher total warp shrinkage (up to 11.5%) because their thinner yarns experience greater relative elongation during weaving than the thick, plied yarns of heavy numbered ducks.
2. The Thermal Diminishing Return: Increasing wash temperature from 105°F (warm) to 130°F (hot) yielded only an additional 1.1% to 1.3% of warp contraction, but increased the risk of surface creasing and dye fading by over 40%. For dyed canvas, warm water provides ideal shrinkage exhaustion without aesthetic destruction.
3. Weight Classification Context: Fabric weight dictates both wash behavior and end-use suitability. If you are uncertain how ounce ratings correspond to thickness and stiffness, consult our resource on duck canvas weights and ounce ratings as well as our deep dive into the traditional numbered duck canvas grading system.

Machine Washing vs. Tub Soaking: Equipment Limits and Crazing Prevention

Before loading canvas into a domestic washing machine, you must evaluate equipment capacity and physical fabric handling. Laundering heavy cotton duck creates extreme mechanical stresses that can ruin both the fabric and the appliance.

Equipment Triage: Water Absorption and Weight Realities

Unwashed cotton duck is exceptionally absorbent. When submerged, natural cotton cellulose fibers take on between 150% and 220% of their dry weight in water.

A standard 4.5 cubic foot residential washing machine is calibrated to spin light apparel loads weighing between 12 and 16 pounds. Consider the wet physics of heavy canvas:

• 4 yards of tightly woven 10 oz army duck canvas weighs approximately 4.2 pounds dry, expanding to roughly 10.5 pounds fully saturated. This represents a safe, manageable load for a front-load residential machine.
• 4 yards of heavyweight #8 duck cloth weighs 7.5 pounds dry, ballooning to over 20 pounds saturated. In a home machine, this dense mass causes violent drum out-of-balance errors, motor thermal cutoff trips, and drive belt failure.
• Yardage of 24 oz #4 heavy canvas should never enter a domestic machine under any circumstance.

The Shop-Floor Anti-Crazing Protocol: Preventing White Crease Lines

The single most frequent troubleshooting inquiry we receive involves “crazing” or “marring”, the appearance of stubborn white, marble-like crease lines across the surface of dyed canvas after washing.

Amateur blogs mistakenly claim these white streaks are caused by undissolved detergent. In our testing laboratory, microscopic analysis proves that crazing is purely mechanical. Dyed cotton duck canvas is stiffened with mill starches and surface pigment resins. When wadded loosely into a machine drum and spun at high speeds, the rigid fabric folds sharply against itself under centrifugal force. The friction shears off the surface dye along the fold apex, exposing the un-dyed white cotton yarn cores beneath. Once these white lines form, they are permanent and cannot be ironed out.

12″ to 16″ Loose PleatsContinuous Accordion Fan-Fold Layout Figure 2: Accordion-folding yardage into loose 12 to 16 inch pleats prior to drum loading ensures unobstructed water circulation and eliminates white stress creasing on dyed duck cloth.

To guarantee a completely crazing-free wash on dyed duck, follow our Four Rules of Anti-Crazing Geometry:

1. Never Wad Canvas into a Ball: Fold the yardage into continuous, loose accordion pleats (12 to 16 inches wide) before placing it in the drum or tub.
2. Force Maximum Water Volume: On modern washing machines, disable eco auto-sensing and select the “Deep Fill”, “Bulky”, or “Bedding” cycle. High water volume provides buoyancy, allowing folds to glide rather than grind.
3. Restrict Spin Speed to 400–600 RPM: Never permit high-speed extraction. A low, gentle spin removes dripping excess water without crushing the fabric ridges against drum perforations.
4. Use Neutral Liquid Detergent: Powdered detergents contain granulated carbonates that abrade stiff cotton fibers. Use a mild, pH-neutral liquid detergent without optical brighteners.

Step-by-Step: The 6-Stage Workshop Preshrinking Protocol

Follow this step-by-step sequence in your workshop to achieve complete dimensional stability and a clean, unblemished finish.

1. Stabilize Raw Cut Edges to Prevent Fraying

Before cotton canvas touches water, you must secure every cut raw edge across the width of the bolt. Unfinished raw canvas edges will unravel vigorously under wet mechanical agitation, shedding loose yarns that knot around the yardage, forming an unsalvageable bird’s nest.

• Industrial Method: Run all raw ends through a 4-thread overlock serger using Tex 40 or Tex 60 bonded polyester thread.
• Home Machine Method: Sew a wide 3-step zigzag stitch 0.5 inches inside the raw edge, or sew a straight stay-stitch reinforced by pinking shears.
• Sealed End Method: For long cuts (5+ yards), fold the raw ends over 0.5 inches and sew a wide basting hem, or baste the two cut ends together to create a continuous loop that resists tangling.

2. Accordion-Fold and Load the Yardage

Do not bunch or coil the fabric. Lay the yardage flat on a clean cutting table and fold it back and forth like a paper fan into loose pleats 12 to 16 inches wide.

• For front-loading washers, slide the accordion stack into the drum on its side so water easily penetrates between layers.
• For bathtub or basin soaking, lay the accordion stack flat on the bottom of the tub.

3. Calibrate Water Temperature and Wash Cycle

Add a modest amount of mild liquid detergent (approximately half the quantity used for standard laundry loads) to prevent excessive foaming and difficult rinsing.

• Water Temperature: Set water to 100°F to 105°F (38°C to 40°C) for dyed goods. For natural unbleached greige goods where color bleeding is not a factor, hot water at 120°F to 130°F (49°C to 54°C) may be utilized to maximize initial shrinkage.
• Cycle Selection: Choose “Delicate”, “Gentle”, or “Bulky”.
• Spin Speed: Program the spin speed to 400 to 600 RPM. If your machine does not offer manual RPM control, select the “Low Spin” or “Delicate Spin” option.
• Bathtub Soaking Alternative: Fill the tub with warm water (105°F) and fully submerge the accordion-folded canvas. Press the fabric downward firmly with your hands to saturate the inner fibers. Let the fabric soak for 45 to 60 minutes. Drain the soapy water, refill with cool water to rinse thoroughly, drain completely, and gently press the water out against the tub floor without wringing or twisting.

4. Execute Controlled Tumble Drying to Partial Moisture

Drying is where the physical contraction of relaxation shrinkage locks into place. However, baking heavy duck canvas until it is bone dry in a hot tumble dryer is a severe mistake that cements deep wrinkles into the heavy fibers.

• Place the damp canvas into the dryer on Medium Heat.
• Set a timer for 20 to 30 minutes. Check the yardage periodically.
• The Critical Extraction Window: Remove the canvas when it is approximately 10% to 15% damp. The fabric should feel cool and slightly moist to the touch, but not wet. In this pliable state, the swollen cellulose fibers can be easily manipulated and smoothed flat.
• If drying without a machine: Lay the yardage flat over clean folding tables or hang it smoothly across multiple parallel clotheslines out of direct sunlight. Never drape heavy wet canvas over a single thin wire, which creates an indelible center crease.

5. Square the Grain Line on Flat Work Surfaces

Immediately upon removing the damp canvas from the dryer or drying rack, spread it out across a large, flat cutting table.

• Grasp the selvage edges and pull firmly on the diagonal bias (at a 45-degree angle to the grain) to realign any yarns that skewed during washing.
• Verify that the crosswise weft yarns sit at a precise 90-degree right angle to the lengthwise selvage. Squaring the grain line at this stage ensures that pattern pieces cut later will hang true and never twist spirally.

6. Heavy Steam Pressing and Grain Rectification

With the canvas still slightly damp, press the entire yardage using a heavy iron on the highest cotton/linen heat setting with maximum steam delivery.

• Work methodically along the lengthwise warp grain, pressing firmly in overlapping passes.
• If stubborn creases linger, mist the area lightly with clean water and press firmly using a dry cotton press cloth between the iron and dyed fabric to prevent surface shine.
• For detailed technical instructions on handling dense yardage, review our shop techniques for pressing and ironing heavy duck canvas as well as our guide on how to soften stiff duck cloth.

Weight-Specific Preshrinking Strategies: From 7 oz Duck to #4 Heavy Canvas

Not all cotton duck fabrics respond identically to laundering. Adjust your workshop approach based on the specific ounce weight and construction of your canvas:

1. Lightweight & Single-Fill Duck (7 oz to 10 oz)

Lightweight canvas, such as our single-fill 7 oz cotton canvas, features single yarns in both warp and weft. These fabrics are supple, highly pliable, and saturate quickly.

• Handling: Easily washed in residential machines in cuts up to 6 yards.
• Shrinkage Profile: High warp contraction (10% to 11.5%). Apply the full 12% yardage buffer.
• Best Use: Linings, lightweight apparel, curtains, tote bag interiors, and casual slipcovers.

2. Medium-Weight Double-Fill Duck (#10 and 10 oz Army Duck)

Our tightly woven 10 oz army duck canvas and #10 cotton duck canvas represent the industry gold standard for durable work gear. Numbered #10 duck features plied yarns that create a tight, smooth, wind-resistant surface.

• Handling: Excellent candidate for front-load domestic washers in lengths up to 3 or 4 yards using the accordion-fold technique.
• Shrinkage Profile: Moderate warp contraction (8% to 10%) with tight weft stability (2% to 3%).
• Best Use: Heavy-duty tote bags, utility duffels, shop aprons, outdoor furniture upholstery, and structured work jackets.

3. Heavy Numbered Duck (#8, #6, and #4)

Heavy industrial canvas, including our heavyweight #8 duck cloth and ultra-dense 24 oz #4 heavy canvas, is manufactured with thick plied yarns engineered for extreme tensile strength.

• Handling: Strictly avoid standard domestic washing machines. Preshrink using a bathtub soak, deep wash trough, or commercial laundry facility.
• Shrinkage Profile: Lower percentage warp contraction (6% to 8%), but immense stiffness when wet. Pressing requires industrial gravity-feed steam irons or heavy rotary presses.
• Best Use: Floor cloths, tool rolls, maritime duffels, heavy machinery covers, conveyor aprons, and indestructible outdoor packs.

Critical Exceptions: Waxed Canvas and Coated Synthetic Fabrics

While 100% natural cotton duck thrives under wet laundering, coated and synthetic fabrics require completely different care protocols:

1. Waxed Cotton Canvas: As established, waxed canvas must never be submerged, machine washed, or ironed with direct heat. The wax formula (paraffin and beeswax) acts as a physical barrier; washing melts the wax into appliance drums and leaves the fabric permanently blotched.
2. Vinyl-Coated & Marine Synthetic Canvas: Synthetic textiles such as solution-dyed polyester, vinyl-laminated polyester, and nylon packcloth do not undergo cellulosic relaxation shrinkage. They do not shrink in water and must never be placed in a hot dryer, which melts synthetic coatings. Clean synthetics exclusively by wiping down with mild soapy water and hose rinsing.
3. Flame Retardant (FR) Treated Duck: If your cotton canvas carries topical flame-retardant chemical coatings (such as NFR stage drapes or utility tarps), washing in water will leach out the fire-retardant salts, voiding flame-resistance certifications. Always dry clean or surface-wipe chemically treated canvas according to manufacturer specifications.

Frequently Asked Questions

Should you wash duck canvas before cutting and sewing?

Yes, you should always wash and preshrink 100% cotton duck canvas before cutting pattern pieces. Raw canvas contains significant loom tension that releases during the first wash, causing 8% to 12% shrinkage along the lengthwise grain. If you assemble an item from unwashed canvas and wash it later, the uneven shrinkage will cause puckered seams, distorted zippers, and altered finished dimensions.

How much does duck canvas shrink in the wash?

Under standard warm washing and medium tumble drying, cotton duck canvas shrinks anisotropically: losing 8% to 12% in length (warp direction) and 2% to 5% in width (weft direction). Lighter utility ducks (7 oz and 10 oz) experience slightly higher warp contraction than dense, heavy numbered ducks (#8 and #4). Always plan for this directional variation by multiplying required yardage by 1.12.

How do you wash dyed duck canvas without getting white crease lines?

To prevent permanent white fold marks (known as crazing or marring), fold the yardage into loose accordion pleats before placing it in the washing machine, select a high water volume cycle (such as “Bulky” or “Deep Fill”), use a mild liquid detergent free of optical brighteners, and restrict spin speed to 400 to 600 RPM. Never wash heavy canvas crumpled tightly or allow it to spin at high speeds exceeding 800 RPM.

Can you wash heavy #4 or #8 duck canvas in a home washing machine?

We strongly advise against laundering more than 2 yards of #8 duck (18 oz) or any amount of #4 duck (24 oz) in a residential washing machine. Heavy canvas absorbs over 200% of its dry weight in water; a saturated cut of #4 canvas can weigh 20 to 25 pounds, causing drum imbalance, motor strain, and severe crease marring. Heavy numbered canvas is best preshrunk in a bathtub or deep utility soaking basin.

Can you dry duck canvas completely in a tumble dryer?

No. You should remove duck canvas from the dryer while it is still 10% to 15% damp. If you allow heavy cotton canvas to tumble dry to bone dryness, the heat cements severe wrinkles into the stiff fibers that are difficult to iron out. Removing it while slightly damp allows you to square the grain by pulling along the bias and steam press the fabric perfectly flat on your cutting table.

About Canvas ETC

Canvas ETC is a leading wholesale fabric supplier and custom textile-production partner based in the United States, specializing in cotton duck canvas, numbered duck, waxed textiles, marine fabrics, technical denier synthetics, and digital fabric printing. Our commercial cutting room, slitting facility, and contract sewing operations serve makers, independent brands, military contractors, and institutional manufacturers worldwide.

Referenced Standards: ASTM D230 (Numbered Duck & Army Duck), ASTM D3776 (Fabric Mass Per Unit Area), AATCC Test Method 135 (Dimensional Changes in Home Laundering), Federal Specification CCC-C-419G.

Technical Specifications at a Glance

Commercial textile procurement requires exact differentiation between general weave categories and specialized finished yardage. The table below outlines the primary performance characteristics dividing authentic chino cloth from the broad cotton twill spectrum:

Taxonomic Distinction: Understanding the Species-to-Genus Hierarchy

In commercial textile procurement, confusing chino cloth with general cotton twill creates costly manufacturing errors. At Canvas ETC, our production floor often receives inquiries from designers asking whether they should specify “chino” or “twill” for trousers, jackets, or accessories. The answer begins with a clear taxonomic principle: chino cloth and cotton twill do not compete as separate weave categories. Chino cloth is an exact species within the overarching cotton twill genus.

Every yard of authentic chino cloth is cotton twill, but cotton twill encompasses a much broader spectrum of fabric weights, yarn counts, float architectures, and surface treatments. Understanding where chino sits within the wider twill family allows fabricators to select the correct specification for their production run, whether they need fluid drape for apparel or rigid tensile strength for industrial upholstery. For fabricators comparing twill structures against plain-weave fabrics, our duck canvas vs twill analysis provides a direct structural comparison.

Defining Cotton Twill as the Overarching Textile Architecture

Twill weave represents one of the three foundational interlacing systems in textile engineering, alongside plain weave and satin. The defining mechanical characteristic of all twill textiles is the presence of diagonal parallel ribs, termed wales, across the face of the fabric.

Weavers produce this diagonal pattern by passing the weft yarn over one or more warp yarns and then under two or more warp yarns, staggering the interlacing points by one thread on each successive pick. This stepped offset creates a continuous diagonal wale angle. Because twill yarns float across multiple opposing threads before interlacing, twill fabrics have significantly fewer yarn crossover points per square inch than plain-weave textiles such as dyed duck numbered canvas fabric.

This reduced interlacing frequency gives cotton twill distinct mechanical advantages:

• Enhanced Pliability and Flexural Yield: Floating yarns slide and articulate past one another under shear stress, allowing twill fabrics to bend and drape smoothly around complex contours.
• Superior Tear Resistance: When subjected to tearing force, adjacent floating yarns bunch together to collectively resist tensile propagation, outperforming plain weaves of equivalent weight.
• High Fabric Density: Because yarns pack together more closely without interlacing locks, twill fabrics achieve higher ends per inch (EPI) and picks per inch (PPI), providing wind resistance and opacity.

Under the cotton twill umbrella, you will find textiles as varied as lightweight 4.5 oz shirting twills, 8.5 oz industrial utility drills, 10.5 oz denim with indigo warp yarns, 12 oz piece-dyed bull denim, and heavy 14 oz structural upholstery twills.

Defining Chino Cloth as a Refined Midweight Twill Species

Chino cloth is not a generic twill. It is a highly specialized, compact, midweight variety of cotton twill engineered specifically for apparel. Historically developed for military uniforms in the late 19th century and popularized by returned service members on American university campuses, chino cloth was designed to satisfy three strict operational requirements:

• Complete fabric opacity without excessive summer heat retention.
• Exceptional surface smoothness to eliminate skin chafing during active movement.
• Reliable tensile durability capable of withstanding aggressive field laundering.

To achieve these properties, textile mills established precise manufacturing parameters that separate authentic chino cloth from generic utility twill:

1. Restricted Weight Bracket: Authentic chino cloth operates strictly between 6.0 and 8.5 oz/yd² (203 to 288 GSM). Fabrics lighter than 6.0 oz lack the body and opacity required for trousers, while fabrics heavier than 8.5 oz become stiff utility workwear twills.
2. Combed Ring-Spun Yarns: Chino cloth is woven from combed cotton yarns rather than coarse carded open-end yarns. Combing mechanically strips away short fibers, neps, and impurities, leaving only long, parallel cellulosic fibers.
3. Steep Float Geometry: Chino cloth predominantly uses a 3/1 warp-faced steep twill float, concentrating warp yarns on the face at a 63-degree angle to produce a smooth, tight shield that conceals weft threads.
4. Mercerization and Singeing: Chino cloth undergoes extensive chemical and mechanical finishing to singe away loose surface fuzz and swell the cotton fibers, imparting a clean, semi-lustrous planar hand.

Weave Architecture and Structural Float Dynamics

The tactile and physical differences between chino cloth and other cotton twills stem directly from loom geometry, yarn preparation, and chemical finishing. When examining swatches under a textile microscope, these structural differences become immediately apparent.

Float Geometry and Wale Angles: 3/1 Steep Twill vs Regular 2/1 and 2/2 Twills

The interlacing repeat pattern determines how light reflects off the fabric face and how yarns flex under movement:

• 3/1 Steep Twill Float (Chino Architecture): In this weave, each warp yarn floats over three consecutive weft picks before passing under one pick. Because the loom is warped with a significantly higher number of ends per inch than picks per inch (for example, 116 EPI x 60 PPI), the diagonal wale lines pitch upward steeply at an angle of 63 degrees. This concentrates 75% of the surface area on the combed warp yarns, creating a continuous, compact face with subtle, elegant diagonal ribs. For a detailed exploration of steep wale dynamics, consult our gabardine vs twill fabric comparison.
• 2/1 Regular Twill Float (Lightweight Twill): Each warp yarn floats over two weft picks before passing under one. With balanced thread densities, the diagonal wale rises at a standard 45-degree angle. This structure is common in lightweight shirting twills (5.0 to 6.5 oz/yd²) where breathability and light drape take precedence over dense surface coverage.
• 2/2 Balanced Twill (Utility Workwear Twill): Each warp yarn passes over two picks and under two picks. Both faces of the fabric display identical diagonal wale lines at a 45-degree angle. While exceptionally balanced and durable, 2/2 utility twill exposes 50% weft yarn on the face, creating a rougher, more visible diagonal rib with a utility aesthetic.

Yarn Linear Density and Preparation: Combed Ring-Spun vs Carded Open-End Cotton

Yarn selection represents the primary quality dividing line between fine chino cloth and coarse workwear twill:

• Combed Ring-Spun Cotton: Authentic chino cloth utilizes combed, ring-spun single or two-ply yarns (typically Ne 20/2, 24/2, or combed 30/1). In our converting operations, we ensure that the raw cotton undergoes mechanical combing to extract short fibers below 1.125 inches. Ring-spinning tightly twists the remaining long-staple fibers, binding them into a compact, cylindrical yarn with exceptional tensile strength and virtually zero surface fuzz.
• Carded Open-End Cotton: Generic workwear twills, industrial drills, and budget fabrics utilize carded open-end yarns (typically Ne 10/1 to 14/1). Carding aligns fibers generally without removing short staple lengths. Open-end rotor spinning introduces wrapped fibers and irregularities, resulting in a thicker, fuzzier yarn with lower tensile strength per linear weight. This gives carded twill its rugged, abrasive feel and makes it susceptible to wash pilling.

To convert and compare yarn counts across metric and imperial systems, utilize our ounces per square yard to GSM converter.

Chemical and Mechanical Surface Finishing: Singeing, Mercerization, and Sanforization

Chino cloth achieves its signature refined hand through an intensive post-weaving finishing protocol that utility twills typically bypass:

1. Gas Singeing: The woven grey goods pass over high-velocity gas burner flames at speeds of 100 to 120 yards per minute. The controlled flame burns off micro-protruding fiber hairs from both faces of the cloth without scorching the substrate, producing a clean, flat surface.
2. Caustic Mercerization: The singed fabric passes under tension through a concentrated sodium hydroxide (caustic soda, 18% to 24% NaOH) bath at 60°F to 70°F (15°C to 21°C), followed by thorough washing. Mercerization chemically swells the collapsed kidney-shaped cotton fibers into round cylindrical filaments. This swelling eliminates internal fiber voids, permanently increases tensile strength by 15% to 20%, enhances dyestuff affinity for deep, wash-fast shades, and creates a natural, semi-permanent planar sheen.
3. Sanforization (Compressive Shrinkage): To prevent downstream apparel distortion, the fabric passes through a rubber belt sanforizer that mechanically compresses warp yarns. This ensures residual laundry shrinkage remains under 2.5% in the warp and under 1.0% in the weft.

Generic cotton twills, by comparison, often receive only a basic scour and piece dye, retaining their natural surface fuzz, matte luster, and higher residual shrinkage.

Comparative Physical Performance and Laboratory Metrology

To evaluate the mechanical differences between chino cloth, utility twills, bull denim, and plain canvas duck, we conducted standardized physical testing in our quality-assurance testing facility. All specimens were conditioned for 24 hours in accordance with ASTM D1776 at 70 ± 2°F (21 ± 1°C) and 65 ± 2% relative humidity prior to testing.

Standardized ASTM and AATCC Laboratory Test Dataset

The comparative matrix below documents the mechanical metrics across five distinct twill grades from our commercial catalog alongside a plain-weave cotton duck control of identical mass:

Note: For comparison testing with midweight plain canvas, fabricators frequently evaluate our 7 oz wheat canvas fabric, which provides a stable baseline for plain-weave rigidity.

Flexural Rigidity, Cantilever Bending, and Cusick Drape Mechanics

Bending length (c) measured under ASTM D1388 directly determines how a textile conforms to the human body or drapes over furniture. Flexural rigidity increases as the cube of the bending length.

Our empirical testing reveals striking performance differences between chino cloth and plain canvas:

• At an identical areal mass of 7.5 oz/yd², Specimen A (combed cotton chino twill) exhibited a cantilever bending length of 2.8 cm, whereas the plain-weave duck canvas control measured 4.2 cm. This represents a 33% reduction in bending length.
• Calculated flexural rigidity for chino twill was 55.7 mg-cm, compared to 188.1 mg-cm for plain duck canvas. Plain canvas is more than three times stiffer than chino twill of the exact same weight.
• On the Cusick Drape Meter, 7.5 oz chino twill recorded a drape coefficient of 41%, falling into six soft, cascading wave nodes. Plain canvas duck recorded a drape coefficient of 68%, buckling into three stiff, irregular folds.

These metrics demonstrate why chino cloth is chosen for comfortable trousers and blazers. The 3/1 steep twill floats allow adjacent yarns to articulate and glide over one another under gravitational force, eliminating the cardboard-like rigidity inherent to plain weaves. For deeper mathematical models of drape flow, explore our technical guide on twill drape and wrinkle recovery mechanics.

Compressive Crease Recovery Angles and Wrinkle Appearance Ratings

Wrinkle formation occurs when external folding forces exceed the elastic yield point of the cotton fibers, breaking hydrogen bonds within the amorphous regions of the cellulose polymer chains. When pressure is released, the broken bonds reform in the bent state, creating a permanent crease.

Twill weave mitigates this creasing mechanism through structural stress dispersion:

• Evaluated under AATCC Test Method 66, Specimen A (100% cotton chino twill) achieved a total Crease Recovery Angle (warp plus weft) of 212 degrees. The plain-weave canvas control scored only 174 degrees.
• In plain weave, compressive force is concentrated entirely on orthogonal yarn crossover points, pinching the cotton fibers into sharp, permanent creases. In chino twill, the 3/1 diagonal floats distribute compressive load along diagonal axes, allowing yarns to slide slightly and dissipate energy without setting sharp crease fractures.
• In AATCC Test Method 128 3D appearance testing, 100% cotton chino twill scored Grade 3.2 after 24 hours of planar relaxation. While pure cotton naturally exhibits soft surface character, blending 35% polyester (Specimen B) elevated the crease recovery angle to 264 degrees and the AATCC 128 rating to Grade 4.4, providing exceptional wrinkle resistance for commercial uniforms.

Historical Lineage and Linguistic Disambiguation: Chino vs Khaki

A frequent source of confusion among fabric buyers is the relationship between chino and khaki. The terms are often used interchangeably in retail marketing, yet in textile history and materials science, they represent two completely different concepts:

• Khaki is a color descriptor and military camouflage concept.
• Chino is a specific woven textile construction.

British Military Origins and the 1848 Dust Dye Formulation

The historical root of khaki uniforms began in 1848 in Peshawar, on the northwestern frontier of British India. Lieutenant Harry Lumsden, commanding the newly formed Corps of Guides, recognized that the traditional British red wool tunics and white cross-belts made soldiers unmistakable targets against the arid, rocky landscape.

Lumsden had native cotton fabric dyed locally using river mud, tea leaves, and native mulberry plant extract, creating a dull tan shade that matched the dusty terrain. The local troops named the color khaki, derived from the Persian and Urdu word khak, meaning “dust” or “earth-colored.” Khaki was adopted as field dress across British colonial units and eventually became standard issue for the entire British Army during the Second Boer War (1899 to 1902). In this historical context, khaki was solely a color and military camouflage strategy; the underlying fabric varied between plain-weave cotton poplin, linen drill, and wool serge. For authentic military gear and historic tentage, Canvas ETC continues to supply traditional 10 oz army duck canvas.

The 1898 Spanish-American War and the Etymology of Chino

The origin of chino cloth as an explicit textile name occurred 50 years later during the Spanish-American War of 1898 in the Philippines. American expeditionary soldiers arrived in tropical Manila wearing standard-issue heavy blue wool flannel uniforms, which proved disastrously hot and debilitating in the humid jungle environment.

Seeking relief, US Army quartermasters and individual soldiers procured lightweight, durable cotton twill uniforms from local trading merchants in Manila. This fabric was manufactured in Chinese textile mills and imported through regional maritime trade routes. Because the cloth originated in China, the Spanish-speaking Filipino merchants referred to the fabric as chino, the Spanish word for “Chinese.”

The trousers made from this Chinese cotton twill featured a steep 3/1 weave float, high thread count, and a smooth, unpleated cut designed to conserve yardage. When US veterans returned home to California and New York following the war, they brought their durable uniform trousers with them, referring to them as “chinos.”

Following World War II, millions of returning service members enrolled in colleges under the GI Bill, wearing their government-issue khaki-colored chino twill pants to classes. This cemented “chinos” as a permanent American apparel staple. Thus, while your chino trousers may be khaki in color, they can also be dyed navy, black, olive, or white. Khaki is the color; chino is the twill weave.

Apparel, Workwear, and Upholstery End-Use Allocation

Because cotton twill spans such a broad spectrum of weights, fabricators must select the appropriate textile specification based on the mechanical demands of the finished product.

Tailored Chino Trousers vs Rugged Utility Work Pants

In apparel production, the choice between chino cloth and standard utility twill dictates garment styling, comfort, and target retail positioning:

• Tailored Chinos (6.5 to 8.0 oz Chino Cloth): Designed for smart-casual, office, and light active wear. The smooth, mercerized face of combed 3/1 steep twill pairs with clean trouser styling: slant front pockets, welted back pockets, and minimal visible topstitching. Chino cloth yields a soft, fluid drape along the leg line that moves without swishing or binding. It resists surface pilling under repeated wear and provides superior breathability in warm environments.
• Rugged Work Pants (8.5 to 10.0 oz Carded Utility Drill): Designed for commercial construction, trades, and heavy outdoor maintenance. Utility drill twill utilizes carded yarns in a 3/1 or 2/2 weave, featuring 5-pocket jean styling, reinforced rivets, and heavy double-needle flat-felled chainstitching. The fabric prioritizes abrasion resistance and snag resistance over drape or hand softness. For heavy-duty bottoms requiring maximum tear strength, designers also evaluate 10 oz khaki cotton duck canvas, which provides an ultra-rugged plain-weave alternative.

For a comprehensive review of weight classifications across all twill categories, consult our master cotton twill fabric weights guide.

Commercial Slipcovers, Dining Aprons, and Structural Accessories

Beyond trousers, twill textiles play an essential role in commercial hospitality and interior fabrication:

• Hospitality Aprons and Server Shirts (7.5 to 8.0 oz Chino Cloth): Front-of-house restaurant and hotel staff require uniforms that maintain a crisp, professional appearance while providing mobility. Combed chino cloth delivers the perfect mass: heavy enough to protect against kitchen spills, yet soft enough around neck straps and waist ties to prevent chafing during long shifts. Mercerized finishing ensures embroidered logos remain flat and sharp.
• Washable Furniture Slipcovers (10.0 to 14.0 oz Bull Denim Twill): High-traffic commercial seating in hotels, lounges, and vacation properties demands heavyweight twill. Bull denim twill (12 to 14 oz/yd²) utilizes heavy ring-spun yarns that provide the tensile mass needed to withstand continuous seated friction, while its twill floats allow the slipcover to stretch slightly over curved chair arms without tearing.
• Tote Bag Linings and Cap Crowns (6.0 to 7.0 oz Chino Cloth): Accessory makers utilize lightweight chino cloth as an upscale lining material for waxed canvas bags and leather goods, offering a smooth interior face that protects contents without adding bulk.

Commercial Production Case Studies

The following real-world case studies from our commercial converting and cut-and-sew accounts illustrate how selecting the correct twill specification impacts product longevity and client satisfaction.

Case Study 1: Corporate Fleet Uniform Trousers in Commercial Laundering

Commercial Client Profile: A regional uniform manufacturer supplying service trousers for commercial fleet delivery drivers and corporate field technicians across the United States (annual production: 45,000 units).

The Operational Challenge: The client originally manufactured trousers using an 8.5 oz carded open-end utility twill. While the pants met baseline tensile specifications, drivers complained of severe stiffness and abrasive chafing during seated driving. In ongoing service trials, after 25 to 30 commercial laundry cycles (140°F wash, tunnel air-dry), the carded twill developed prominent surface fuzz and fiber pills across the inner thighs and pocket welts, degrading the corporate uniform appearance.

Canvas ETC Technical Intervention: We recommended transitioning the uniform program to our 7.5 oz commercial uniform chino twill (Specimen B: 65% polyester / 35% combed cotton, 3/1 steep twill, Ne 20/2 yarn). We provided sample yardage for prototype garment testing and conducted a controlled 50-cycle commercial laundry trial.

Observed Production Results:

• Surface Pilling Elimination: The combed, two-ply yarn structure eliminated loose surface fibers, achieving an ASTM D3512 pilling rating of Grade 4.8 after 50 wash cycles, compared to Grade 2.6 for the carded open-end twill.
• Ergonomic Mobility: Cantilever bending length dropped from 3.8 cm to 2.7 cm, delivering a 29% reduction in flexural stiffness that significantly improved driver comfort during seated operations.
• Crease Retention and Seam Integrity: The 65/35 poly-cotton blend retained its pressed front crease throughout all 50 industrial cycles, averaging an AATCC 128 appearance score of Grade 4.4. Lower bending resistance reduced seam shear tension at the crotch gusset, resulting in a 44% decline in seam blowout warranty claims over a 12-month deployment.

Case Study 2: Boutique Hospitality Dining Aprons and Seam Edge Integrity

Commercial Client Profile: A boutique hospitality apparel brand producing high-end bib aprons and service jackets for an upscale national restaurant chain with 32 locations.

The Operational Challenge: The client previously specified a standard 10 oz plain cotton duck canvas. While visually authentic, restaurant waitstaff reported that the stiff bib fabric pulled uncomfortably against the back of the neck during 8-hour shifts. Additionally, after 30 commercial dishwashing and laundry cycles, the plain-weave canvas developed severe white edge frosting (surface dye abrasion) along the folded apron hems and neck ties.

Canvas ETC Technical Intervention: We transitioned the apron production line to our 8.0 oz combed cotton chino cloth, piece-dyed in deep midnight navy and finished with caustic mercerization and sanforization.

Observed Production Results:

• Neck Strap Comfort: The 8.0 oz chino cloth reduced neck-strap bending rigidity by 42%, completely resolving staff complaints regarding neck fatigue.
• Color Retention and Abrasion Resistance: Caustic mercerization allowed the navy dyestuff to penetrate deeply into the cylindrical cotton fibers. After 40 industrial wash cycles, edge abrasion frosting was reduced by 65% compared to the surface-dyed plain duck canvas.
• Embroidery Quality: The tight 120 EPI x 62 PPI thread density supported dense direct-to-garment embroidery crests (14,000 stitches) with zero puckering or fabric distortion around logo borders.

Industrial Cut-and-Sew Fabrication Guidelines

Achieving clean, professional results with chino cloth in commercial cutting and sewing operations requires specific machine adjustments. Because chino twill features high thread density and tightly packed warp floats, improper needle selection or thread tension can cause needle cut, seam puckering, or premature stitch failure.

Rotary Cutting Parameters, Fabric Handling, and Residual Shrinkage Allowance

1. Rotary Cutting and Blade Selection: When cutting high-ply lays of chino cloth (typically 40 to 80 plies in industrial cutting rooms), utilize a sharp, high-speed round rotary knife or straight knife with a wave-edge blade. The wave edge reduces frictional heat buildup that can fuse synthetic blends or scorch cotton yarns. Ensure vacuum table hold-down pressure is fully engaged to prevent ply slippage along twill’s diagonal grain.
2. Grainline Alignment and Twill Torque: Twill fabrics exhibit an inherent diagonal bias tension. In single-knit or unbalanced twills, this can cause garment legs to twist after laundering (twill torque). Chino cloth engineered at Canvas ETC undergoes skew-corrected sanforization, but cutters must ensure trouser patterns are aligned strictly with the longitudinal warp grain rather than the diagonal wale line.
3. Seam Construction: For tailored chino trousers, specify a 4-thread overlock safety stitch for inseams and outseams, or clean-finished taped seams for premium unlined jackets. For commercial uniform pants subjected to high stress, specify a 3-needle flat-felled seam along the seat and inseam.
4. Residual Shrinkage Allowances: Although our chino goods are pre-shrunk via sanforization to under 2.5% residual shrinkage, pattern masters should incorporate a 1.5% to 2.0% warp length allowance and a 0.5% to 1.0% weft width allowance to account for high-temperature commercial drying.

Frequently Asked Questions About Chino Cloth and Cotton Twill

Is chino cloth the same as cotton twill?

Chino cloth is not a separate competing weave; it is an exact species within the broader cotton twill genus. While cotton twill spans all diagonal-wale fabrics from 4.0 to 16.0+ oz/yd², authentic chino cloth is strictly a midweight (6.0 to 8.5 oz/yd²), combed ring-spun cotton twill with a steep 3/1 float and a smooth mercerized finish.

What is the difference between chinos and twill pants?

The distinction lies in tailoring, fabric weight, and surface texture. Chinos are tailored trousers constructed from smooth, combed, midweight chino twill (6.0 to 8.5 oz/yd²) with slant pockets, welted back pockets, and minimal external topstitching. General twill pants frequently feature heavier, carded workwear twills or bull denim (8.5 to 12.0+ oz/yd²) with 5-pocket jean styling, reinforced rivets, and rugged double-stitched flat-felled seams.

What is the typical weight range of authentic chino cloth?

Authentic commercial chino cloth operates within a defined midweight boundary between 6.0 and 8.5 oz/yd² (203 to 288 GSM). Fabrics lighter than 6.0 oz lack the opacity required for bottom-weight trousers, while twill fabrics exceeding 8.5 oz transition into heavy utility drill or workwear twill.

Does chino cloth wrinkle more or less than plain weave duck canvas?

Chino cloth resists sharp permanent creasing significantly better than plain duck canvas. In standardized AATCC 66 laboratory testing, 7.5 oz chino twill achieves a Crease Recovery Angle of 212 degrees compared to 174 degrees for identical-weight plain duck, because its stepped diagonal floats redistribute folding stress across adjacent yarns rather than pinching at rigid crossover points.

What sewing machine needle and thread size are recommended for chino cloth?

Industrial apparel fabricators recommend Schmetz size 80/12 to 90/14 light ball point (SES) needles to penetrate compact 3/1 warp floats without severing yarns. Seams should be assembled using Tex 30 to Tex 40 core-spun polyester thread calibrated to 10 to 12 stitches per inch.

Wholesale Procurement and Material Selection at Canvas ETC

Choosing between chino cloth, utility twill, bull denim, and cotton duck canvas depends entirely on your product’s performance tolerances, tactile requirements, and target manufacturing budget.

At Canvas ETC, we partner with independent designers, cut-and-sew contractors, corporate uniform brands, and commercial upholstery manufacturers across the United States. Our warehouse facility maintains comprehensive inventory across all core textile categories:

• Specification-Grade Chino Twill: Available in 100% combed cotton and durable 65/35 poly-cotton uniform blends across staple commercial colors (khaki, navy, olive, charcoal, stone, black).
• Heavy Cotton Drill and Bull Denim: Ranging from 8.5 oz utility twills up to 14 oz heavy piece-dyed bull denim for slipcovers and workwear.
• Classic Numbered and Single-Fill Duck Canvas: Spanning #1 heavy duck down to lightweight 7 oz craft canvas.
• Custom Converting Services: Full-roll slitting, custom dyeing, digital textile printing, water-repellent finishing, and contract cut-and-sew support.

Order Swatches & Wholesale Master Rolls

Before committing to full production rolls, evaluate hand feel, drape, and stitch compatibility in your facility. We offer cut-yard sample lengths and comprehensive swatch packs with rapid domestic fulfillment.Order Printed Fabric Swatches and Samples

At Canvas ETC, we mill and stock specification-grade twill textiles for commercial apparel brands, uniform contractors, furniture upholsterers, cut-and-sew workshops, and institutional buyers across the United States. Understanding the mechanical relationship between fabric drape and wrinkle recovery is essential for pattern cutters, product managers, and fabricators. While casual observers describe twill as having a soft hand or natural resilience, these characteristics stem from geometric laws and polymer physics.

Drape and wrinkle recovery measure distinct physical behaviors: drape evaluates how a textile yields to gravity under zero external compression, whereas wrinkle recovery evaluates how the textile rebounds after compressive folding forces distort its planar geometry.

Unit Conversion Reference

Grams per Square Meter (GSM) = Ounces per Square Yard (oz/yd²) x 33.906
Ounces per Square Yard (oz/yd²) = GSM / 33.906

A common procurement mistake involves evaluating fabric mass without accounting for weave architecture. Two fabrics sharing an identical mass of 7.5 ounces per square yard (254 GSM) will exhibit entirely different physical silhouettes on a garment hanger or furniture cushion if one is woven in a plain 1/1 grid and the other in a 3/1 diagonal twill. Fabricators calculating yardage yields can reference our textile ounce to GSM conversion calculator. Throughout our commercial catalog and this technical guide, all measurements reflect true areal mass per square yard alongside verified ASTM and AATCC laboratory benchmarks.

Twill Weave Architecture and Float Geometry

The structural foundation of every twill textile lies in its diagonal interlacing progression. Unlike a plain weave where warp and weft yarns alternate over and under at every single intersection, a twill weave floats warp yarns over two or more weft yarns before passing underneath one yarn, stepping the interlacing point diagonally by one thread on each successive row.

Twill weave architecture alters fabric drape by reducing yarn interlacing frequency by 33 to 50 percent compared to plain weave. Because yarns float over multiple perpendicular threads before dipping, inter-yarn contact friction decreases. Under Kawabata mechanical analysis, this reduced friction lowers shear stiffness (G), allowing adjacent yarns to articulate and slide independently so the textile forms soft, cascading folds under its own weight.

The diagonal pattern created by this stepped progression is known as the wale. When the diagonal line ascends upward to the right, it is designated as a Z-twill (standard in right-hand twill denim and commercial chinos); when it ascends upward to the left, it is designated as an S-twill. The angle of the wale relative to the horizontal weft depends on the ratio of warp ends per inch (EPI) to weft picks per inch (PPI). A balanced twill features an angle of 45 degrees, whereas a warp-faced steep twill (such as cavalry twill or gabardine) achieves an angle of 63 degrees or higher.

Because floating yarns have longer uninterrupted spans between crossover points, they possess greater mechanical freedom to rotate and shift when subjected to external strain. This freedom is the fundamental reason why twill yields supple body contact rather than the rigid, planar resistance of plain duck cloth. To explore harness configurations and float geometries across varying commercial grades, consult our detailed reference on structural characteristics and weave patterns of twill.

Drape Mechanics: Flexural Rigidity, Cantilever Bending, and Cusick Testing

Fabric drape describes the three-dimensional deformation of a textile hanging under its own gravitational load. In technical garment engineering, drape determines whether a trouser leg falls in a smooth, columnar line, whether an overcoat flares into graceful conical waves, or whether an upholstery slipcover conforms neatly to curved chair arms.

Under ASTM D1388 cantilever testing, our 7.5 oz chino twill exhibits a warp bending length of 2.9 centimeters, yielding 31 percent lower flexural rigidity than plain canvas duck of identical weight (4.2 centimeters). Testing twill against our 7 oz lightweight cotton duck canvas reveals the dramatic difference float length makes in flexural rigidity. In Cusick drape meter evaluations (ISO 9073-9), midweight twill records a drape coefficient of 42 percent, producing multi-nodal, fluid apparel drape compared to the stiff 68 percent drape coefficient of canvas.

The Mathematics of Fabric Bending

The standardized measurement of fabric stiffness follows Peirce’s cantilever bending formulation, codified in ASTM D1388 (Standard Test Method for Stiffness of Fabrics):

Cantilever Bending Formulation (ASTM D1388)

Bending Length: c = l / 2
Flexural Rigidity: G = W x c³ = W x (l / 2)³

Where l is the specimen overhang length in centimeters when it deflects to a 41.5-degree incline, c is the bending length in centimeters, W is the areal mass density in mg/cm², and G is the flexural rigidity representing resistance to bending per unit width. Because flexural rigidity increases with the cube of bending length (c³), a small reduction in bending length yields a massive reduction in stiffness. When twill’s floating yarns reduce the bending length from 4.2 cm to 2.9 cm, the resulting flexural rigidity drops by over 67 percent, transforming a board-like textile into a pliable, wearable substrate.

Cusick Drape Meter Testing (ISO 9073-9)

While cantilever bending measures one-dimensional stiffness along the warp or weft grain, true drape involves complex compound curvature across multiple axes simultaneously. The Cusick Drape Meter evaluates this behavior by supporting a 30-centimeter circular fabric specimen on an 18-centimeter horizontal disc. The unsupported outer annular ring drapes downward under gravity, forming a wavy shadow pattern:

Cusick Drape Coefficient Formula (ISO 9073-9)

DC% = [(As - Ad) / (AD - Ad)] x 100

Where As is the projected area of the draped specimen shadow, Ad is the area of the support disc, and AD is the total area of the flat circular specimen. A lower drape coefficient (30% to 45%) indicates a flexible textile that forms numerous deep, fluid folds (multi-nodal drape). A higher drape coefficient (65% to 85%+) indicates a stiff textile that resists bending and forms only a few wide, rigid flares (cylindrical drape).

Wrinkle Recovery Dynamics: Stress Dispersion and AATCC Testing

Wrinkle resistance is the capacity of a fabric to resist creasing under compressive deformation, while wrinkle recovery is its capacity to return to an unwrinkled, planar state after the deforming forces are removed. When a garment is worn, localized pressure at knees, elbows, seat panels, and waistbands compresses the textile plies, forcing fibers and yarns past their elastic yield points.

Under AATCC Test Method 66, midweight 100% cotton twill achieves a Crease Recovery Angle of 208 degrees, exceeding equivalent plain weave by 36 degrees. Twill’s 45-degree diagonal ribs act as shock absorbers, spreading compressive folding stress across adjacent yarn floats. This mechanical stress dispersion prevents the sharp, localized crease lines that form when orthogonal yarns are crushed at rigid plain-weave crossover nodes.

Standardized Crease Testing: AATCC 66 vs. AATCC 128

The textile industry evaluates wrinkle behavior through two distinct standard protocols developed by the American Association of Textile Chemists and Colorists (AATCC):

• AATCC Test Method 66 (Crease Recovery of Fabrics: Angle Method): Evaluates quantitative recovery in degrees. A folded specimen is placed under a 500-gram load for 5 minutes, transferred to a circular protractor clamp, and allowed to relax for 5 minutes. The resulting angle between the folded legs is measured across warp and weft directions and summed into the total Crease Recovery Angle (CRA). Higher numbers signify superior rebound. Untreated plain canvas typically scores 160° to 175°, while cotton twill reaches 200° to 220°.
• AATCC Test Method 128 (Wrinkle Recovery of Fabrics: Appearance Method): Evaluates qualitative macroscopic smoothness. Specimens are crushed around a cylinder under a 3,500-gram deadweight for 20 minutes, relaxed for 24 hours under ASTM D1776 conditions, and evaluated against 3D plastic replicas from Grade 1.0 (severe wrinkles) to Grade 5.0 (completely smooth).

Why the Diagonal Wale Visually Camouflages Micro-Creases

Beyond its mechanical capacity to rebound from folding strain, twill possesses an optical advantage: the three-dimensional diagonal wale ridge creates a textured surface that scatters light. On a completely flat, plain-woven poplin or broadcloth, even a tiny surface crease casts a stark, unbroken linear shadow that catches the human eye immediately. On a twill surface, the diagonal ridges break up linear shadows, effectively camouflaging minor surface rumpling.

Fiber Influence: 100% Cotton vs. Polyester Blends

While weave structure provides the mechanical framework for stress distribution, the ultimate ceiling for wrinkle recovery is governed by polymer chemistry. Designers and procurement teams must recognize that twill is a structural geometry, not a fiber composition.

Pure cotton twill exhibits moderate natural wrinkle recovery because amorphous cellulose chains shift and form temporary hydrogen bonds when compressed under body heat and ambient humidity. Blending 35 percent polyester with 65 percent cotton introduces synthetic polymer chains with over 70 percent elastic work recovery. In laboratory evaluations, this blend elevates the AATCC 128 wrinkle appearance score from Grade 3.2 to Grade 4.5.

The Mechanism of Cotton Wrinkling

Cotton fibers are composed of roughly 90 percent cellulose. Within the fiber, crystalline regions provide tensile strength, while amorphous regions provide moisture absorption. Adjacent cellulose molecules within amorphous zones are held together by weak hydrogen bonds between hydroxyl groups. When cotton garments are worn, body heat combined with ambient perspiration or humidity breaks these bonds. Under pressure, the cellulose chains slide past one another. When the pressure releases and moisture evaporates, the hydrogen bonds reform in the newly distorted configuration, locking a crease into place.

The Role of Synthetic Blending and Resin Finishing

To overcome cotton’s natural tendency to crease while preserving its breathable comfort, textile engineers employ two primary solutions:

• Intimate Fiber Blending (Poly-Cotton Twill): Combining staple cotton fibers with polyester filaments (commonly 65% polyester / 35% cotton) creates a composite yarn structure. Polyester is hydrophobic and exhibits exceptional elastic recovery. During compressive creasing, the polyester fibers act as microscopic internal springs, pulling the cotton fibers back into planar alignment as soon as external weight is removed.
• Durable Press Chemical Finishing (DMDHEU Resin): For 100% cotton fabrics requiring pressed pleats with zero surface wrinkling, mills apply crosslinking resins such as dimethyloldihydroxyethyleneurea (DMDHEU). The resin reacts with adjacent hydroxyl groups in cotton’s amorphous cellulose, creating strong covalent ether crosslinks. These bridges prevent cellulose chains from slipping, raising the Crease Recovery Angle from 208° to over 250°.

Empirical Laboratory Benchmarking Dataset

To quantify the mechanical performance of twill across varying weights, constructions, and fiber blends, Canvas ETC’s technical testing laboratory conducted standardized evaluations on production roll yardage. All fabric specimens were conditioned in our testing facility in accordance with ASTM D1776 (70 ± 2°F [21 ± 1°C], 65 ± 2% relative humidity) for 24 hours prior to physical evaluation.

Comparing Grade B (7.5 oz chino twill) with the Control (7.5 oz plain duck canvas) illustrates the direct influence of weave architecture on fabric stiffness. While both specimens possess identical 7.5 oz/yd² mass and identical Ne 20/2 yarn linear densities, the twill weave demonstrates a 31% shorter bending length (2.9 cm vs. 4.2 cm) and a 38% lower Cusick drape coefficient (42% vs. 68%). In addition, Grade C (65/35 poly-cotton twill) achieves the highest crease resistance in the study, posting a 262-degree Crease Recovery Angle and a Grade 4.5 appearance rating.

Selecting Twill Fabric Weights by Application

Specifying the correct fabric weight prevents production failures, seam tearing, and poor garment drape. Cotton twills divide into four functional tiers based on areal mass, thread density, and float length:

For commercial apparel cutters and uniform makers evaluating weight tiers, review our cotton twill fabric weight and GSM guide. For furniture upholstery, dining chair covers, and washable slipcovers, our 12 oz brushed bull denim twill delivers high abrasion endurance combined with the soft, cascading drape that rigid canvas cannot match. Makers and production managers evaluating hand, drape, and color before placing roll orders can request commercial textile swatch samples directly from our distribution facility.

Twill vs. Plain Weave Canvas Duck: The Structural Showdown

Apparel designers and industrial makers frequently ask whether they should specify #10 numbered cotton duck canvas or cotton twill for a project. While both textiles use 100% natural cotton fibers, their mechanical profiles diverge across every structural axis:

While plain canvas duck and cotton twill share identical fiber composition and mass brackets (5 to 14 oz/yd²), their structural behaviors diverge sharply. Canvas duck locks yarns into a tight 1/1 grid, creating rigid planar stability suitable for freestanding tote bags and outdoor tents. Cotton twill employs 3/1 diagonal floats, providing pliable articulation for apparel and slipcovers while delivering 34 percent higher Elmendorf tear resistance.

For applications requiring weatherproof outdoor shelter or structural tarps, our water-repellent boat shrunk army duck canvas provides unmatched barrier stability. Conversely, for garments, aprons, and washable covers, twill remains superior. For an extended technical teardown of 1/1 grid mechanics, read our in-depth analysis of plain weave canvas construction and characteristics.

Commercial Manufacturing Case Studies

To validate our laboratory findings in commercial production environments, we conducted two multi-week manufacturing trials with commercial partners across the United States.

Case Study 1: Uniform Trouser Durability and Laundry Cycling

The Operational Challenge: The client historically specified 7.5 oz plain-weave cotton poplin for summer trousers. Field deployments resulted in recurring complaints: pants formed unsightly wrinkles across the lap within two hours of driving, knee creases bagged out permanently, and crotch seams suffered tension blowouts during repetitive climbing.

Canvas ETC Technical Intervention: We supplied sample production yardage of our 7.5 oz 65/35 poly-cotton twill (Grade C) and subjected both fabrics to an accelerated 50-cycle commercial laundry trial (140°F wash, tunnel air-dry finish).

Quantified Performance Results:

• Trousers constructed with 7.5 oz twill maintained crisp front pleats while resisting random rumpling, averaging an AATCC 128 appearance rating of 4.3 after 50 wash cycles, compared to 2.4 for the plain-weave poplin.
• The diagonal mechanical elasticity of the 3/1 twill weave reduced shear tension at crotch gussets, lowering seam failure rates by 44 percent over a 6-month field trial.
• Seam puckering along outseams dropped from an AATCC 88B rating of 2.8 in the plain weave to 4.2 in the twill, eliminating factory rework.

Case Study 2: Hospitality Slipcovers and Curved Seating Contours

The Operational Challenge: The design specification called for washable, removable white slipcovers. The contractor initially cut 10 oz plain cotton duck canvas, but the rigid canvas produced stiff, boxy corners that bunched awkwardly around curved chair backs. Additionally, after guests sat on the cushions, deep compression creases remained visible for hours.

Canvas ETC Technical Intervention: We recommended switching to our 12.0 oz piece-dyed bull denim twill (Grade E) in natural white.

Quantified Performance Results:

• Despite being 20% heavier by mass (12 oz vs. 10 oz), the bull denim demonstrated a much lower proportional bending resistance, cascading cleanly over curved chair backs with zero boxy tenting.
• Under repeated seating compression tests, the diagonal floats of the bull denim dispersed pressure, recording an AATCC 128 recovery grade of 3.6 compared to 2.2 for the 10 oz duck canvas. Deep fold marks relaxed naturally within 30 minutes of unweighting.
• The client completed the 120-chair installation without a single re-patterning adjustment, reducing cutting-room scrap by 14 percent.

Commercial Machine Setup, Sewing, and Laundering SOP

Sewing twill textiles successfully across commercial cutting lines requires configuring machinery for diagonal wale interaction. When needles penetrate twill, the diagonal yarn floats exert asymmetrical lateral deflection forces on the needle blade.

When stitching cross-seam intersections on heavy twill (such as where an inseam crosses a crotch seam), use a clearance leveling plate under the back of the presser foot to prevent needle deflection against the needle plate. To stabilize waistbands, pocket bag mouths, and curved shoulder seams against bias stretching, commercial fabricators stay-tape allowances along seam lines. For commercial seating and hospitality slipcover specifications, review our guide to high-traffic upholstery textiles to align Wyzenbeek abrasion endurance with drape requirements.

Commercial Preshrinking and Pressing Protocol

100% cotton twill undergoes relaxation shrinkage along its warp grain during initial laundering. Unwashed greige twill shrinks between 5% and 8% along the warp, while sanforized commercial yardage exhibits under 3.5% residual shrinkage. To maintain dimensional stability and optimize wrinkle recovery across finished goods, follow this four-step commercial procedure:

1. Launder at 140°F (60°C): Wash cut yardage using a mild non-ionic detergent. The heated bath releases internal yarn tensions induced during high-speed loom insertion.
2. Tumble Dry on Medium Heat: Dry until slightly damp (approximately 5% moisture retention). Avoid over-drying to prevent brittle fiber dehydration.
3. Steam Press along the Warp Grain: Press panels using a commercial steam press or vacuum iron set to 300°F (cotton setting). Apply steam pressure parallel to the straight lengthwise warp grain. Never pull or stretch the fabric diagonally across the 45-degree bias wale during pressing, as this distorts the weave geometry.
4. Allow Full Planar Relaxation: Lay pressed panels flat on cutting tables for at least 30 minutes before marker layout and pattern cutting, allowing fibers to cool and establish stable equilibrium dimensions.

Following these standard water temperature and pressing parameters preserves fabric dimensional stability and minimizes post-wash surface creasing across commercial apparel lines.

Frequently Asked Questions About Twill Drape and Wrinkle Recovery

Why does twill fabric drape better than plain weave?

Twill fabric drapes more fluidly because its diagonal float structure reduces the number of yarn interlacing points by 33 to 50 percent compared to plain weave. With fewer crossover friction nodes, adjacent yarns articulate and slide freely under gravity, yielding lower bending length and lower flexural rigidity.

Is cotton twill naturally wrinkle resistant?

Cotton twill provides structural crease resistance because its diagonal ribs disperse compressive force across adjacent yarn floats, preventing sharp fold creases. However, pure cotton twill still experiences moderate wrinkling due to hydrogen bond shifts in amorphous cellulose, achieving an AATCC 128 appearance rating of Grade 3.2 unless blended with polyester or resin treated.

What is the difference between twill and canvas drape?

At identical fabric weights, twill exhibits a 31 percent shorter ASTM D1388 bending length and a 38 percent lower Cusick drape coefficient than plain duck canvas. Canvas locks yarns into a rigid 1/1 grid that resists bending to hold freestanding shapes, whereas twill flows in soft, multi-nodal folds suitable for apparel and slipcovers.

How does blending polyester with cotton improve twill wrinkle recovery?

Blending 35 percent polyester with 65 percent cotton introduces synthetic polymer fibers with over 70 percent elastic work recovery. When compressed, the polyester filaments act as microscopic springs that pull the twill matrix back into planar alignment, increasing the AATCC 66 Crease Recovery Angle from 208 degrees to 262 degrees and raising the AATCC 128 appearance score to Grade 4.5.

What twill fabric weight provides the best drape for trousers and apparel?

Midweight 7.0 to 9.0 oz/yd² (237 to 305 GSM) chino twill offers the balanced combination of drape fluidity and crease retention for trousers. It provides a 2.9 cm bending length for natural leg drape while holding sharp pressed creases along the warp grain without bagging out at the knees.

Quick Reference Parameters:

• GSM Conversion Factor: Multiply ounces per square yard by 33.906 to obtain GSM; divide GSM by 33.906 to obtain imperial ounces.
• Tear Resistance Mechanism: Twill yields 34% to 48% higher Elmendorf tear strength than plain canvas of equal mass due to yarn float bundling.
• Apparel Workhorse: 7.5 oz chino twill (254 GSM, Ne 20/2 yarn) delivers balanced flexural drape with high tensile endurance.
• Upholstery Workhorse: 10 oz to 12 oz solid piece-dyed bull denim exceeds 30,000 Wyzenbeek double rubs for washable slipcovers.
• Tooling Standard: Use Schmetz 90/14 Jeans needles for midweight twill and 100/16 or 110/18 with Tex 60 thread for heavy twill.

At Canvas ETC, we mill, finish, and distribute specification-grade cotton twill textiles for makers, apparel brands, cut-and-sew workshops, and institutional buyers across the United States. Choosing the correct fabric weight determines whether a finished product delivers comfortable joint articulation or structural resistance under load.

A frequent procurement pitfall involves confusing square yard weight with linear yard weight. A linear yard measures 36 inches along the roll length, but its physical mass depends on loom width. For example, a 10-ounce linear yard cut from a narrow 45-inch bolt yields an areal density of only 8.0 oz/yd² (271 GSM). Conversely, the same 10-ounce linear yard cut from a wide 60-inch roll yields 6.0 oz/yd² (203 GSM). Throughout our inventory catalog and this technical reference, all ounce ratings reflect true areal density per square yard.

Cotton Twill Weight Tiers and GSM Conversion Matrix

Cotton twill divides into four functional tiers based on yarn linear density (English Cotton Count Ne), thread packing (ends and picks per inch), and weave float architecture (2/1 versus 3/1). The following master conversion matrix details construction metrics across our commercial inventory:

For apparel cutters seeking balanced drape and crease retention, our 7 oz midweight cotton twill provides dependable performance under repetitive home laundering. To examine float geometry, diagonal wale angles, and loom drafting in detail, review our guide to twill weave structure and wale patterns.

7 oz vs. 10 oz Cotton Twill: Drape, Durability, and Project Suitability

Deciding between 7.5 oz chino twill and 10.0 oz utility twill represents the most critical decision for apparel designers and commercial cutters. While both fabrics feature a 3/1 warp-faced diagonal rib, their physical yarn counts produce stark differences in flexural stiffness, tensile breaking force, and tear propagation.

Seven-ounce cotton twill provides an ASTM D1388 bending length of 2.9 centimeters for flexible apparel drape, whereas ten-ounce cotton twill exhibits a 4.4-centimeter bending length with an Elmendorf tear strength of 12.4 pounds-force. Under standardized falling-pendulum testing (ASTM D1424), ten-ounce twill demonstrates 34 percent higher tear resistance than plain-weave cotton canvas of identical mass because diagonal yarn floats bundle together under shear stress to dissipate tearing forces.

To quantify these mechanical differences, our quality assurance laboratory tested four production grades under controlled atmospheric conditions:

Laboratory Testing Note: Tensile breaking evaluations were performed on a calibrated constant-rate-of-extension (CRE) machine at 12 inches per minute with 1×1-inch steel clamps. Elmendorf evaluations utilized a falling-pendulum apparatus. Dimensional change was calculated after three consecutive 140°F wash and high tumble cycles.

Our findings verify that Grade B (7.5 oz two-ply chino) achieves 75% of the tensile strength of Grade C (10.0 oz utility twill) while maintaining a 34% lower bending length. The two-ply Ne 20/2 yarn construction packs fibers tightly, yielding high burst strength without the rigid hand of single-ply 10 oz yarns. For tailored pants and lightweight jackets, 7.5 oz is balanced. When building commercial work trousers, heavy aprons, or tool bags, 10 oz provides necessary puncture resistance and abrasion longevity.

Plain Canvas Duck vs. Cotton Twill Tear Mechanics

Cutters frequently evaluate whether to specify numbered cotton duck canvas or cotton twill of equivalent weight. While both fabrics utilize natural cotton fibers, their interlacing geometries respond differently to physical force:

For outdoor gear, boat covers, and rugged gear bags requiring barrier firmness, our waxed cotton canvas textiles deliver durable water repellency. For applications requiring washable flexibility and ergonomic drape, twill remains the preferred choice. For an extended engineering analysis, read our detailed canvas vs. twill weave comparison.

Selecting Cotton Twill Ounce Weights by Application

Specifying the proper weight bracket eliminates seam blowout and excessive garment weight. We group application specifications into four primary categories:

1. Lightweight Shirting and Linings (5.0 to 6.5 oz / 170 to 220 GSM)

Lightweight cotton twill utilizes high yarn counts (Ne 30/1 to 40/1) woven in a 2/1 float structure. This yields an ASTM D1388 bending length under 2.5 centimeters, producing a breathable hand suitable for button-down dress shirts, blouses, interior pocket bags, and summer jackets. It feeds smoothly across standard domestic or light commercial feed dogs without puckering.

2. Midweight Trousers, Chinos, and Uniforms (7.0 to 9.0 oz / 237 to 305 GSM)

Midweight twill represents the industry standard for casual chinos, culinary coats, service uniforms, and chore shirts. Constructed with Ne 20/2 or Ne 16/1 yarns, this fabric delivers Elmendorf tear resistance between 7.5 and 9.5 pounds-force. It holds sharp creases along the warp grain while providing natural diagonal pliability across the 45-degree wale, eliminating seam tears at crotch gussets and knee stress points.

3. Utility Workwear and Chore Jackets (9.5 to 11.0 oz / 322 to 373 GSM)

Utility-grade twill uses open-end carded yarns (Ne 12/1 to 10/1) packed at high ends per inch. With tensile breaking strength exceeding 180 pounds-force warp, this weight tier resists snagging, industrial friction, and aggressive laundering. It is specified for carpenter pants, work aprons, chore overshirts, and tote linings. When assembling pocket joins and waistband attachments, reinforcing seams with reinforcing cotton twill tape prevents seam stretching under load.

4. Bull Denim Upholstery, Slipcovers, and Heavy Gear (11.5 to 14.0 oz / 390 to 475 GSM)

Bull denim is a heavy 10 to 14 ounce 100% cotton fabric woven in a 3/1 warp-faced twill and dyed in the piece for solid, uniform coloration. Exceeding 30,000 double rubs on the Wyzenbeek abrasion test (ASTM D4157), bull denim delivers the abrasion resistance and structural density needed for washable sofa slipcovers, dining upholstery, and work aprons while offering softer tactile drape than stiff canvas duck.

Our commercial bull denim fabric yardage features combed cotton yarns that accept piece dyeing and garment washing cleanly. For complete cutting layouts, seam allowances, and cushion construction guidelines, consult our guide to bull denim applications.

Machine Tooling, Needle Sizing, and Thread Standards

Sewing cotton twill across varying weights requires matching needle blade thickness, point geometry, and thread linear density. Attempting to stitch 10 oz utility twill or 12 oz bull denim with standard universal needles causes needle deflection, thread fraying, and skipped stitches across felled seam intersections.

Sewing ten-ounce cotton twill requires a Schmetz size 100/16 or 110/18 Jeans needle, Tex 60 bonded polyester thread, and a 3.5-millimeter stitch length. When assembling multi-layer flat fell seams or attaching pocket facings, a walking foot or compensating presser foot is necessary to feed dense plies evenly and prevent needle deflection, skipped stitches, and thread shearing.

When stitching heavy multi-ply intersections (such as where a flat fell inseam crosses a thick crotch seam), reduce machine speed and use a clearance plate or jean-a-ma-jig under the rear of the presser foot. This levels the foot angle and prevents needle deflection against the throat plate. For advanced machinery adjustments, review our heavyweight fabric sewing and needle guide.

Dimensional Stability and Washing SOP for Cotton Twill

Cotton is a hydrophilic natural fiber. During spinning and weaving, warp threads are held under high mechanical tension. When exposed to hot water and agitation, these internal stresses release, causing relaxation shrinkage along the lengthwise grain.

Commercial sanforized cotton twill exhibits under 3.5 percent residual shrinkage after three laundering cycles at 140°F (60°C), whereas unbleached greige cotton twill undergoes 5 to 8 percent relaxation shrinkage along the warp. Fabricators working with unwashed greige twill must serge cut ends, wash at 140°F, and tumble dry on high heat before pattern cutting to release internal loom stresses and stabilize finished garment dimensions.

Manufacturing Notice: Cutting garment panels from raw, unwashed greige twill without pre-shrinking produces severe lengthwise shrinkage after customer laundering. Always calculate cutting allowances based on fully relaxed yardage.

To stabilize cotton twill roll yardage prior to cutting, our production facility mandates the following five-step protocol:

1. Serge Raw Cut Ends: Overlock all raw crosswise cuts using a 3-thread serger or wide zig-zag stitch. Because twill floats unravel in water, unsewn cut edges can lose up to two inches of yardage into loose fiber nests during agitation.
2. Launder in Hot Water: Machine wash the yardage at 140°F (60°C) using a mild non-ionic liquid detergent. Hot water accelerates fiber swelling and relieves internal warp tension.
3. Tumble Dry on High Heat: Dry the fabric completely in a commercial dryer on high heat. The mechanical tumbling action combined with moisture evaporation locks the yarns into their relaxed spatial geometry.
4. Steam Press the Yardage: Press the dry fabric with a heavy commercial steam iron along the straight warp grain. Avoid pulling or stretching the fabric diagonally across the bias during pressing.
5. Re-Measure and Calculate Cutting Allowance: Measure the relaxed yardage across both dimensions. Unbleached greige twill will have lost 5% to 8% in length and 2% to 3% in width. Factor these final dimensions into pattern markers before cutting panels.

For detailed water temperature charts and commercial wash parameters, see our step-by-step washing and preshrinking cotton twill protocol.

Frequently Asked Questions About Cotton Twill Weights

What weight is cotton twill fabric?

Cotton twill fabric ranges from 5 to 14 ounces per square yard (170 to 475 GSM). It is categorized into lightweight shirting (5 to 6.5 oz), midweight apparel (7 to 9 oz), utility workwear (9.5 to 11 oz), and heavyweight bull denim (11.5 to 14 oz).

What is 7 oz cotton twill used for?

Seven-ounce cotton twill (approximately 237 GSM) is a midweight textile balancing flexible drape with tensile durability. It is standard for tailored chinos, work shirts, culinary aprons, skirts, and lightweight casual jackets.

Is cotton twill heavier than canvas?

Cotton twill and cotton canvas span identical weight ranges (5 to 14 oz/yd²). However, canvas feels stiffer due to its plain 1/1 weave, while twill provides greater diagonal pliability and 34 to 48 percent higher Elmendorf tear strength.

How much does unbleached cotton twill shrink when washed?

Unbleached greige cotton twill shrinks between 5 and 8 percent along the lengthwise warp grain during its initial hot wash cycle. Sanforized commercial twill exhibits under 3.5 percent residual shrinkage under AATCC 135 standards.

What needle size should you use for 10 oz cotton twill?

Sewing 10 oz cotton twill requires a Schmetz size 100/16 or 110/18 Jeans or Denim machine needle, paired with Tex 60 bonded polyester thread, a 3.5-millimeter stitch length, and a walking foot to prevent skipped stitches across felled seams.

Commercial Sourcing and Production Solutions at Canvas ETC

Canvas ETC operates as a wholesale fabric supplier and custom textile-production partner based in the United States. We bridge the gap between material specification and industrial fulfillment, serving independent makers, emerging apparel brands, commercial upholstery manufacturers, and institutional clients.

Our primary manufacturing and sourcing advantages include:

• Volume Roll and Cut-Yard Purchasing: Order sample yardage for prototyping or bulk production rolls with volume tier discounts.
• Specification-Grade Canvas and Twill Authority: We stock pure cotton twill, bull denim, numbered canvas duck, waxed cotton, and mil-spec technical synthetics under strict quality tolerances.
• Custom Production Support: In-house digital fabric printing, slitting, custom coloring, pattern digitizing, and contract sewing support to convert raw textiles into finished commercial goods.

Whether you need 50 yards of 7.5 oz chino twill for an apparel line or full truckload quantities of 12 oz bull denim for contract seating, our textile specialists are available to verify specifications, provide swatch rings, and support your production run. Contact Canvas ETC today to request sample swatches or discuss wholesale pricing for your upcoming program.

One figure shapes every decision in a rewax, and it comes from our own finishing specifications rather than from a consumer product label. We build our waxed 13.5 oz waxed Army Duck in Field Tan from a 10.10 oz per square yard base cloth plus a wax add-on of roughly 3.5 oz per square yard, and our heavier waxed line starts from a 12 oz single-fill duck carrying 6 to 8 oz of wax per square yard. Otter Wax’s published coverage guide of 4 May 2026 works out at 2 to 4.5 ounces of wax per linear yard of thin or factory-treated fabric, which at a 58 to 60 inch width is roughly 1.25 to 2.8 ounces per square yard. A home rewax tops up part of the factory wax load. Rewaxing is maintenance, not remanufacture, and that changes what you should expect from it.

This guide covers cotton and cotton-majority waxed canvas: waxed duck, Army duck, tin cloth, waxed cotton outerwear and waxed canvas bags, tarps and covers. It does not cover fabrics finished with silicone, polyurethane or a PFAS-based durable water repellent, because wax will not bond to a synthetic barrier. Rewaxing repairs a finish. Rewaxing does not repair torn, rotted or abraded base cloth.

What you need to rewax waxed canvas

Rewaxing waxed canvas takes five things: a fabric wax, a soft natural-bristle brush, a hair dryer, a lint-free cotton rag, and somewhere ventilated to hang the item for three days. The list below is the kit Canvas ETC keeps on the finishing floor for touch-up work, and most substitution warnings in it come from a named manufacturer.

Two optional items earn their place on larger jobs. A wax smoothing tool presses bar wax into a heavy weave more evenly than fingertips do. A sheet of kraft or brown paper sits between the sole plate and the fabric when flattening crease marks in heavy waxed duck with an iron.

How to rewax waxed canvas step by step

Rewaxing waxed canvas follows seven steps in a fixed order: clean, dry, warm, apply, work in, melt in and wipe, cure. The order matters because wax bonds to clean, dry, warm cotton and refuses to bond to anything else.

1. Brush the waxed canvas clean. Work a soft natural-bristle brush over the dry fabric to lift dirt out of the weave, then sponge stubborn areas with cold water. J. Barbour and Sons, in its official care guidance for 6 oz waxed cotton, instructs cleaning with cold water and a sponge and warns that a washing machine removes the wax coating permanently, after which the garment cannot be re-waxed at all.
2. Dry the waxed canvas completely. Hang the item at room temperature until no part of it is damp, including seam allowances and strap webbing. Wax laid over damp cotton seals the moisture in, which is how mildew starts.
3. Warm the fabric surface. Run a hair dryer over the panel you are about to treat, held roughly six inches away, or lay the item in direct sun for twenty minutes. Warm cotton accepts wax evenly. Cold cotton takes it in streaks.
4. Apply the wax in overlapping strokes. Rub a wax bar across the surface like a bar of soap, or brush on melted dressing with a rag. Treat seams, folds, cuffs, strap anchors and base panels first, because those are the places the wax wears off first. Sailrite, in its waxed canvas care guide, warns against letting the bar touch adjoining leather, faux leather or upholstery fabric on mixed-material items.
5. Work the wax into the weave. Press the wax down with fingertips or a smoothing tool until the white bloom on the surface disappears and the colour deepens evenly. Sailrite calls this the step to take time over, because it is what gets the wax to penetrate the canvas rather than sit on it.
6. Melt the wax in and wipe off the excess. Pass the hair dryer over the treated area until the wax turns glossy and sinks into the weave, then wipe any pooled wax off with a lint-free rag while the surface is still warm. Barbour’s instruction at this point in its own procedure is the same: wipe off any excess wax.
7. Cure the item before use. Hang the item in a warm, dry, ventilated place. Otter Wax specifies 24 to 72 hours and defines the endpoint as a surface that no longer feels tacky. In Canvas ETC shop testing in March 2026 on twelve rewaxed 13.5 oz Army Duck swatches held at 70 degrees Fahrenheit and 45 percent relative humidity, seven of twelve still transferred lint at 24 hours, two of twelve at 48 hours, and none at 72 hours, so 72 hours is the number to plan for indoors.

Two rules apply throughout. Treat one panel at a time rather than waxing the whole item and heating it afterwards, because wax that cools before it is melted in stays on the surface. And apply thin coats: a second coat next week costs nothing, while stripping an over-waxed panel costs an afternoon.

How much wax do you need to rewax waxed canvas?

A jacket-sized rewax takes one 5 oz wax bar or one 8 oz tin of heat-activated dressing, and a large tarp takes a gallon of liquid compound per 100 square feet. Those figures come from the manufacturers, and they are much smaller than the wax load a finisher puts on the same fabric at the mill.

Here is our own arithmetic on those published figures, with the inputs shown so you can check it. Otter Wax publishes yards of coverage per unit, not ounces per yard, so dividing gives 2 ounces per linear yard for the 5 oz bar and about 4 to 4.5 ounces per linear yard for the 2.25 oz bar and the two tins, all read from the thin or factory-treated column. A linear yard of 58 to 60 inch goods is about 1.6 square yards, so that range converts to roughly 1.25 to 2.8 ounces of wax per square yard. Otter Wax notes that heavier fabrics yield less coverage than its mid-weight baseline, so on a 13.5 oz duck treat that range as a floor rather than a target. Set against the 3.5 ounces per square yard we apply to our 13.5 oz Army Duck, a single home rewax replaces roughly a third to four fifths of the factory load. Set against the 6 to 8 ounces per square yard on our heavy waxed duck, it is closer to a sixth to a half.

Otter Wax says the same thing in words, without the arithmetic: re-waxing an already-waxed garment uses considerably less product than a first treatment, because the wax is topping up what is already there rather than building from scratch. Otter Wax also advises sizing up rather than down, because running out of wax mid-project produces uneven coverage and uneven coverage produces inconsistent water repellency. Plan for a top-up, buy one size up from your estimate, and expect to want a second thin coat rather than one heavy one.

Which wax should you use to rewax waxed canvas?

The right wax for rewaxing waxed canvas is set by the size and type of the item, not by brand preference. Three formats exist, they behave differently, and picking the wrong format is the most common reason a rewax comes out blotchy.

We sell the liquid compound and we still tell people not to use it on a jacket. If the item is a garment or a bag, a bar or a heat-activated dressing from a wax specialist such as Otter Wax, Barbour or Fjallraven is the better product, and the petroleum solvent base and the Proposition 65 warning on a liquid compound are reasons enough on their own. Our compound earns its place on square yards of tarp and tent, where rubbing a bar over 200 square feet is not a realistic afternoon.

How often should you rewax waxed canvas?

Once a year is the manufacturer consensus for waxed canvas in regular use. Three independent sources land on the same interval: Barbour states “we recommend you re-wax your jacket once a year, depending on how often you wear it”; Otter Wax recommends a full reapplication once a year, with more frequent touch-ups on high-wear areas such as hoods, cuffs and knees; and Sailrite recommends rewaxing every year or so, especially for items that spend time outdoors in sun and rain.

Calendars are a fallback. The reliable trigger is whether water still beads on the surface, and an item that still beads at eighteen months does not need wax just because a year has passed.

How to tell when waxed canvas needs rewaxing

Waxed canvas needs rewaxing when water stops beading on the surface and starts darkening into the weave. That single test is more reliable than any calendar, and it takes ten seconds.

The test Canvas ETC uses on the finishing floor runs like this: sprinkle a tablespoon of cold water onto a flat, dry section of the fabric, wait thirty seconds, then look. Beads that sit up and roll off mean the wax is intact. Water that flattens into discs and leaves a dark patch after it is shaken off means the wax has thinned. Water that soaks straight in means the wax is gone from that panel. The formal, instrumented version of the same test is AATCC Test Method 22, the textile industry’s spray test, which scores surface repellency on a 0 to 100 scale.

Three visual signs support the water test. Wax-depleted waxed canvas goes pale and chalky along fold lines, cuffs, strap anchors and base panels, because those are the abrasion points. The fabric feels dry and papery rather than slightly waxy under a thumbnail. And creases stop holding their shape and start to look like ordinary cotton wrinkles. All three are stages of the same process we describe in how waxed canvas ages and builds patina, and the pale-at-the-fold stage is the point at which patina turns into wear.

How to clean waxed canvas before rewaxing

Waxed canvas is cleaned before rewaxing with a soft brush and cold water only. No detergent, no hot water, no washing machine, no dry cleaning. Barbour’s care guidance states that machine washing removes the wax coating permanently and that the jacket cannot be re-waxed afterwards, which makes this the one step in the whole procedure that is not recoverable if it goes wrong.

Spot cleaning strips the wax from the area it touches, so a cleaned patch always needs rewaxing afterwards even if the rest of the item does not. Otter Wax states this directly and recommends reapplying a light coat over any spot-cleaned area once it has dried. Our guidance on routine care and maintenance of waxed canvas covers the between-rewax routine that keeps cleaning jobs small.

Hair dryer or heat gun: what heat to use when rewaxing waxed canvas

Use a hair dryer, not a heat gun, when rewaxing waxed canvas. The wax needs to pass its melting point and nothing more, and a hair dryer clears that threshold comfortably.

The number that settles the argument is the melting point of the wax. The Food and Agriculture Organization of the United Nations gives beeswax a melting range of 61 to 66 degrees Celsius, commonly 62 to 65 degrees Celsius, which is 144 to 149 degrees Fahrenheit. That is the temperature the surface has to reach, and it is a low bar.

Otter Wax documents what happens when the bar is overshot. The company states that a rancid, oily or deep-fried smell happens when fabric wax is overheated during application, that a heat gun makes this more likely because it concentrates very high heat into one small area, and that the ingredients are meant to be warmed gently during application, not cooked. Otter Wax offers refined soybean oil at about 460 degrees Fahrenheit and unrefined soybean oil at about 320 degrees Fahrenheit as a general comparison for how plant oils degrade under heat.

We ran a single-panel comparison on our own finishing floor in March 2026. Three 12 inch by 12 inch panels of our 13.5 oz waxed Army Duck, one panel per heat condition, each received a weighed 6 gram dose of the same bar wax, applied by friction only, by hair dryer on high held about six inches away, and by heat gun on its low setting held about six inches away. After seven days of daily flexing, twenty full folds per day, the friction-only panel retained 3.9 grams of added weight, the hair-dryer panel 5.1 grams and the heat-gun panel 5.0 grams. Both heated panels retained roughly 30 percent more wax than friction alone, which is the finding. The 0.1 gram gap between the hair dryer and the heat gun sits inside the noise of a one-panel-per-condition comparison and should not be read as a difference. What did differ was the damage: the heat-gun panel carried two patches of uneven darkening and a burnt odour that took about two weeks to fade. The wax chemistry is worth knowing before you point heat at it, and we cover the base formulations in what waxed canvas is made of.

How long waxed canvas takes to cure after rewaxing

Plan for 72 hours of curing after rewaxing waxed canvas in a heated indoor space. Otter Wax specifies a window of 24 to 72 hours in a warm, dry place and defines the endpoint as a surface that no longer feels tacky. Sailrite specifies 24 to 48 hours hung in a warm dry location, preferably in sunlight. Barbour specifies drying overnight in a warm place, away from other garments, and warns that a freshly waxed jacket sheds excess wax for a while and should be kept off leather and upholstery.

We ran the window to find where inside it the tack actually stops. In March 2026 we cut twelve swatches, 12 inches by 12 inches, from 13.5 oz waxed Army Duck that had spent three seasons in outdoor service as a shop tarp. Each swatch was rewaxed with a beeswax-based bar at roughly 2 oz per square yard, warmed with a hair dryer and wiped. All twelve hung indoors at 70 degrees Fahrenheit and 45 percent relative humidity, out of direct sun. At 24, 48 and 72 hours we pressed a white cotton test cloth to each surface for 30 seconds under a 1 pound weight and looked for lint transfer.

Our reading is that 24 hours is the optimistic end of the published window and 72 hours is the number to plan for indoors. Cooler rooms, higher humidity and heavier wax applications all push the figure out further, which Otter Wax states as well. Sun and airflow pull it in.

How much water repellency a rewax actually restores

One rewax restores most of the water repellency waxed canvas has lost, but not all of it, and no amount of rewaxing makes waxed canvas waterproof. Otter Wax states the ceiling plainly: waxing makes fabric highly water-resistant rather than completely waterproof, and it will not make an item fully impervious to water in extreme conditions or long-term saturation.

We put a number on the recovery in March 2026 using AATCC Test Method 22, the standard textile spray test, which scores surface repellency on a 0 to 100 scale. Three panels per condition were tested, and each panel was graded independently by two people who agreed on every panel, so no averaging was needed.

The pattern follows from the quantities. A single home rewax lays down roughly 1.25 to 2.8 ounces of wax per square yard, derived from Otter Wax’s published coverage figures, against the 3.5 ounces per square yard we apply to this fabric at finishing, so it recovers a large share of the lost repellency and leaves a gap. A second thin coat closes most of what remains. Neither returns the fabric to its off-the-roll rating, and that is the honest expectation to set before starting. Our fuller treatment of the ceiling is in whether waxed canvas is waterproof or only water resistant.

How to rewax a waxed canvas jacket

Rewax a waxed canvas jacket with a melted dressing rather than a rubbed bar, and treat the outside only. Barbour’s official method for its 6 oz waxed cotton is to stand a tin of Thornproof Dressing in a container of water hot enough to soften it, wait about 20 minutes for the wax to reach a liquid consistency, then work the melted wax into the jacket with an old cloth, rag or sponge.

Four details separate a good jacket rewax from a poor one. Work the melted wax into seams, creases and dry patches first, which is where Barbour directs particular attention, because those are the panels that leak. Keep the tin sitting in the hot water while you work and top the container up with more hot water when the wax starts to harden, which Barbour also instructs. Keep wax away from the corduroy collar, the jacket lining and the pocket interiors, all three of which Barbour names as exclusions. And wax the exterior only: Otter Wax states that waxing both sides of a garment makes it stiff and less breathable, and recommends a single side for clothing.

Hang the jacket overnight in a warm place, away from other garments, then give it the full cure before wearing. Barbour warns that a newly waxed jacket sheds excess wax for a short period, so keep it clear of leather seats and upholstered furniture during that window.

How to rewax a waxed canvas bag or backpack

Rewax a waxed canvas bag or backpack with a solid wax bar, and put the heaviest coverage on the base panel, the strap anchors and the seams. Otter Wax describes the bar format as the one that gives direct control over where the wax goes and how much is applied, which is what a bag needs, because a bag wears unevenly in a way a jacket does not.

Empty the bag and turn out the pockets before starting, so the wax does not bridge across a closed fold and crack when the bag is next loaded. Work panel by panel, warming each with a hair dryer before the bar touches it. On a mixed-material bag, keep the bar off leather trim, faux leather panels and webbing: Sailrite’s guidance is to rub the wax only on the waxed canvas portions of a combination item. A cotton swab or the corner of a rag works better than the bar itself for waxing right up to a leather edge.

Bag hardware is the other thing to watch. Wax that pools in a zipper track stiffens the slider, so wipe zippers and buckle housings clean while the wax is still warm. If you are making the bag rather than repairing one, our waxed canvas for bags, packs and purses is finished for exactly this application and arrives at the full factory wax load.

How to rewax a waxed canvas tarp, tent or cover

Rewax a waxed canvas tarp, tent or cover with a liquid wax compound applied by brush, sprayer or paint roller, not with a bar. Surface area is the reason: our Canvak canvas wax refinishing compound covers 100 square feet per gallon, and rubbing a 5 oz bar over that area is not a realistic job.

Canvak is a wax-based refinishing compound for cotton fabrics whose active composition Canvas ETC publishes as 85 percent mineral spirits, 12.5 percent inactive ingredients and 2 percent zinc naphthenate. It is petroleum based, which is what gives it mildew resistance alongside water repellency, and it carries a California Proposition 65 cancer and reproductive-harm warning. Work outdoors or in a well-ventilated space, wear gloves, and keep it away from ignition sources while it flashes off.

The procedure is short. Brush, clean and dry the item first. Test the compound on a small, hidden area and let it dry before committing to the whole cover. Spray, paint or brush the compound on, working seams generously because seams are where covers fail. Then let the item air dry completely before folding or storing, and never pack a canvas tent or tarp away damp, because mildew will set in under the fresh wax. Canvak is for cotton only and must not be used on vinyl finishes or synthetic fabrics. For replacement rather than refinishing, our waxed canvas for tarps and covers ships by the linear yard or the full roll.

How to fix blotchy, sticky or over-waxed canvas

Blotchy or sticky waxed canvas after a rewax is almost always too much wax, an unfinished cure, or wax that was never melted in, and all three are fixable without stripping the item. Warm the affected area with a hair dryer and blot the softened wax away with a clean lint-free rag. Otter Wax publishes the same remedy for removing wax: gently warm the area and blot with a clean cloth or paper towel to lift it away.

If a rewax needs to come off entirely, Otter Wax’s method is to warm the area gently and blot the wax away with a clean cloth or paper towel, with a dedicated waxed canvas spot cleaner for the remainder. Removing the wax removes the water repellency along with it, so a stripped panel needs a fresh application afterwards.

Does rewaxing darken waxed canvas?

Yes, rewaxing darkens waxed canvas, adds a subtle sheen, and the colour change stays until the wax wears back. Otter Wax states this outright in its fabric care guidance: waxing will darken the fabric’s colour and add a subtle sheen, and may create a distressed or varied appearance, particularly on fabrics with texture or uneven dye.

The effect is strongest on light colours. A field tan or bone canvas shifts a full shade after a heavy application, while a charcoal or olive shifts barely at all. Our own product documentation flags the same behaviour from the manufacturing side: waxed goods carry greater shade variation than standard dyed cotton, which is why we ask customers matching an existing item to request a swatch rather than matching from a screen.

Otter Wax gives the same advice for judging coverage before committing, and it applies just as well to colour. Apply wax to a small hidden section, ideally a seam allowance or an interior panel, and assess it before treating the full project. Five minutes of testing removes the guesswork on a colour change that will not reverse for a year.

Common misconceptions about rewaxing waxed canvas

Seven false premises come up more often than any others when people ask us how to rewax waxed canvas. Each one is stated here as it is usually put, followed by what the evidence supports.

“Rewaxing makes waxed canvas waterproof again”

Rewaxing restores water resistance, not waterproofing. Otter Wax states that waxing makes fabric highly water-resistant rather than completely waterproof, and that it will not withstand extreme conditions or long-term saturation. In Canvas ETC spray testing in March 2026, a rewaxed panel of 13.5 oz waxed Army Duck scored 80 on the AATCC Test Method 22 scale against 100 for the same fabric off the roll.

“You have to strip the old wax off before rewaxing”

Stripping is unnecessary and counterproductive. Otter Wax states that its wax bonds easily with the existing wax or oil in factory-treated garments, including tin cloth jackets, waxed-cotton field coats and oilcloth totes, and that there is no need to strip the old wax first. Old wax is the surface the new wax keys into.

“Rewaxing and waxing raw canvas are the same job”

Raw canvas drinks far more wax than a rewax does. Otter Wax states that heavy or untreated fabric, including raw canvas and duck cloth, is highly porous and absorbs considerably more wax per square yard than a previously treated fabric, and its published coverage table cuts the yardage a given bar or tin will cover on untreated goods by a third to a half. Budget one and a half to two times the wax for a first treatment, and expect a fully waxed hand rather than a topped-up one.

“Any wax will do, including a candle”

Fabric waxes are blended to stay workable on cotton, and candle wax is not blended for cloth at all. Fjallraven’s Greenland Wax is a paraffin and beeswax blend built for garment use; Otter Wax uses beeswax with plant oils and no paraffin; Barbour’s Thornproof Dressing is a formula specific to waxed cotton outerwear. Our own waxed canvas is specified to stay flexible at cold temperatures, which is a property of the finishing blend rather than of wax in general.

“You can rewax any canvas, including synthetics”

Wax bonds to natural fibres and fails on synthetic barriers. Otter Wax states that if a fabric has been treated with silicone, polyurethane or a PFAS-based DWR spray, the wax cannot penetrate the synthetic barrier and will not bond properly. Canvak carries the same restriction from the other direction: cotton only, never vinyl finishes or synthetic fabrics. If you are not sure what you have, how to tell if canvas is waxed covers the identification tests, and a wax test on an inside seam settles it in an afternoon.

“A heat gun is the professional tool for this”

Beeswax melts at 61 to 66 degrees Celsius, commonly 62 to 65, according to the Food and Agriculture Organization of the United Nations, and a hair dryer clears that. Otter Wax states that heat guns concentrate very high heat into one small area and are the more likely cause of a rancid or deep-fried smell after waxing. In a Canvas ETC comparison in March 2026 using one 12 inch panel of 13.5 oz waxed Army Duck per heat condition, each given a weighed 6 gram wax dose, the heat-gun panel retained 5.0 grams after seven days of flexing against the hair-dryer panel’s 5.1 grams, a gap too small to call at one panel per condition, while adding two patches of uneven darkening and a burnt odour.

“Never put an iron near waxed canvas”

This one deserves a fuller answer, because the trade disagrees and our own documentation carries two instructions. The standard view, stated by Otter Wax, is that ironing waxed fabric is not recommended, because heat can soften and displace the wax and transfer residue onto the iron, and a hair dryer with hand shaping is the better approach. Canvas ETC’s waxed canvas product pages carry both a Laundering note saying to iron on low heat with a thin cloth barrier between the fabric and the iron, and a Features note saying crack and crease marks are a characteristic property of waxed Army Duck and can usually be removed with a medium-hot iron used over brown paper. The reconciling variable is the barrier. Kraft paper absorbs the displaced wax where a thin cloth transfers it, which is exactly the failure Otter Wax is warning about, and a 13.5 oz factory-waxed duck carries several times the wax load of a lightly bar-waxed garment, so it tolerates the higher setting where a light garment would not. Use low heat with a cloth if that is what you have. Use brown paper and a medium setting on heavy factory-waxed duck if you want the crease out. Use a hair dryer on garments.

When to stop rewaxing and replace the fabric instead

Stop rewaxing waxed canvas and replace the fabric when the base cloth has failed rather than the finish. Rewaxing repairs a coating. Rewaxing does nothing for cotton yarns that have abraded through, rotted from being stored damp, or torn along a stress line, and wax applied over any of those hides the problem for one season and returns it in the next.

When replacement is the answer, buying already-waxed fabric costs less effort than waxing raw duck from scratch, because the factory wax load runs 3.5 to 8 oz per square yard and reaching that by hand takes many coats. Our waxed canvas by the yard ships cut to the linear yard or as full rolls, in 36, 58 and 60 inch widths depending on the line. And if the item is a branded garment still in production, the manufacturer’s own repair and rewax service is often the better call than either option: Barbour, for one, will take a jacket in and re-wax or repair it directly.

Limitations of this guide

Four limits apply to the Canvas ETC shop testing reported in this guide, and stating them is part of reporting the results. All three tests used a single fabric, our 13.5 oz waxed Army Duck, and a single beeswax-based bar wax. Sample sizes were small: twelve swatches for the cure-time test, three panels per condition for the spray-rating test, and one panel per condition for the heat-method test. None of the work was run in an accredited laboratory, and the spray ratings were graded by eye against the AATCC Test Method 22 scale by two people rather than instrumented. The wax quantities per square yard quoted throughout are our own arithmetic on manufacturers’ published coverage figures, not figures those manufacturers publish directly.

What that supports and what it does not: the results indicate direction and rough magnitude for this fabric and this wax chemistry, and every result sits inside the range that Otter Wax, Barbour and Sailrite already publish. The results do not support ranking one wax brand against another, do not extrapolate to lighter waxed cottons or to blended technical shells such as G-1000, and do not establish durability over multiple seasons. Where this guide reports a manufacturer’s figure, that figure is attributed to the manufacturer by name. Where it reports our own measurement or our own calculation, the method, the sample size and the conditions are stated alongside it.

Key points

• Rewaxing waxed canvas is a seven-step procedure: brush clean, dry fully, warm the surface, apply wax in overlapping strokes, work the wax into the weave, melt it in and wipe off excess, then cure for 72 hours.
• Barbour, Otter Wax and Sailrite independently recommend rewaxing waxed canvas once a year for items in regular use, with more frequent touch-ups on high-wear areas.
• Canvas ETC applies 3.5 oz of wax per square yard to its 10.10 oz Army Duck and 6 to 8 oz per square yard to its 12 oz single-fill duck, while Otter Wax’s published coverage figures work out at roughly 1.25 to 2.8 oz per square yard for a home rewax of factory-treated fabric, so a home rewax replaces part of the factory wax load rather than rebuilding it.
• In Canvas ETC shop testing on twelve rewaxed 13.5 oz Army Duck swatches held at 70 F and 45 percent relative humidity in March 2026, seven of twelve still transferred lint at 24 hours, two of twelve at 48 hours, and none at 72 hours.
• In Canvas ETC spray testing using AATCC Test Method 22 in March 2026, a worn panel of 13.5 oz waxed Army Duck scored 50, rose to 80 after one rewax, and to 90 after a second coat, against 100 for the same fabric straight off the roll.
• Beeswax melts at 61 to 66 degrees Celsius, commonly 62 to 65, according to the Food and Agriculture Organization of the United Nations, which is why a hair dryer is sufficient and Otter Wax warns that a heat gun concentrates very high heat into one small area.

Frequently asked questions about rewaxing waxed canvas

How do you rewax waxed canvas?

Rewaxing waxed canvas means brushing the fabric clean, drying the fabric fully, warming the surface, applying fabric wax in overlapping strokes, melting the wax into the weave with gentle heat, wiping off the excess, and hanging the item to cure for 72 hours. Rewaxing restores surface water repellency on cotton waxed canvas.

How often should you rewax waxed canvas?

Once a year is the manufacturer consensus for waxed canvas in regular use. Barbour, Otter Wax and Sailrite all publish an annual interval. Items in constant outdoor exposure, such as tarps and hunting outerwear, benefit from a touch-up every three to six months at the wear points, while a lightly used indoor bag can go two years.

Can you use a heat gun to rewax waxed canvas?

A heat gun works but is the wrong tool for rewaxing waxed canvas. Beeswax melts at 61 to 66 degrees Celsius, commonly 62 to 65, according to the Food and Agriculture Organization, and a hair dryer clears that easily. Otter Wax states that heat guns concentrate very high heat in one small area and cause a rancid, deep-fried odour by cooking the natural oils in the wax.

How long does waxed canvas take to cure after rewaxing?

Otter Wax specifies 24 to 72 hours of curing in a warm, dry place, with the endpoint being a surface that no longer feels tacky. In Canvas ETC shop testing in March 2026 on twelve rewaxed 13.5 oz Army Duck swatches held at 70 F and 45 percent relative humidity, seven of twelve still transferred lint at 24 hours, two of twelve at 48 hours, and none at 72 hours.

Does rewaxing make waxed canvas waterproof again?

Rewaxing restores water resistance, not waterproofing. Otter Wax states plainly that waxing makes fabric highly water-resistant rather than completely waterproof. In Canvas ETC spray testing in March 2026, a worn panel of 13.5 oz waxed Army Duck rose from an AATCC Test Method 22 spray rating of 50 to 80 after one rewax, against 100 for the same fabric straight off the roll.

How much wax do you need to rewax a jacket?

One 5 oz wax bar or one 8 oz tin of heat-activated dressing covers a jacket-sized rewax. Otter Wax’s published coverage guide of 4 May 2026 puts a 5 oz bar at roughly 2.5 yards of thin or factory-treated fabric and an 8 oz tin of heat-activated dressing at roughly 2 yards, and advises sizing up rather than down, because running out mid-project produces uneven coverage.

Can you rewax waxed canvas that has a synthetic or DWR coating?

No. Otter Wax states that wax cannot penetrate silicone, polyurethane or PFAS-based DWR coatings and will not bond properly to them. Canvak, the liquid wax compound Canvas ETC sells, carries the same restriction and is specified for cotton only, never for vinyl finishes or synthetic fabrics. Test an inside seam before treating the whole item.

Why is my waxed canvas sticky after rewaxing?

Tack after rewaxing means either too much wax or an unfinished cure. Otter Wax defines the finished state as a surface that no longer feels tacky, and specifies 24 to 72 hours of curing. If the item is still tacky at 72 hours, warm the area gently and blot the softened wax away with a clean cloth, which is the wax-removal method Otter Wax publishes.

Oz to GSM Formula and Method

We use the conversion factor published in NIST SP 811 Appendix B.8. NIST lists one ounce per square yard as 0.03390575 kilograms per square meter. Multiplying kilograms by 1,000 produces 33.90575 grams per square meter.

GSM = oz/yd² × 33.90575

oz/yd² = GSM ÷ 33.90575

For a quick estimate, multiplying by 34 is close. The shortcut factor is about 0.278% higher than 33.90575, so we use the full factor when a specification or purchasing comparison needs consistent rounding.

Oz to GSM Conversion Table

We calculated each table value with 33.90575 and rounded the displayed result to two decimal places.

Converting Ounces per Linear Yard

A mass stated per linear yard cannot be converted to GSM until we know the fabric width. If a fabric weighs M ounces per linear yard and has a finished width of W inches, we first calculate ounces per square yard, then calculate GSM.

oz/yd² = 36M ÷ W

GSM = (36M ÷ W) × 33.90575

For example, a hypothetical fabric that weighs 8 ounces per linear yard at 60 inches wide has an area weight of 4.8 oz/yd². The converted result is 162.75 GSM. A different width changes the result even when the ounces per linear yard stay the same.

A catalog example shows the same distinction. Our 22 oz-per-linear-yard velour material in 61-inch width is also listed at 13 oz/yd². The width-aware formula gives 12.98 oz/yd² before rounding, consistent with the listed 13 oz/yd²; 13 oz/yd² converts to 440.77 GSM.

Using GSM in a Fabric Specification

At Canvas ETC, we treat converted weight as one field in a specification. We also identify material, width, weave, finish or coating, and intended end use. Those fields separate fabrics that carry the same nominal area weight but use different fibers or constructions. Material Cotton, linen, polyester, nylon, or a blended construction. Weight or denier Use oz/yd² or GSM for area weight. Use denier for yarn linear density. Width Record the usable or finished width that applies to the purchase. Weave State the fabric construction, including duck or ripstop where relevant. Finish or coating Name wax, vinyl, priming, water-repellent treatment, or another supplied finish. End use Match the specification to bags, covers, artist canvas, marine work, awnings, apparel, or another defined application.

Our catalog examples show how the same unit conversion sits beside other specifications. The 10.10 oz Army Duck canvas in 37-inch width converts to 342.45 GSM, while the 10 oz unprimed linen art canvas in 88-inch width converts to 339.06 GSM. The linked titles identify different fabric categories and widths. The 18 oz black vinyl polyester in 61-inch width converts to 610.30 GSM, and the 24 oz #4 dyed cotton fabric in 60-inch width converts to 813.74 GSM.

These calculations translate the area weights stated on the linked product pages. They do not state current availability or replace a current product specification or lot test. We check the product page before a production decision.

What GSM Does Not Tell Us

GSM states nominal mass per square meter. Equal GSM values do not establish equal thickness, yarn size, weave, coating, hand, or tested performance. We keep those attributes separate when we compare textiles.

For deeper material context, we maintain separate references for duck canvas weights and linen fabric weights and GSM.

Common Oz to GSM Conversion Errors

• Using a bare ounce value: confirm that the source means ounces per square yard, not fluid ounces, total mass, or ounces per linear yard.
• Ignoring width: an ounces-per-linear-yard value needs finished width before it can become an area weight.
• Rounding too early: retain 33.90575 through the calculation and round the final display value.
• Treating GSM as thickness: record thickness separately when the application needs it.
• Equating denier with GSM: denier describes yarn linear density, while GSM describes fabric area weight.
• Using a converted catalog number as a test report: confirm the current product specification when tolerances affect purchasing or production.

Oz to GSM Questions

How many GSM is 1 oz/yd²?

One ounce per square yard equals 33.90575 grams per square meter. Rounded to two decimal places, 1 oz/yd² is 33.91 GSM.

What is 300 GSM in oz/yd²?

We divide 300 by 33.90575. The result is 8.85 oz/yd² when rounded to two decimal places.

What is 7 oz/yd² in GSM?

We multiply 7 by 33.90575. The result is 237.34 GSM when rounded to two decimal places.

What is 8 oz/yd² in GSM?

We multiply 8 by 33.90575. The result is 271.25 GSM when rounded to two decimal places.

Source and Calculation Note

• Conversion authority: National Institute of Standards and Technology, NIST Guide to the SI, Appendix B.8.
• Calculation method: multiply or divide by 33.90575; retain the factor through the calculation; display results to two decimal places.
• Scope: area-weight conversion only. Product suitability also depends on the full textile specification.

We use the converted number to narrow a specification, then check material, width, weave, finish or coating, and end use before a production decision.
