The decision between Cordura vs. Canvas Duck relies on specific failure modes. Cordura (Nylon 6.6) is a specialized thermoplastic designed for maximum abrasion resistance and water repellency, making it the superior choice for backpacks and lightweight tactical gear. Canvas Duck (Cotton), specifically tight-weave varieties with plied yarns, excels in heat resistance (it does not melt) and breathability, making it the mandatory choice for welders and heritage workwear. Choose Cordura for weight savings; choose Canvas Duck for fire safety.
For “Buy It For Life” (BIFL) gear applications, selecting the correct textile requires understanding the mechanical tradeoffs between Cordura Nylon and Cotton Canvas Duck. This comparison excludes generic polyester canvas and low-denier nylon, focusing strictly on INVISTA Cordura® and Plied-Yarn Cotton Duck based on 2024 ASTM D4157 testing standards.

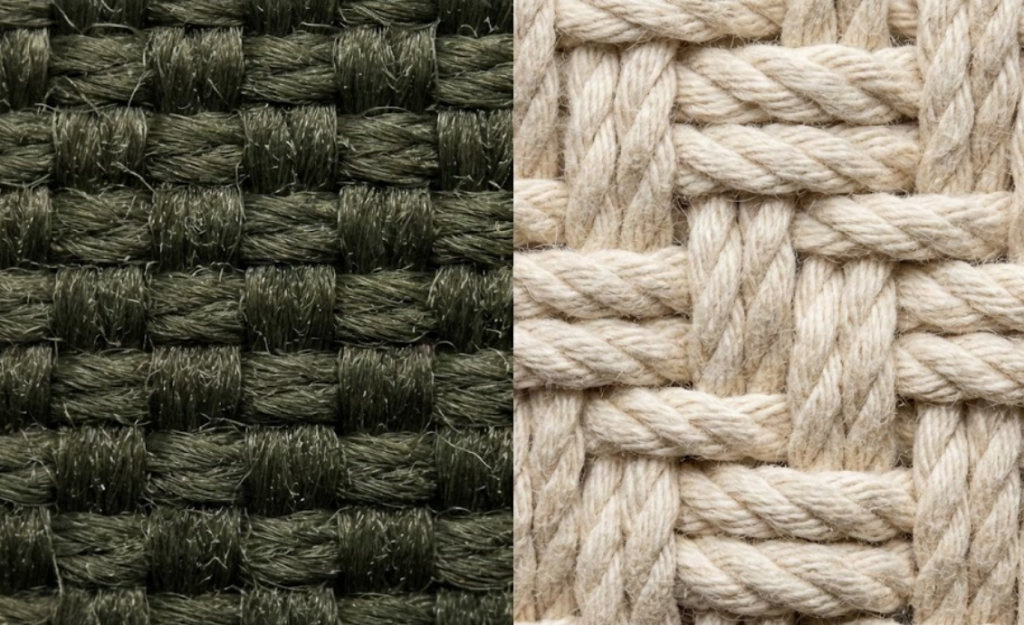

To accurately compare performance, we must first define the physical structure of the weave. Consumers often mistake standard canvas for Duck, but Canvas Duck possesses a distinct mechanical structure that separates it from generic cotton fabrics. Similarly, Cordura is a specific formulation of nylon, not a generic synthetic.
Cordura refers to a high-tenacity air-jet textured nylon 6.6 filament yarn. Invista, the parent company, engineered this fiber to solve the “plastic” feel of standard nylon. By texturizing the filament, the surface area increases, creating a matte finish that provides grip and drastically higher abrasion resistance than standard ballistic nylon.
Duck Cloth derives its name from the Dutch word doek. Unlike plain canvas, which may use single yarns, Cotton Duck utilizes plied yarns (two yarns twisted together) in both the warp and weft directions. This “2×2” construction creates a dense, mechanically locked surface that resists water penetration and physical stress better than single-fill canvas.
Users often conflate “strength” with a single metric. In textile engineering, we measure strength through two distinct axes: Abrasion Resistance (rubbing against a surface) and Tear Strength (resisting a puncture or rip).
In laboratory settings utilizing the Wyzenbeek Abrasion Test (ASTM D4157), Cordura consistently outperforms cotton. A 1000 Denier Nylon Black fabric typically withstands over 300,000 double rubs before failing. In contrast, standard cotton canvas typically withstands 15,000 to 50,000 double rubs.
This disparity makes Cordura the logical choice for motorcycle gear or luggage bottoms that frequently slide across concrete or asphalt. The nylon filaments slide rather than break, whereas cotton fibers eventually grind away under friction.
While Cordura wins on abrasion, heavy-duty Duck excels at resisting snags. The extremely dense weave of a Heavy Duty Canvas Duck Fabric #1 (approx. 18oz) creates a barrier that deflects sharp objects. Construction workers and tradesmen often prefer Duck because a nail or sharp metal edge will slide off the smooth cotton surface, whereas it might snag and pull the filament of a textured nylon fabric.
The environment where the fabric operates dictates the material choice. Safety factors such as melting points are critical for industrial applications.
Yes, Cordura melts. As a thermoplastic, Nylon 6.6 has a melting point of approximately 255°C (491°F). If exposed to welding slag, grinding sparks, or open flame, the fabric will melt and can fuse to the wearer’s skin, causing severe burns.
Canvas Duck is cellulosic and non-thermoplastic. It chars when exposed to flame but does not melt. The degradation (char) point begins at approximately 205°C (400°F), with an auto-ignition temperature near 400°C (750°F). This characteristic makes Duck the only safe option for welders, blacksmiths, and campers working near open fires. Unlike Cordura, Duck will not become a molten hazard.

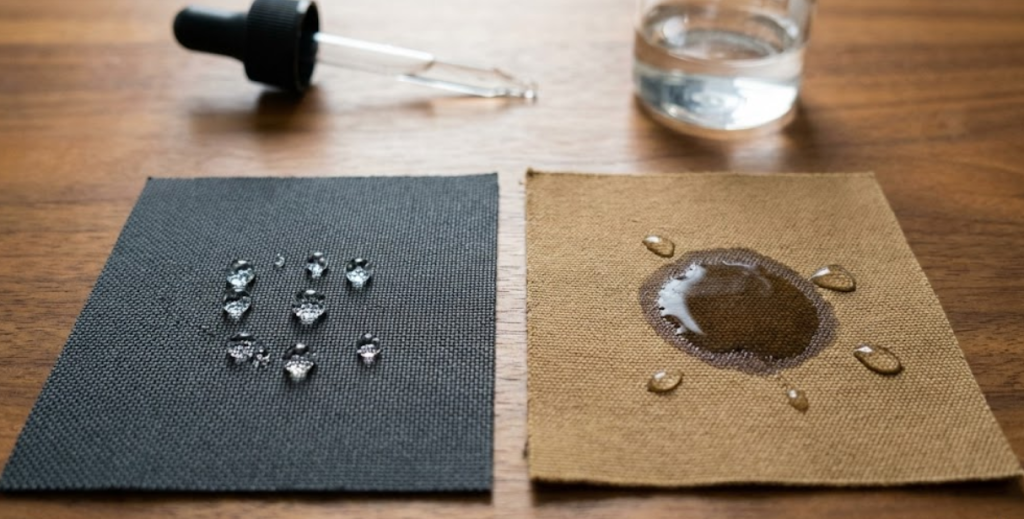

Cordura is naturally hydrophobic (water-repelling). Manufacturers almost always treat it with a Durable Water Repellent (DWR) finish and a Polyurethane (PU) back-coating. This combination makes 500 Denier Cordura effectively waterproof for backpacks and rain gear.
Canvas Duck is hydrophilic (water-absorbing). However, the plied yarn construction allows the fibers to swell when wet, sealing the gaps in the weave. To achieve true water resistance, Duck requires treatment. Applying wax transforms the material into Waxed Canvas Army Duck, which repels water while retaining breathability.
Longevity involves not just the fabric’s survival, but how it looks and feels after years of service.
Canvas Duck develops a patina similar to leather. Sunlight fades the dye, and creases form unique wear patterns that many users find aesthetically pleasing. A well-worn canvas bag signals heritage and longevity.
Cordura does not develop a patina. Instead, over 10 to 15 years, the PU coating on the reverse side may undergo hydrolysis (chemical breakdown due to moisture), leading to peeling and a distinct “old plastic” odor. The surface may eventually pill or “fuzz” from abrasion, but it generally retains its synthetic look until failure.
Heavy Duck requires a break-in period. A new item made from Dyed Duck Numbered Canvas will feel rigid. Over time, the cotton fibers relax and soften. If you need to accelerate this process, you can follow specific techniques to make the fabric pliable immediately.
Conversely, 1000D Cordura remains relatively stiff and abrasive throughout its life. It is known to be abrasive to other clothing; wearing a Cordura backpack over a delicate merino wool shirt can damage the shirt due to the textured nylon acting like fine sandpaper.
The following table organizes the performance metrics of 1000D Cordura against #8 Canvas Duck (18oz) for direct comparison.
| Metric | Cordura (1000D Nylon) | Canvas Duck (#8 / 18oz) | Winner |
| Abrasion (Rubbing) | Extreme (300k+ cycles) | Moderate (High for cotton) | Cordura |
| Tear Strength | High | High (Due to weight/density) | Tie |
| Heat / Fire Safety | Melts (Dangerous) | Chars (Safe) | Canvas Duck |
| Waterproof | Excellent (Coated) | Poor (Unless Waxed) | Cordura |
| Breathability | Low (PU Coated) | High (Natural Fiber) | Canvas Duck |
| Maintenance | Low (Wash & Go) | High (Requires Re-waxing) | Cordura |
| Aesthetic Aging | Technical / Fuzzing | Heritage / Patina | Subjective |
Yes, high-denier Cordura (specifically 1000D) has a textured surface that can be abrasive to softer fabrics. Frequent contact can cause pilling on knitwear or delicate cottons. 500D Cordura is smoother and causes less friction damage to clothing.
Generally, no. Wax formulas are designed to permeate and adhere to natural cellulosic fibers like cotton. Synthetic nylon filaments do not absorb the wax effectively, leading to a greasy surface where the wax flakes off rather than integrating into the weave.
No. Ballistic nylon typically uses a “basket weave” (2×2) and non-textured filament, resulting in a smoother, shinier surface. Cordura uses a plain weave with air-jet textured fibers. While Ballistic nylon has exceptional tear strength, Cordura offers superior abrasion resistance due to its texture.
Material Selection Verdict: Cordura vs. Duck
You are choosing between modern engineering and historical resilience. If your priority is mobility, weight reduction, and water protection, Cordura is the correct technical choice. If your priority is fire safety, breathability, or aesthetic character, Canvas Duck is the superior natural choice.
For projects requiring the highest abrasion resistance for luggage or outdoor gear, we recommend our 1000 Denier Nylon Fabric. For workwear, safety gear, or heritage bags that require breathability and heat resistance, we recommend our Dyed Duck Numbered Canvas.
